Electrical Installation

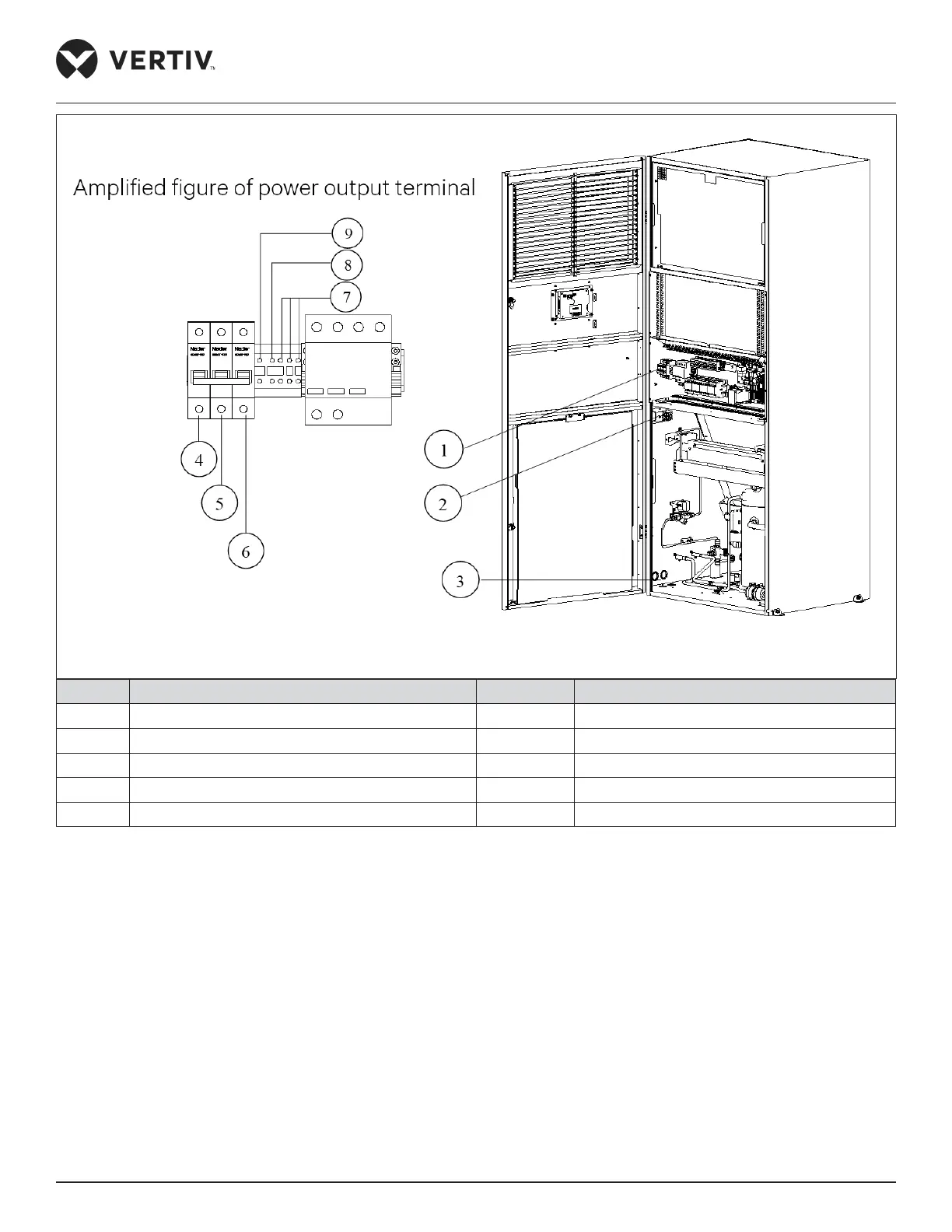

Enlarge view of Power Output Terminal for DM 17 kW
No. Description No. Description
1 Power output terminal 6 C line terminal
2 Cable clamp 7 Outdoor terminal
3 Cable hole 8 N line terminal
4 A line terminal 9 PE terminal
5 B line terminal
Figure 3-2 Power Connection of Outdoor Unit (17 kW)
