4.2 Handling the Unit while Packaged
If possible, transport the unit with a forklift or pallet jack. If that is not possible, use a crane with slings and
spreader bars that are rated for the weight of the unit.
When using a forklift or pallet jack:
• Ensure that the fork length is suitable for the unit length and, if adjustable, spread to the
widest allowable distance that will fit under the skid.
• When moving the packaged unit, lift the unit from the "HEAVY SIDE" of the unit, and do not lift
the unit any higher than 6in.(152mm). All personnel except those moving the unit must be
kept or more from the unit while it is being moved.
• If the unit must be lifted higher than 6in.(152mm), all personnel not directly involved in
moving the unit must be 20ft (5m) or farther from the unit.
• Always refer to the location of the center-of-gravity indicators when lifting the unit, see Figure
4.1 below.

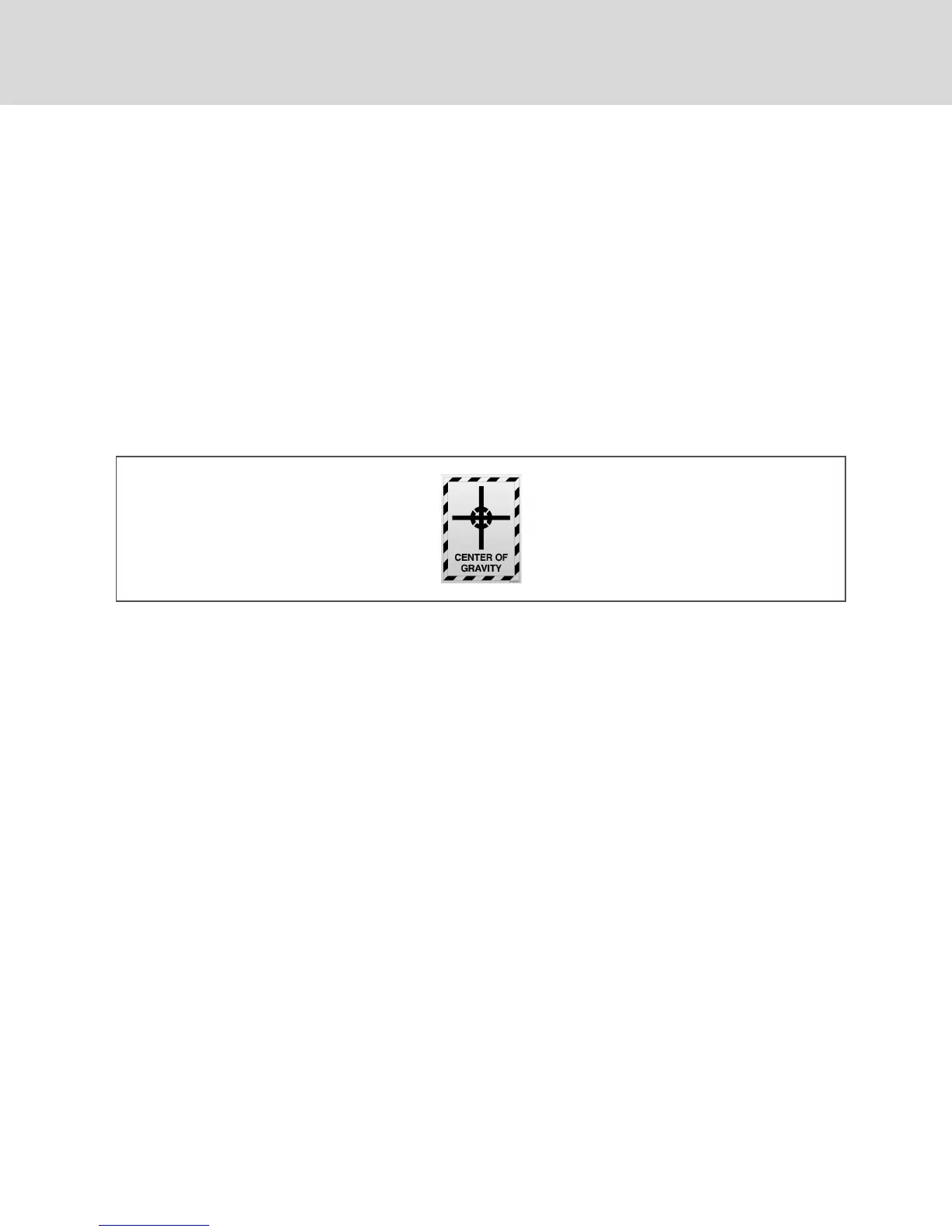

Figure 4.1 Center-of-gravity indicator
