3. Referring to Figure 4.5 below:
• Align the slings as described previously.
• Use spreader bars or equivalent device to ensure proper protection of the unit (Item 1).
• Remove the lag bolts from each bracket located around the base, and remove the
brackets (Item 2).
NOTE: Depending on final installation location, the skid may need to remain under the unit. Therefore,
the lag bolts and brackets would not yet be removed.
• Lift the unit off the skid to an elevation point where the skid is not supporting the weight
of the unit and remove the skid from under the unit (Item 3).

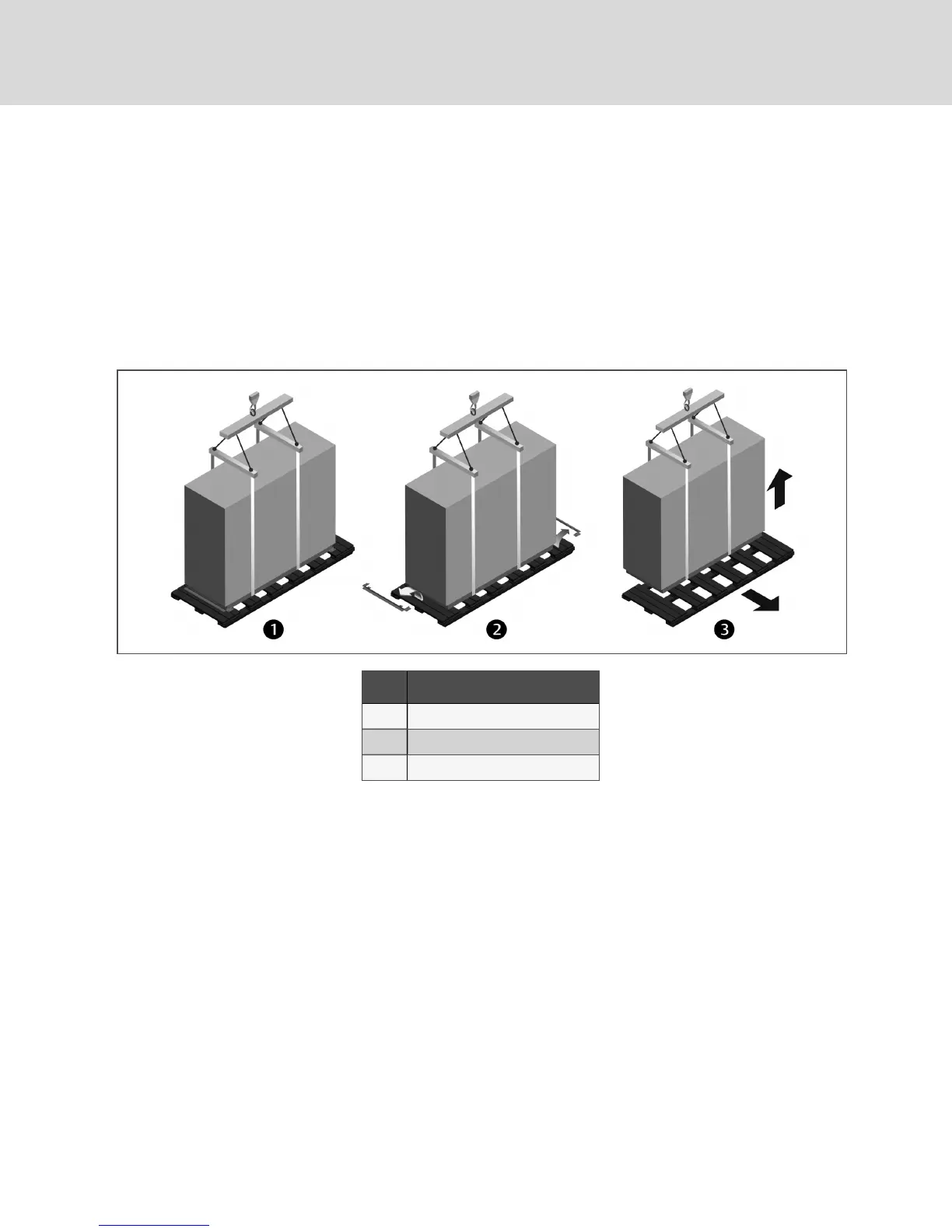

Figure 4.5 Moving unit with rigging
Item Description
1 Spreader bars and rigging on unit.
2 Remove lag bolts and brackets.
3 Lift the unit and remove the skid.
4.3.3 Moving the Unit to the Installation Location Using Piano Jacks
Refer to Figure 4.6 on the facing page.
1. With the unit elevated, position piano jacks at each end of the unit.
2. Lower the unit to a height suitable for the piano jacks, place protective material between the
unit and the piano jacks and straps.
