Vertiv Liebert DSE - Removing the Unit from the Skid Using Rigging

3. Remove the lag bolts from each bracket located around the base, and remove the brackets.
4. Lift the unit off the skid to an elevation point where the skid is not supporting the weight of the
unit and remove the skid from under the unit.

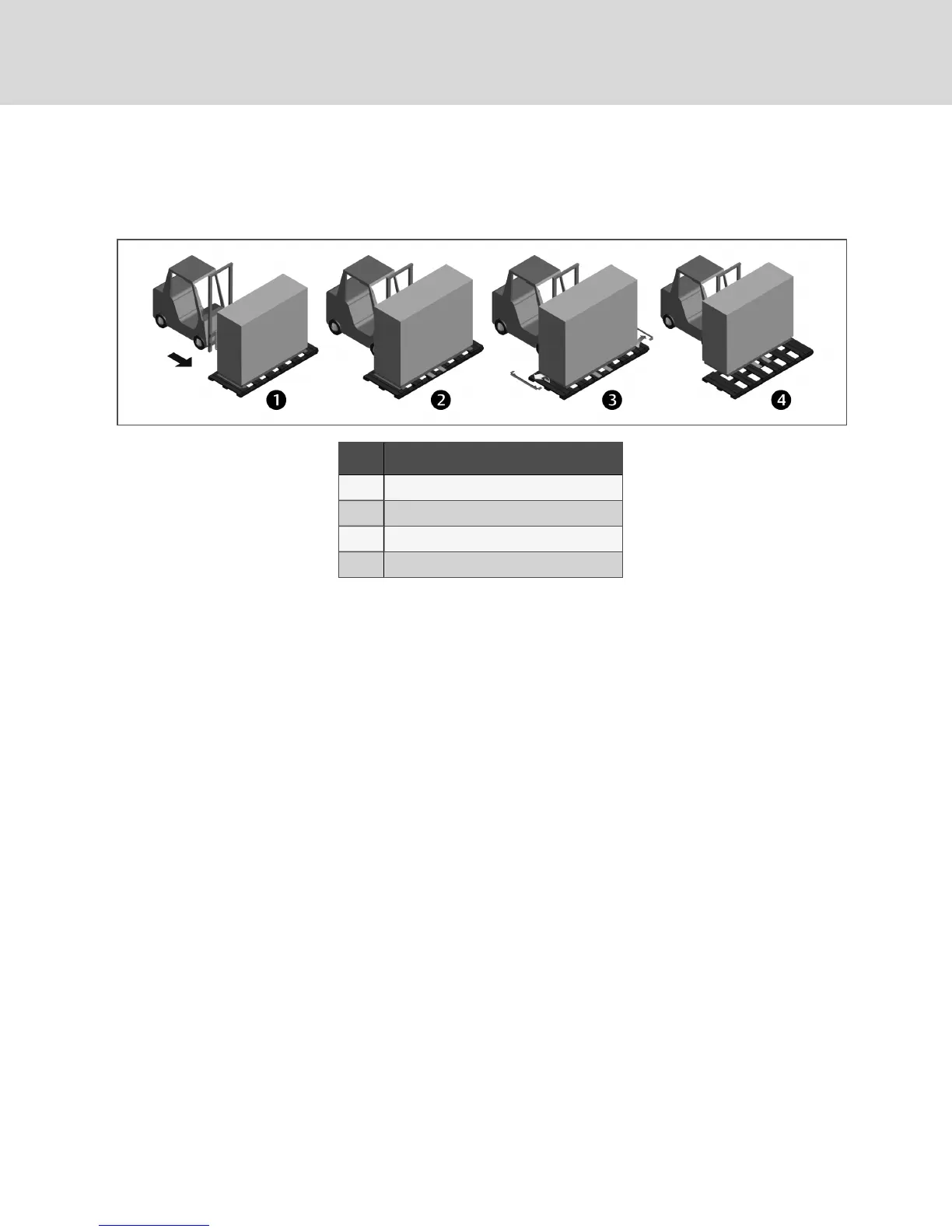

Figure 4.3 Removing from skid with a forklift
Item Description
1 Align forklift with front or rear of unit.
2 Insert tines completely under base of unit.
3 Remove lag bolts and brackets
4 Lift unit and remove skid.
4.3.2 Removing the Unit from theSkid Using Rigging
1. Use the center-of-gravity indicators on the unit panels to determine the position of the slings.
• The slings shall be equally-spaced on either side of the center-of-gravity indicator
2. Place the slings and between the bottom rails of the unit and the skid as shown in Figure 4.4
on the facing page.
NOTE: Unit is shown without packaging. These instructions may be followed with or without the outer
packaging in place.
