3. Position the lifting device so that it lines-up with the EC-fan assembly.
NOTE: A minimum clearance of 36 in. (914mm) from the bottom of the unit to the topof the plenum is
required for component access.
4. Using the handles on the EC-fan assembly, carefully lift the assembly over the hinge along the
top of the unit, and slide the assembly onto the lifting device, Figure 10.10 below.
5. Use the lifting device to lower the EC-fan assembly for transport to service or maintenance
area.

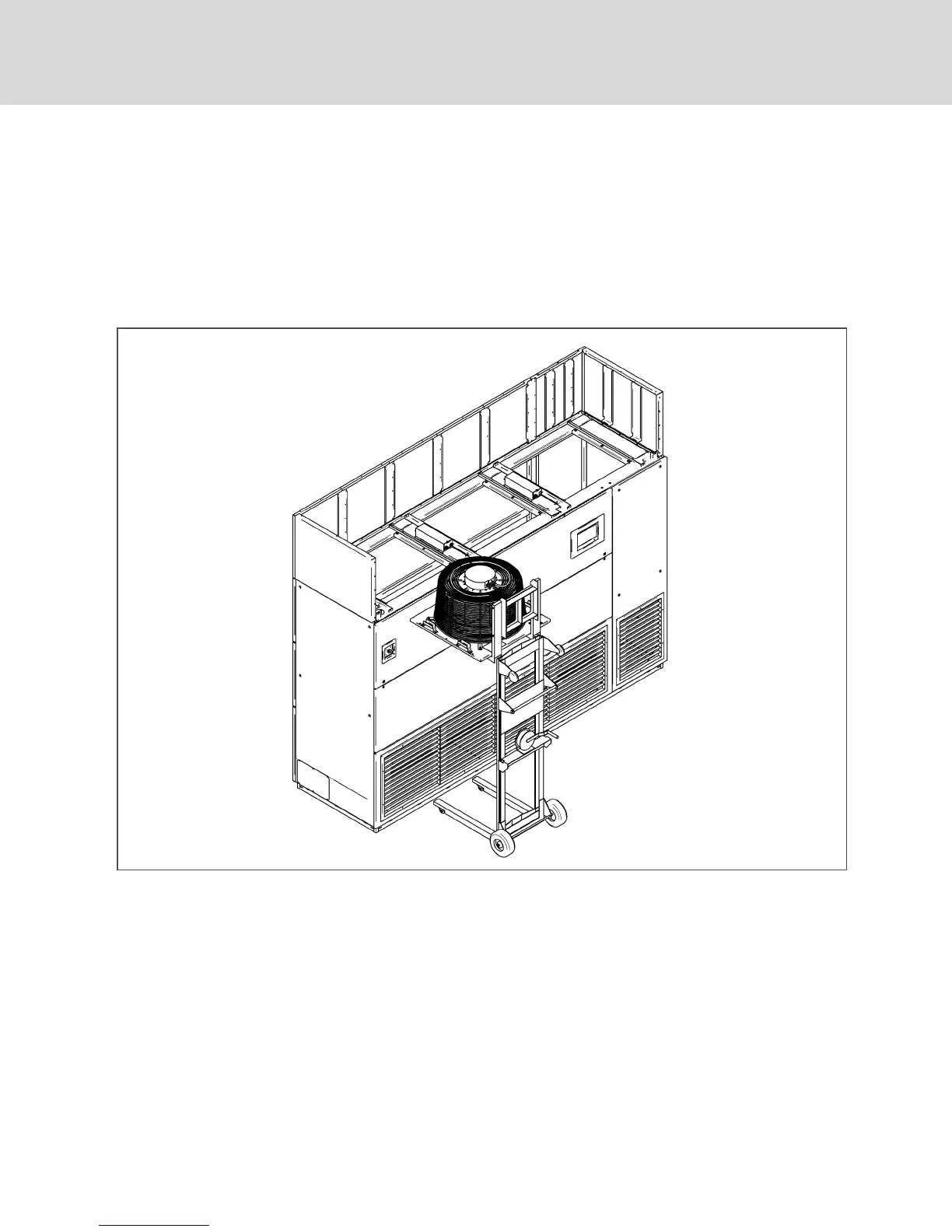

Figure 10.10 EC-fan assembly moved onto lifting device
