| Liebert® EXL
™
S1 Touchscreen Control User Manual | 10

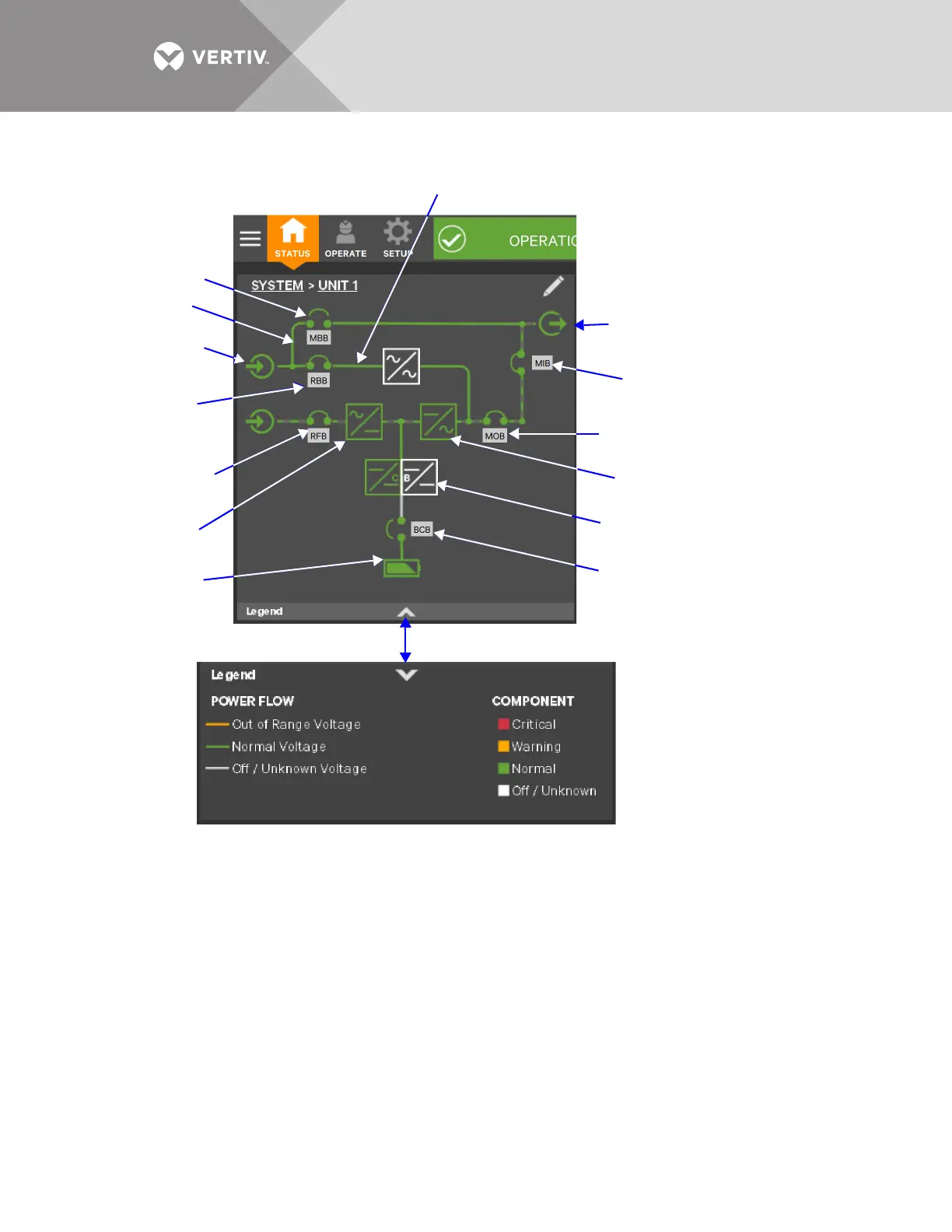

Figure 6 Mimic display, normal operation, default view/unit view
Output Power
(interactive)
Input Power
(interactive)
Internal Static Bypass
(interactive)
DC Source
(Batteries)
(interactive
Rectifier
Feed
Touching the arrowhead reveals the
Maintenance
Bypass
Breakers in a system are
determined during setup and can
be installed or removed by
Service.
Breakers shown are:
BCB: Battery Isolation Switch
BIB/RBB: Bypass Isolator
RFB: Input Isolator
MBB: Maintenance Bypass
Inverter
Charger/Boost
er
Battery Cabinet
Remote Back-Feed
Breaker; may be
replaced with
optional Back-Feed
Maintenance Isolation
Module Output
Rectifier
(interactiv
Maintenance
Bypass Path
