Vertiv
™
|
Liebert® EXL
™
S1 Touchscreen Control User Manual
|
46
Figure 4
7
UNIT ST
A

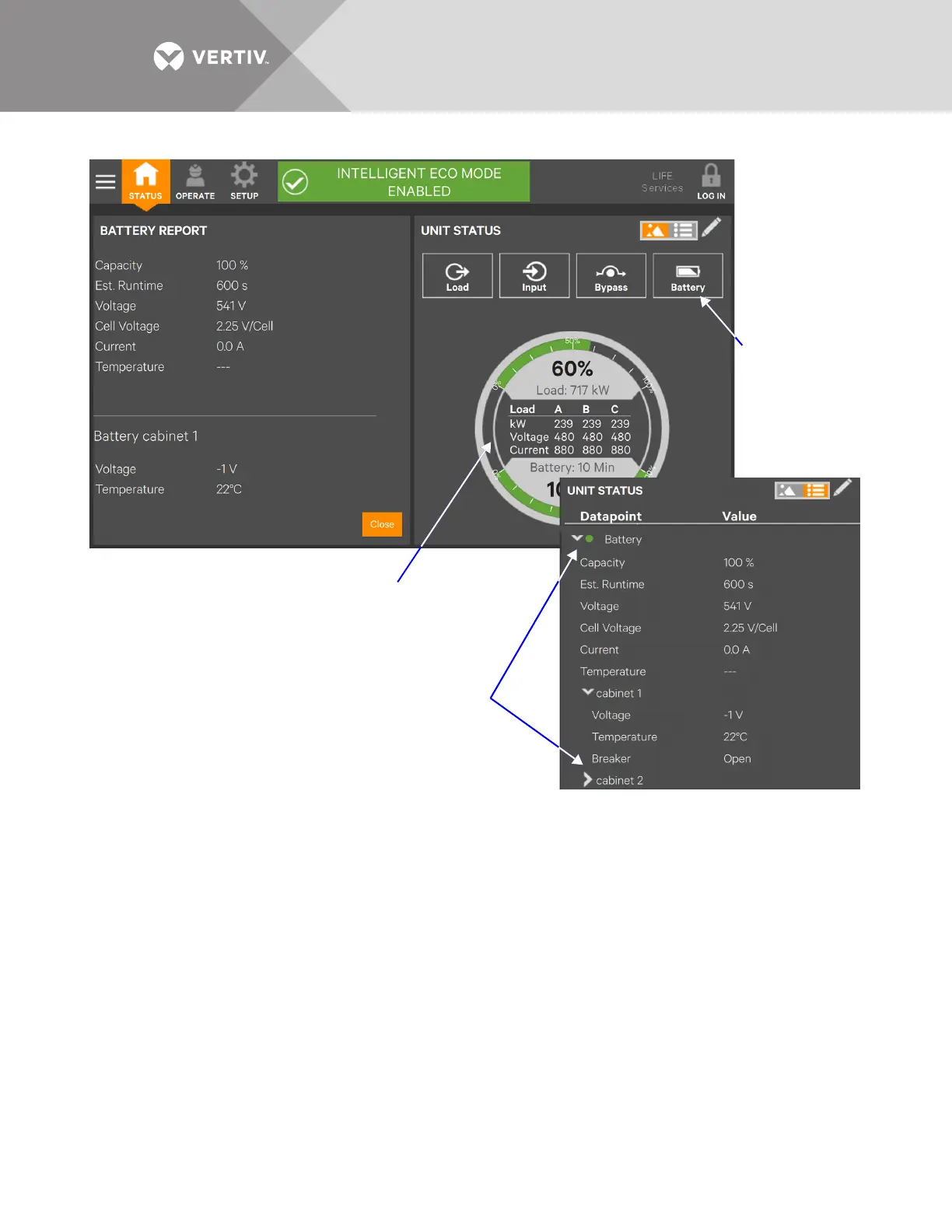

TUS—Battery details
GRAPHIC VIEW
TEXT VIEW
Some data in the pane at left
is summarized in the Status
Touch the
Battery icon
to
reveal the
Data in the colum
ns in the graphic
view is visible in the text view by
expanding the parameter. Here,
BATTERY has been expanded to
show overall data an
d information for
Cabinet 1.
51
53
Table of Contents
Default Chapter
3
Table of Contents
3
1 Introduction
7
2 Navigating through the Touchscreen Control Panel
9
Restrict Physical Access with Barriers or Set Log-In Codes
9
Touchscreen Control Panel Components
11
Figure 3 Interface Overview-STATUS Screen; Graphic Display
11
Figure 4 Control Display by Access Level-If Pin's Are Required
12
Context Menus
13
Figure 5 Context Menus
13
SYSTEM PANE-MIMIC Display Components
15
Figure 6 MIMIC Display, Normal Operation, Default View/Unit View
16
Figure 7 MIMIC Display, Normal Operation, System View
17
UNIT STATUS Pane Components
17
Figure 8 UNIT STATUS Pane Components-Graphic Display
18
Figure 9 UNIT STATUS Pane-Load Details; Graphic Display
18
Figure 10 UNIT STATUS Pane-Input Details; Graphic Display
19
Figure 11 UNIT STATUS Pane-Bypass Details; Graphic Display
19
Customizing the Display
20
Figure 12 UNIT STATUS Pane-Battery and Cabinet Details; Graphic Display
20
Figure 13 UNIT STATUS Pane-Environmental Details; Graphic Display
20
Figure 14 Customize the Display
22
Figure 15 Set Number of Panes and Choose Data
23
Remove a Layout
24
Using the Edit Icon to Customize Layout
24
Figure 16 Edit UNIT STATUS Panel
25
Edit the UNIT STATUS Panel with the Edit Icon
26
Figure 17 Change Panel Content
26
Figure 18 Resize, Remove or Rearrange a Panel
26
Figure 19 Edit UNIT STATUS Panel
27
Setting Date, Time and Time Zone
28
Setting DISPLAY PROPERTIES
28
Table 1 Available Display Properties by Access Level if Pin's Are Required
28
Figure 20 Date and Time Settings
29
Figure 21 Time Zone Drop-Down Menu
30
Figure 22 Change the Date
30
Changing Date, Time and Measurement Formats
31
Figure 23 Change the Time
31
Change the Date Format
32
Change the Measurement System
32
Change the Time Format
32
Create or Modify Custom Labels
32
Figure 24 Date/Time Format and Measurement System Choices
32
Figure 25 CUSTOM LABELS Page
33
Table 2 Additional Custom Label Choices for Settings
33
Table 5 Table
33
Figure 26 Custom Labels for Network Interfaces
34
3 Operation
35
Log in to the Touchscreen Control Panel
35
Figure 27 Set a PIN
35
Operator Controls
36
LIFE™ Services
36
Figure 28 Log in Screen
36
OPERATE Menu Commands
37
OPERATE Menu-Silence an Alarm
37
Figure 29 OPERATE Function Menu Screen
37
OPERATE Menu-Inverter on
38
Figure 30 Inverter on Command, Single UPS Configuration
38
Figure 31 Inverter on Command, Parallel UPS Configuration
38
OPERATE Menu-Inverter off
39
Figure 32 Inverter off Command, Single UPS Configuration
39
Figure 33 Inverter off Command Inhibited
39
Figure 34 Disable Inhibit Manual Bypass Overload Transfer Command
40
Figure 35 Inhibit Manual Bypass Overload Transfer Command Disabled
40
Figure 36 Bypass Overloaded, Connected Equipment Unprotected
40
OPERATE Menu-Reset Fault
41
OPERATE Menu-Suspended Time Remaining
41
OPERATE Menu-Energy Saving Mode Activation
41
Figure 37 Reset Fault Command
41
Audible Alarm Enabled or Disabled
42
Figure 38 Activating Energy Savings Mode
42
LIFE™ Services-Context Menu and LIFE Services Function Menu
44
Figure 39 LIFE Services Contact
44
Figure 40 LIFE Services-Menus
45
4 Viewing Ups Status
46
Viewing UPS Data with the Status Gauge
46
Figure 41 Default Status Gauge View
46
Figure 42 Access Status Gauge Settings
47
Viewing UPS Data with the Status Panel
48
Figure 43 Status Gauge Settings Options
48
Figure 44 UNIT STATUS-Load Details
49
Figure 45 UNIT STATUS-Input Details
50
Figure 46 UNIT STATUS-Bypass Details
51
Figure 47 UNIT STATUS-Battery Details
52
Figure 48 UNIT STATUS-Environmental Details
53
Logs-Events and Log-In Times
54
Figure 49 View Alarms, Events, Log-Out Times
54
Figure 50 Sorting and Filtering Events
55
Logs-Filtering and Sorting Events
55
Logs-Exporting Event and Audit Logs
56
Figure 51 Exporting Logs
56
5 Viewing Ups Component Status
57
Figure 52 Component Status-STATUS Menu
57
Figure 53 UNIT STATUS-Main Input Details
58
Figure 54 UNIT STATUS Details
59
6 Status Bar Composition
60
Status Bar Messages
60
Table 6 Normal Messages-Green Status Bar
61
Table 7 Warning Messages-Yellow Status Bar
62
7 Liebert® Exl™ S1 Events, Alarms and Faults
66
Table 9
66
Liebert® EXL™ S1 Status Events
66
Table 10 All Liebert® EXL™ S1 Alarms
75
