| Liebert® EXL
™
S1 Touchscreen Control User Manual | 16

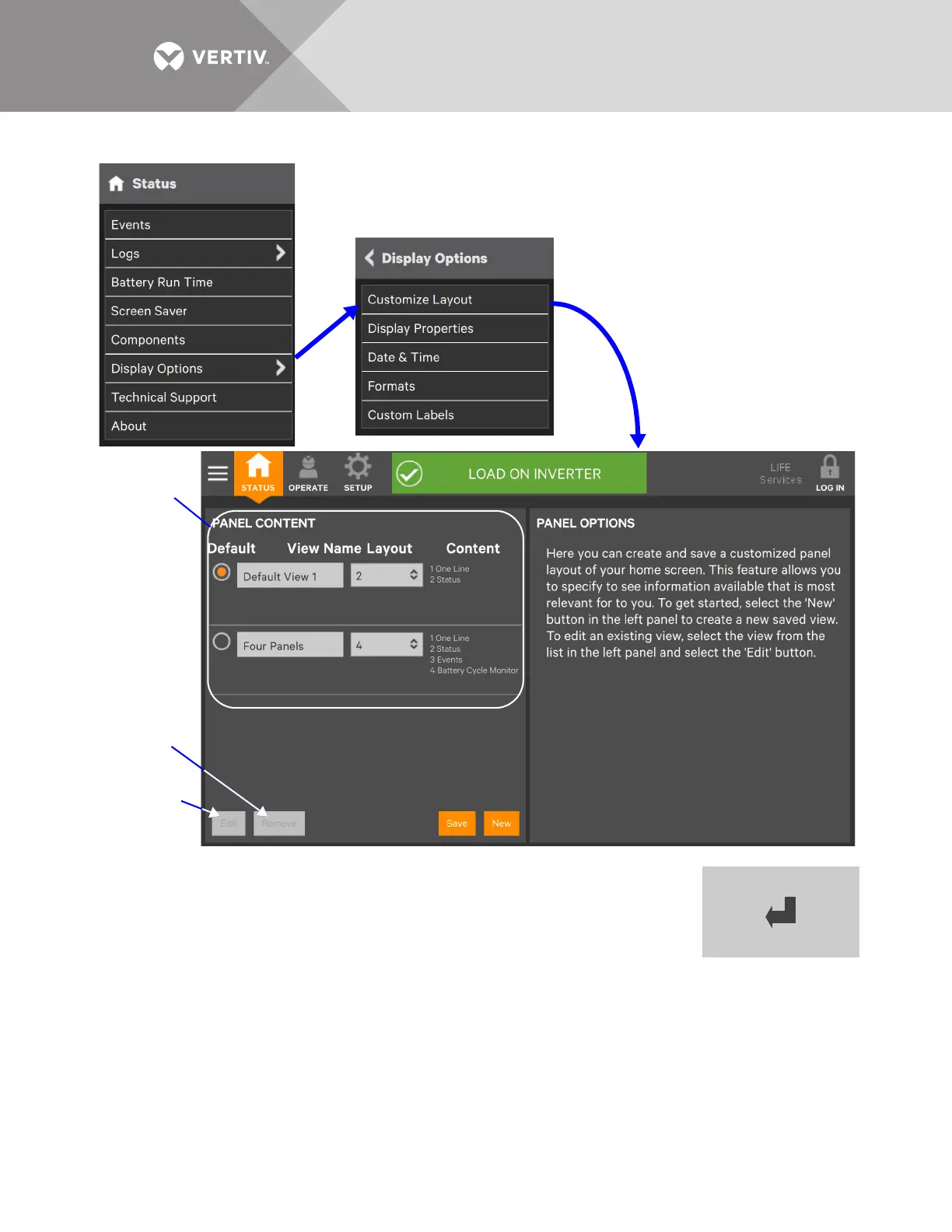

Figure 14 Customize the display
9. Either accept the generated name (New View) or touch the view’s name to
rename it using the on-screen keyboard (maximum length is 15 characters
including spaces). Touch the
Enter key on the on-screen keyboard after
entering the new name.
10. Select the number of panels in the new or edited view from the drop-down list
under the
Layout heading. The maximum is four.
11. Choose the data to be displayed in each pane by touching a choice in the
PANEL OPTIONS pane and then touching the appropriate panel. Repeat for
each panel.
12. Touch the
Save button to keep the changes or touch the Cancel button to exit the screen without saving.
Edit Button
Remove View
Button
Panel shows
view name,
layout and
content.
Enter Key
