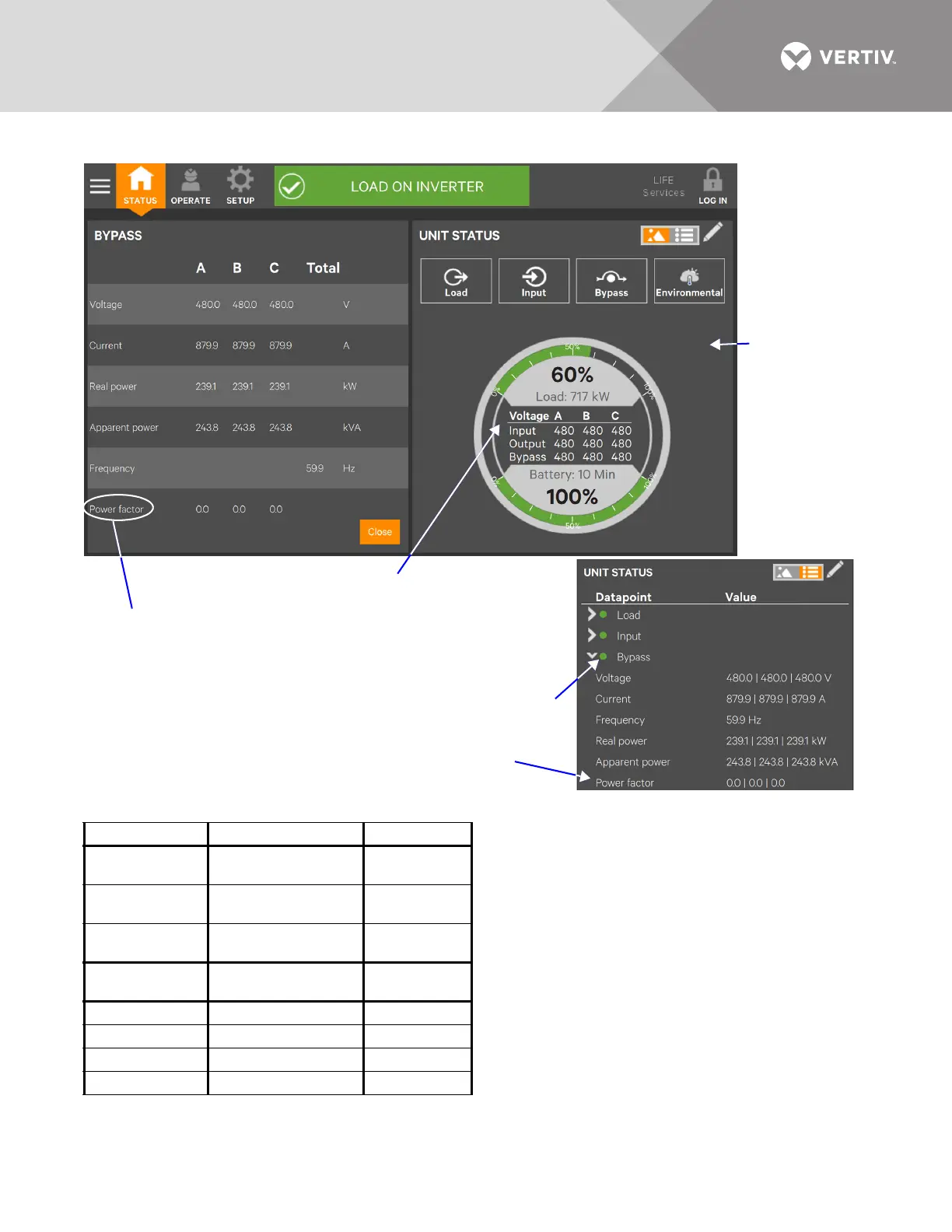

Figure 46 UNIT STATUS—Bypass details
Table 5 Bypass menus
Voltage (L-L) Current Frequency
Voltage (A-B) Current A
Frequency
Total
Voltage (B-C) Current B
Frequency
Total
Voltage (C-A) Current C
Frequency
Total
Real Power Apparent Power
Power Factor
*
Real Power A Apparent Power A PF A
Real Power B Apparent Power B PF B
Real Power C Apparent Power C PF C
Real Power Apparent Power PF
* Power factor is shown only when Dynamic Online Mode is
enabled.
GRAPHIC VIEW
Some data in the columns at
left is summarized in the
Touch the
STATUS icon to
reveal the
Data in the columns in the graphic view is
visible in the text view by expanding the
parameter. Here, BYPASS has been
TEXT VIEW
Power factor is
shown only when
Dynamic Online
Mode is enabled.
Power factor is shown only
when Dynamic Online Mode
