Installation24
2.5. Installing a Power-distribution Box
The 5-kVA to 10-kVA models ship with a removable power-distribution box (POD) installed, see Terminal-block
Connections on page 26, to make the electrical connections to the UPS. For removal, see the appropriate
procedures in Maintenance on page 55.
For 16-kVA to 20-kVA models, the POD ships separately and must be attached to the rear of the UPS. See
Removable Power-distribution Boxes on page 10, for the POD options compatible with your GXT5 model.
NOTE: Do not operate the UPS with the POD removed. To shut o all power to the POD and to the load, utility
input power must be disconnected.
To attach the POD on 16-kVA to 20-kVA units:
1. On the rear of the unit, unscrew the two xing screws from the POD-location cover, see Figure 2-3 below, and
remove the cover.
2. Insert the POD receptacles into the ports, and connect the PP75 terminal.
3. Align the POD with the installation hole, then insert and secure the POD.

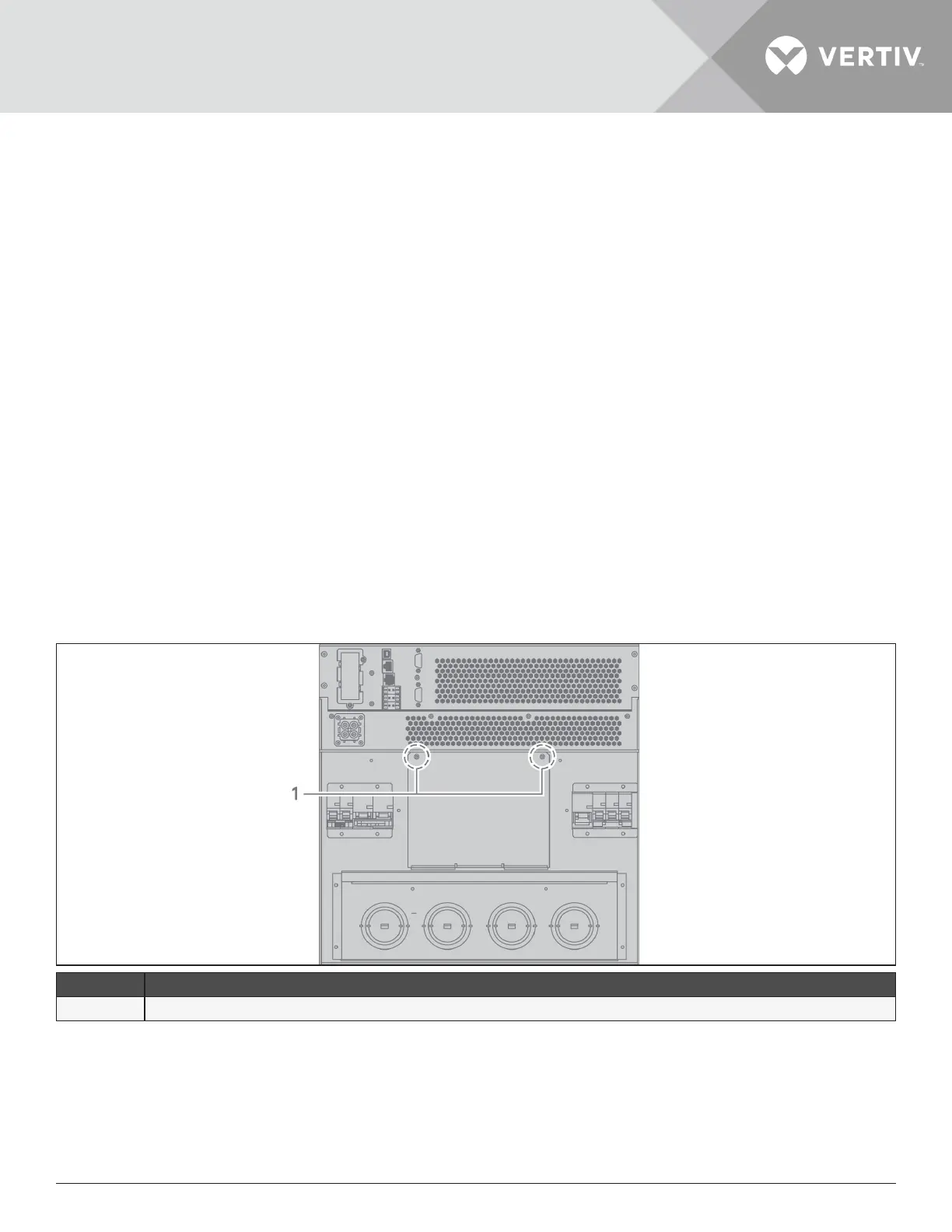

Figure 2-3 POD-location cover on 16-kVA to 20-kVA models
NO. DESCRIPTION
1 Fixing screws

Vertiv LIEBERT GXT5 Series Specifications

General

Model	LIEBERT GXT5 Series
Product Type	UPS
Topology	Double Conversion Online
Display	LCD
Form Factor	Tower, Rackmount
Output Voltage	200/208/220/230/240 VAC
Output Frequency	50/60Hz ±0.1Hz (battery mode)
Typical Backup Time	Varies by model and load
Communication Ports	USB, RS-232
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	0% to 95% (non-condensing)
Dimensions	Varies by model
Weight	Varies by model
Certifications	UL, cUL, CE, RoHS
Battery Type	Valve Regulated Lead Acid (VRLA)
