Installation28
2.6.3. Connecting to Terminal Blocks on 5-kVA and 6-kVA models
These models oer a single type of I/O connection, 1-in 1-out common source. Figure 2-5 below, shows the
terminal block. Refer to the details in Terminal-block Connections on page 26, when making the connections.

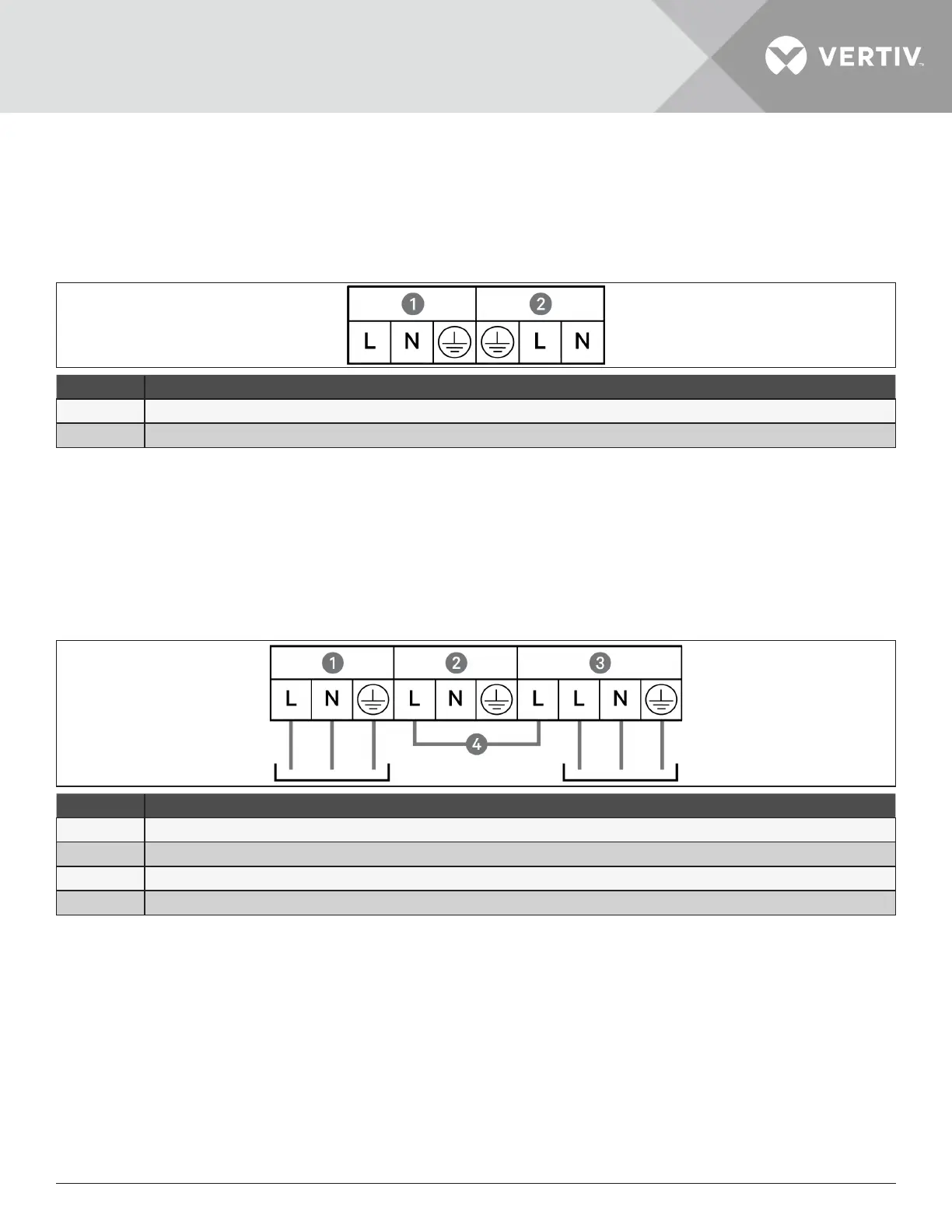

Figure 2-5 Terminal Block, 5-kVA and 6-kVA models
ITEM DESCRIPTION
1 Output
2 Input
2.6.4. Connecting to Terminal Blocks on 8-kVA and 10-kVA models
These models oers two types of I/O connection. A single shorting cable ships installed on the on the terminal
block. Refer to the details in Terminal-block Connections on page 26, when making the connections. Figure
2-6 below, shows the shorting cable installed for a split-bypass connection
Figure 2-6 1-in 1-out Split-bypass Connection, 8-kVA and 10-kVA models
ITEM DESCRIPTION
1 Output
2 Bypass
3 Input
4 Shorting cable (installed at factory)
2.6.5. Connecting to Terminal Blocks on 16-kVA and 20-kVA models
These models oers four types of I/O connection. One shorting cable (W01) ships installed on the terminal block.
Two additional shorting cables are included with the accessories to wire the dierent types. Refer to the details
in Terminal-block Connections on page 26, when making the connections.
• Figure 2-7 below, shows the 3-in 1-out common-source connection.
• Figure 2-8 below, shows the 1-in 1-out split-bypass connection.
• Figure 2-7 below, shows the 1-in 1-out common-source connection.
