Vertiv Liebert XDC User Manual

6. Lift the unit off of the skid to an elevation point where the skid is not supporting the weight of
the unit.
7. Remove the skid from under the unit.
NOTE: Depending on final installation location and the method of moving the Liebert XDC, the skid may
need to remain under the unit.

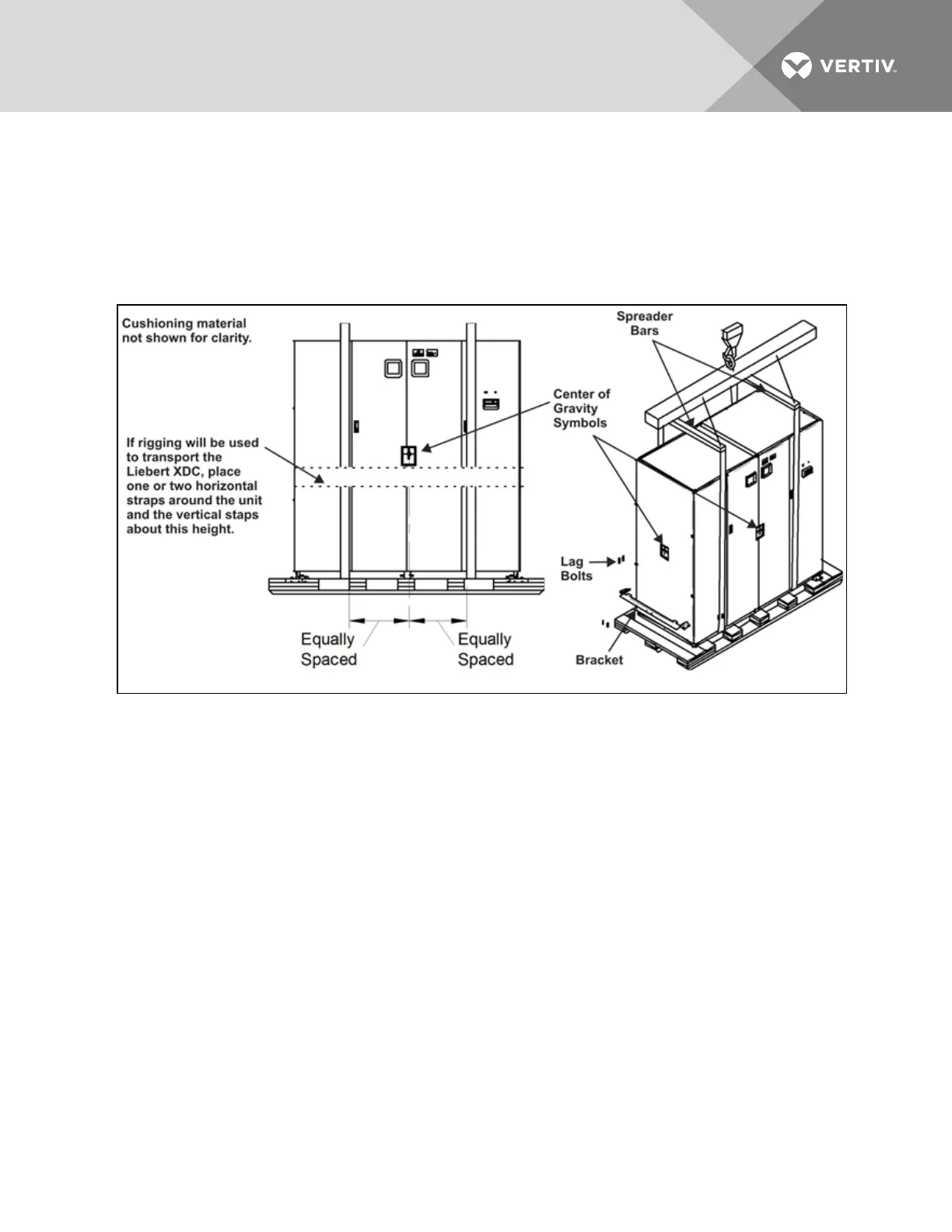

Figure 2.4 Removing the unit from the skid using rigging
2.3.5 Moving the Liebert XDC Using Piano Jacks
1. Elevate the Liebert XDC with a lifting mechanism, such as a forklift or rigging.
1. Position one piano jack at each end of the Liebert XDC.
2. Lower the unit to a height suitable for placing it on the piano jacks.
3. Put protective material between the Liebert XDC and the piano jacks and straps.
4. Secure the Liebert XDC to the piano jacks.
5. Release the the Liebert XDC from the straps securing it to the lifting mechanism and move the
mechanism away from the unit.
Using the piano jacks, at least two properly trained and qualified personnel can move the unit.
Vertiv | Liebert® XDC™ User Manual | 13
