Vertiv Liebert XDC User Manual

DIP Switch and Jumper Settings for remote sensors
The Liebert XDC is shipped with jumpers and DIP switch settings for normal operations. See Figure 3.19
below.

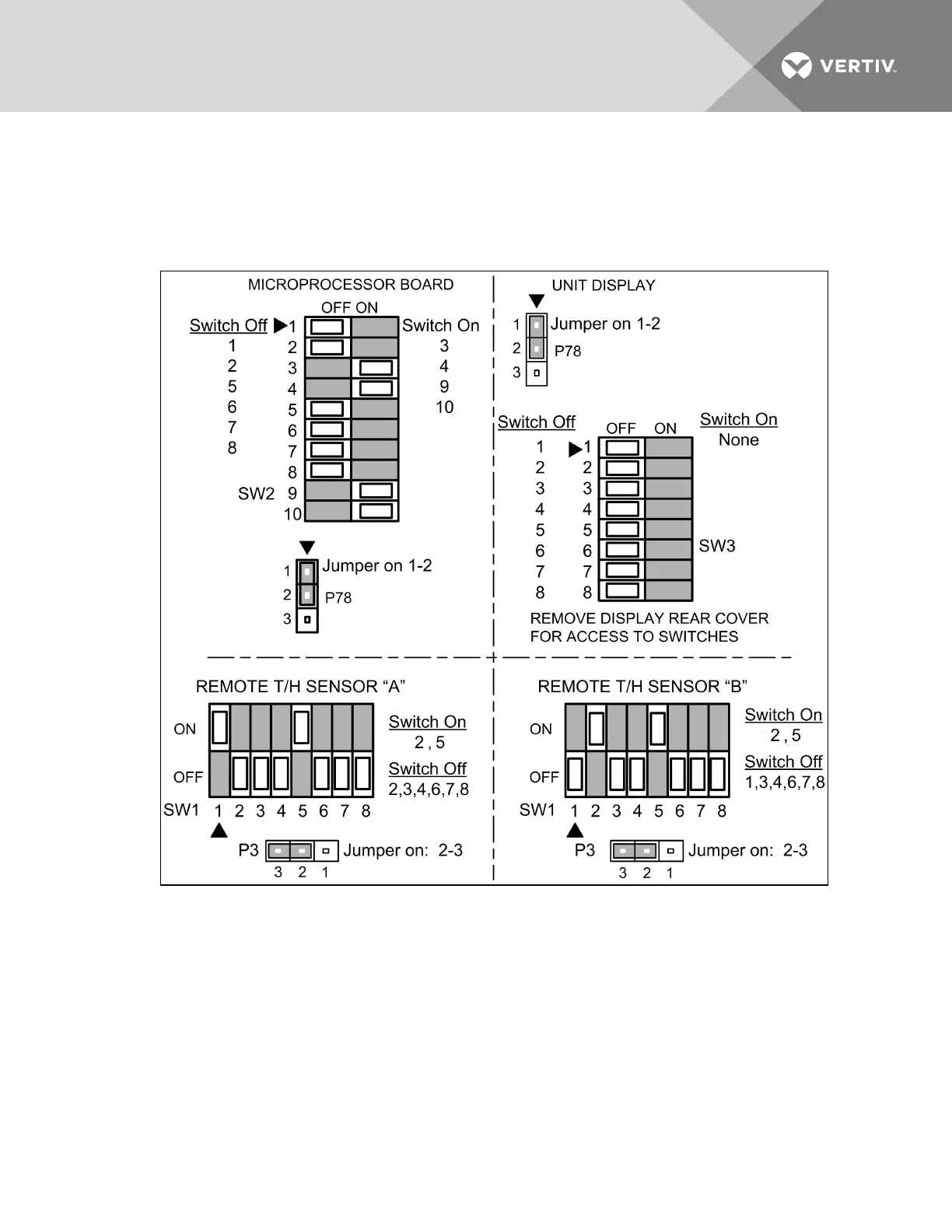

Figure 3.19 DIP switch and jumper settings for remote sensors
3.5 Remote Sensor Installation—Proper Placement
Placement of the two remote temperature/humidity sensors is critical to effective cooling of the
conditioned space.
The remote sensors must be installed in areas where conditions are representative of the space
conditioned by the Liebert XDC. Vertiv recommends installing the sensors in different areas near the
cooling modules served by the Liebert XDC. If the return air side of the primary air mover, such as a
Liebert DS, represents the conditions where the Liebert XD cooling modules are located, one sensor could
be placed there. Vertiv suggests placing the other sensor on the wall opposite the heat load area (see
Figure 3.20 on the facing page for guidance).
