Vertiv Liebert XDC User Manual

Model 60 Hz Charge / Circuit, lb. (kg)
Liebert XDC 160 30.0 (13.2) per circuit
Table 4.15
Indoor water/glycol-cooled module – R-407C refrigerant charge
4.9 System Refrigerant Charges Over 55lb. (24.9kg) Require Additional Oil
4.9.1 Liebert XDC DX R-407C Circuit Volume
NOTICE
Risk of improper lubrication. May cause equipment damage.
Liebert XDCs refrigerant R-407C circuits with refrigerant charges over 55lb. (24.9kg) require
additional oil. See Figure 4.13 below for the amount required for various charge levels.
Once the system has been fully charged with refrigerant, use a hand pump to add the
additional oil at the suction side of the system while the system is running.
The amount of oil added by field service must be recorded on a tag attached at the tandem,
(the amount added along with the date it was added). This will be documented on a tag
located at the tandem compressor and marked “Oil Added Field Service Record.” Refer to the
Liebert XDC user manual, SL-16673, available at www.VertivCo.com.

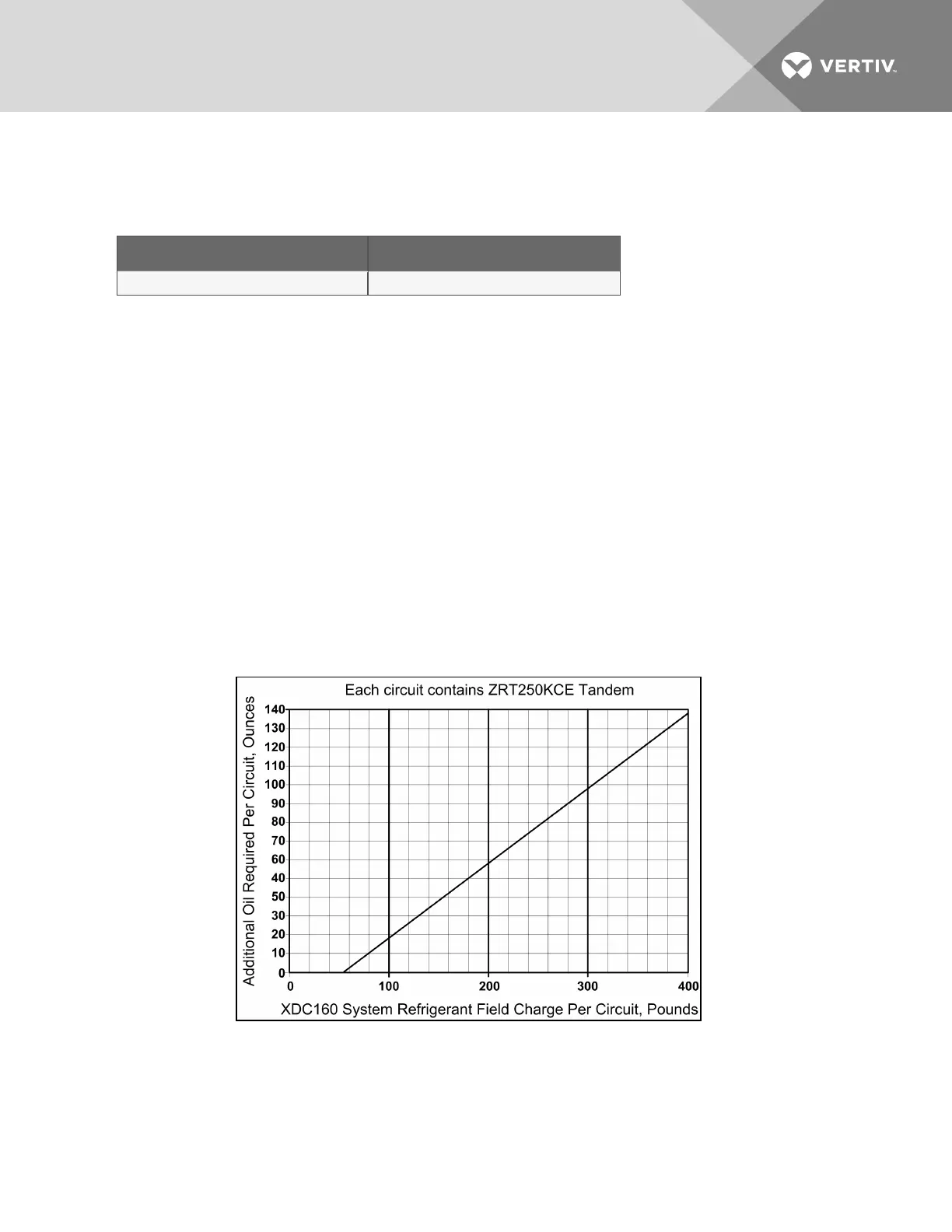

Figure 4.13 Additional oil requirements for refrigerant charge
Vertiv | Liebert® XDC™ User Manual | 57
