NOTE: Changing the time scale eliminates all previous graphical data and the unit will begin recording
new data.

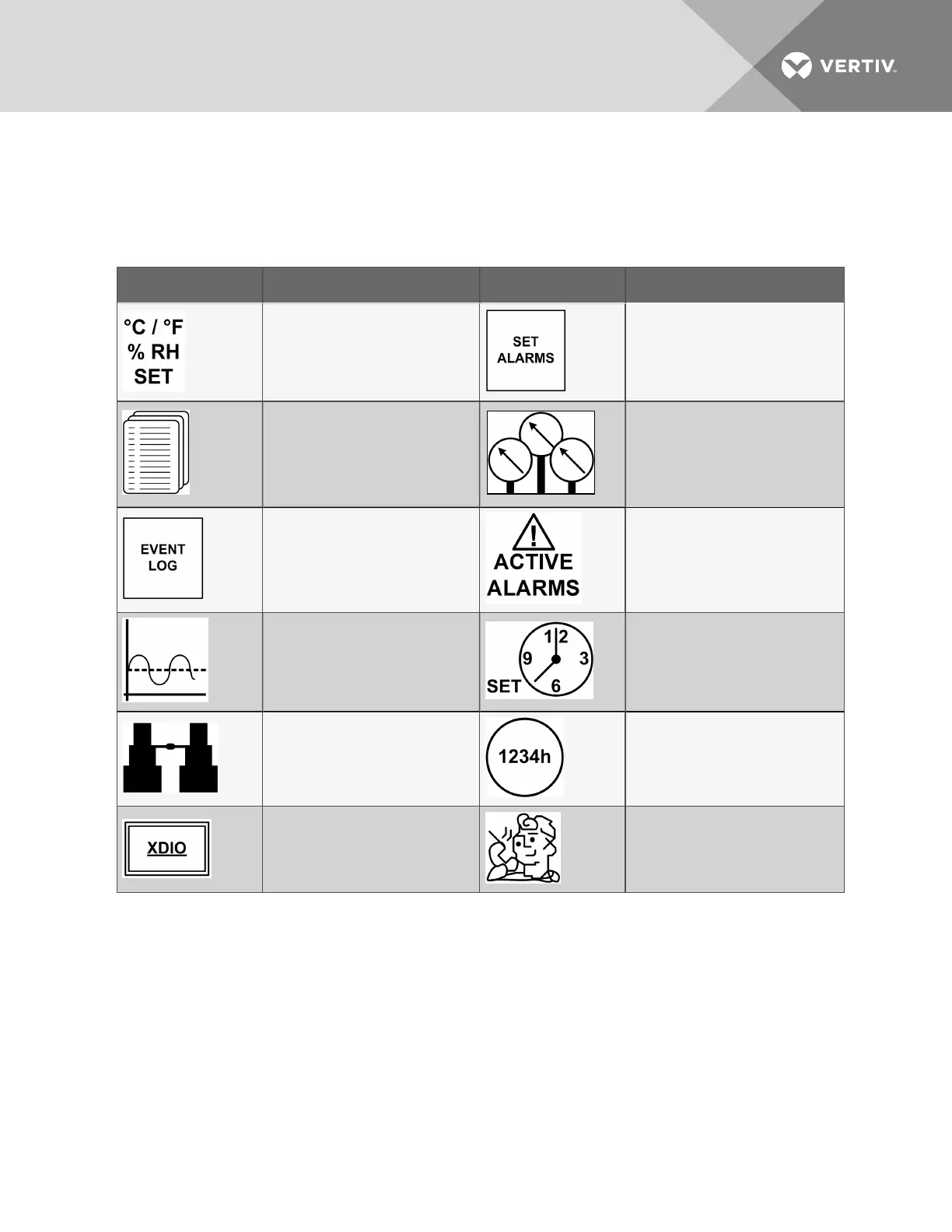

6.7 Liebert iCOM User Menu Icons and Legend
item description item description
Setpoints - View and change operational
setpoints
Set Alarms - Allows user to change
settings for alarms
Spare Parts List - Contains spare parts
available on site
Sensor Data - Shows readings of sensors;
View Only
Event Log - Lists last 400 events and
alarms. View Only
Active Alarms - Lists all current alarms;
View Only
Graphic Data Record - Displays average
temperature from Sensors A and B, the
average dewpoint from Sensors A and B,
the supply refrigerant temperature and the
supply refrigerant control point graphs;
Data is View Only; Display scale is
adjustable
Display Setup - Change settings for
display: language and time
View Network - Shows status of all
connected units; View Only
Total Run Hours - Records the run time of
all components and allows setting of limits
on run time; View Only
XDIO - Displays readings for the individual
smart modules; View Only
Service Contacts - Contains key contact
information for service
Table 6.2 Liebert iCOM User Menu Icons Descriptions
NOTE: Menu shows icons only; text is explanatory and does not appear on the Liebert iCOM display.
