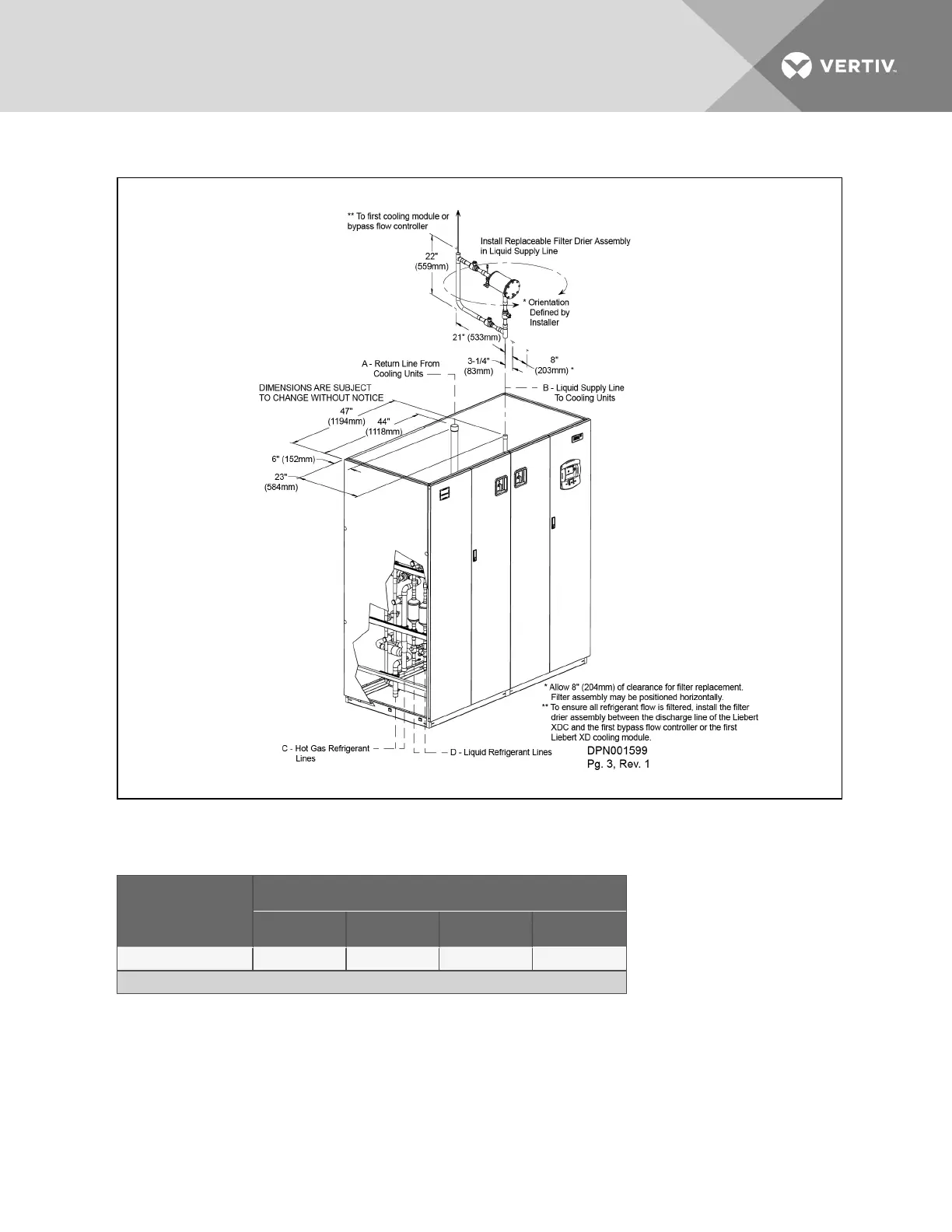

Figure 3.2 Piping locations
50/60Hz
Piping Outlet Connection Sizes, OD Cu, inches
A B C D
XDC160 2-1/8 1-1/8 1-3/8 7/8
Source: DPN001599
Table 3.2
Liebert XDC piping connection sizes
Vertiv | Liebert® XDC™ User Manual | 16
