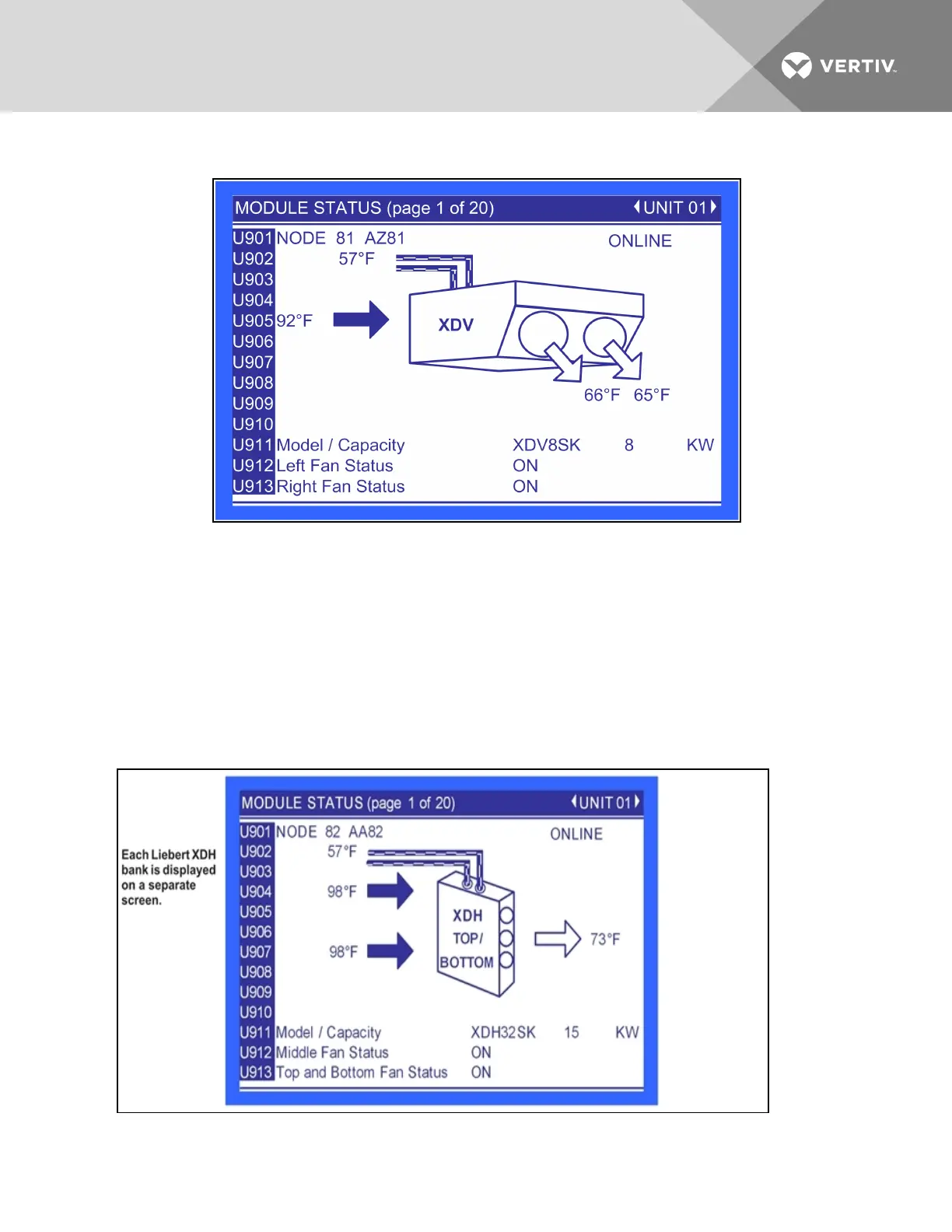

Figure 6.13 Liebert XDV smart module
U908—Displays the temperature of the air leaving the right and left fan of the Liebert XDV.
U905—Displays the temperature of the air entering the Liebert XDV.
U911—Displays the module type and calculated local module capacity; possible module types are
XDV8SK, XDV8SS, XDV8ST, XDV10SK, XDV10SS and XDV10ST.
U912—Displays the left fan status; possible values are ON and OFF.
U913—Displays the right fan status; possible values are ON, OFF and ON ECON. ON ECON indicates that
only one fan is On.
Figure 6.14 Liebert XDH smart module—each bank shown separately
U905—Displays the temperature of the air leaving the Liebert XDH.
