Procedure
1. To modify the shunt parameters, click on the “Modify/View” button for that shunt.

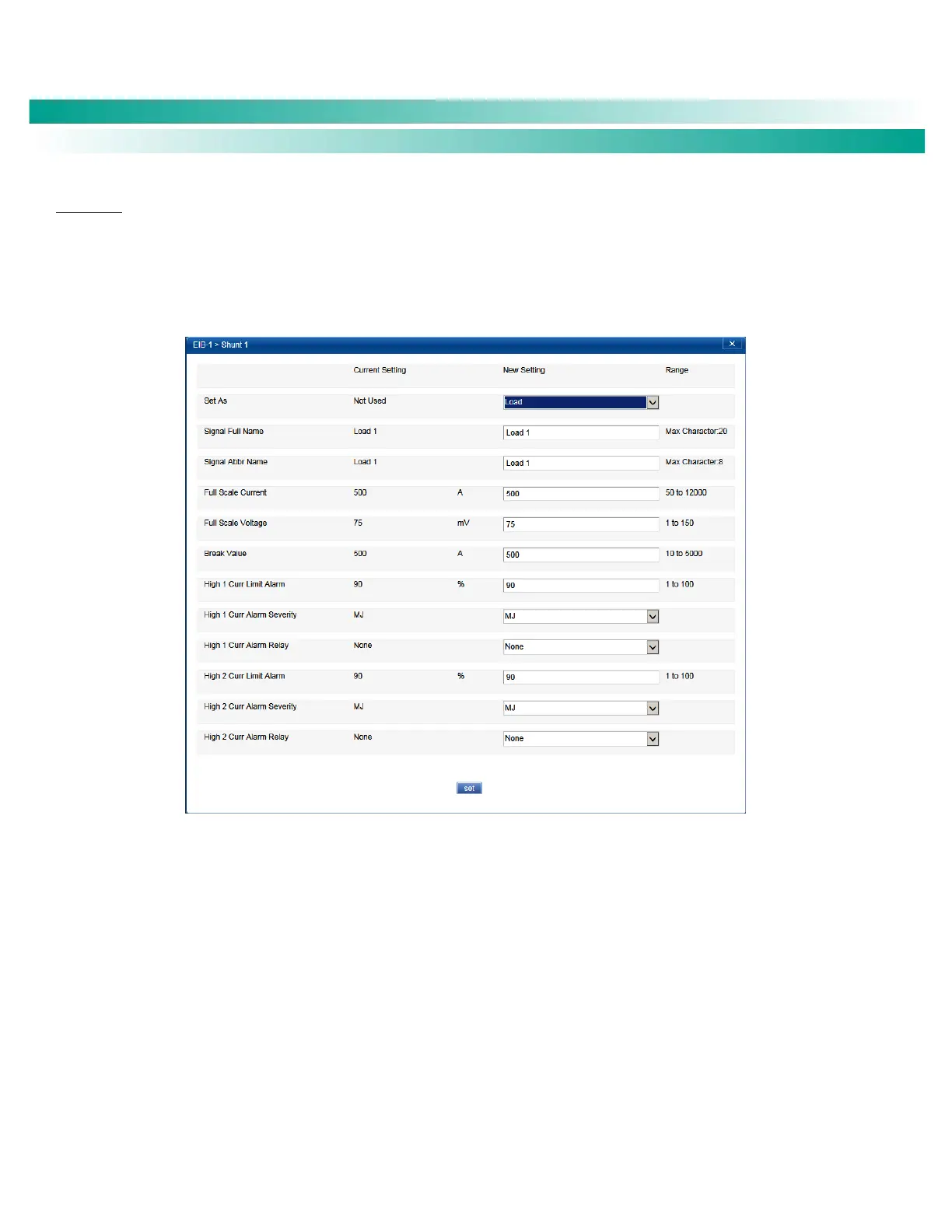

2. The following window opens.
Figure 96. Setting Shunt Parameters
3. Change the following parameters as desired and click on “Set”.
 Set As (Not Used, General, Load, Battery):
o Not Used: Indicates this shunt input is not used.
o General: Indicates the measurement of the shunt will be displayed and will not be added to Total DC Load or Total
Battery Load.
o Load: Indicates the measurement of the shunt will be displayed and added to the Total DC Load.
o Battery: Indicates the measurement of the shunt will be displayed and added to the Total Battery Load and used with
Battery Management.
 Signal Full Name: Name displayed in the Web Interface menus.
 Signal Abbr Name: Name displayed in the local display menus.
 Full Scale Current: Enter the value of the shunt's full current rating.
 Full Scale Voltage: Enter the value of the shunt's full scale voltage (at rated current).
