Vespa LX Series User Manual

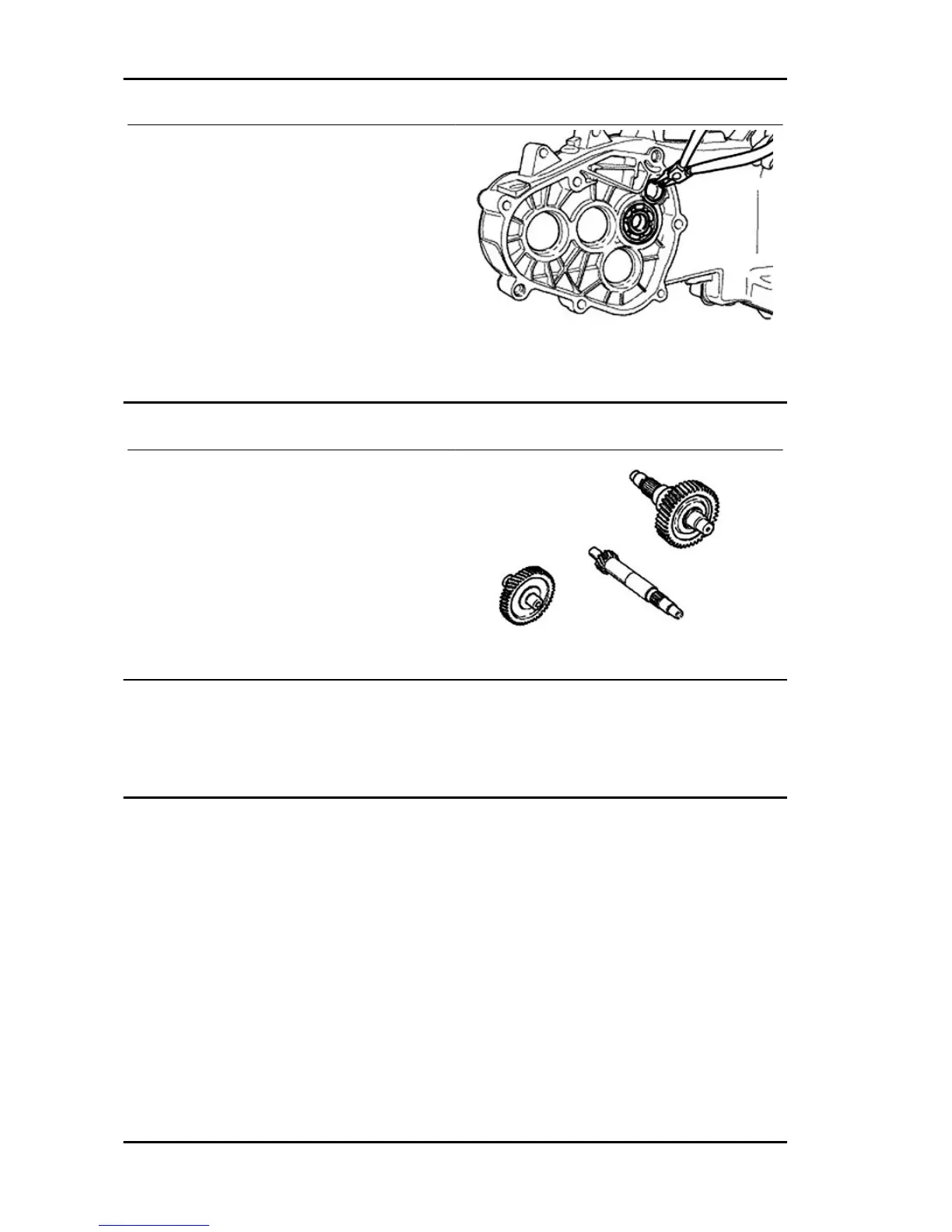

With the sectional punch, remove the driven pulley
shaft bearing.
Specific tooling
020376Y Adaptor handle
020375Y 28 x 30 mm adaptor
020363Y 20-mm guide
See also
Removing the driven pulley
Inspecting the hub shaft
- Check the three shafts for wear or distortion of
the toothed surfaces, the bearing housings, and
the oil seal housings.
- In case of anomalies, replace the damaged com-
ponents.
Inspecting the hub cover
- Check that the fitting surface is not dented or distorted. - Check the capacity of the bearings and the
brake camshaft. - If faults are found, replace the hub cover.
Refitting the driven pulley shaft bearing
- Heat up the parts using the specific heat gun
Specific tooling
020150Y Air heater mounting
020151Y Air heater
- Reassemble the driven pulley axle bearing positioning it with ball bearing in view from the inside of
the hub cover using the adequate tools
Specific tooling
020376Y Adaptor handle
Engine Vespa LX 125 - 150 i.e.
ENG - 106

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
