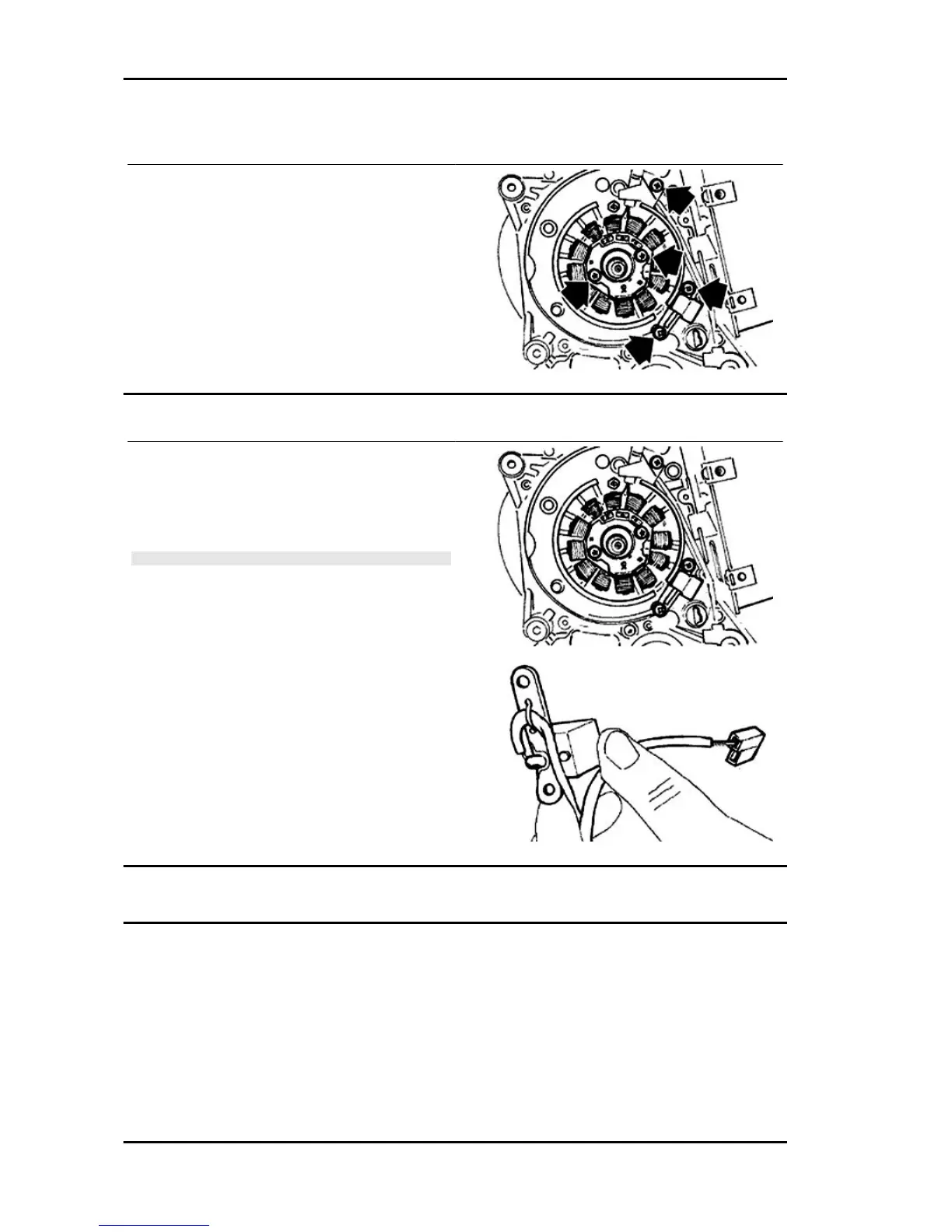

Removing the stator
- Remove the magneto flywheel.
- Remove the electric terminal of the minimum oil
pressure switch.
- Remove the two Pick-Up screws and the one for
the wiring harness bracket as well as the two stator
fixing screws shown in the figure.
- Remove the stator and its wiring.
Refitting the stator
- Refit the stator and flywheel carrying out the re-
moval procedure in reverse, tightening the retain-
ers to the specified torque.
- Place the cable harness as shown in the figure.
N.B.
THE PICK-UP WIRE SHOULD BE POSITIONED BETWEEN
THE UPPER SCREW AND THE REFERENCE PIN AS
SHOWN IN THE DETAIL DRAWING.
Locking torques (N*m)
Stator screw 3 to 4
Flywheel and starting
Engine Vespa LX 125 - 150 i.e.
ENG - 110
