This section describes the operations to be carried out on the engine and the tools to be used.
Automatic transmission
Transmission cover
- To remove the transmission cover it is necessary
to remove the rear plastic cover first by inserting a
screwdriver in the corresponding slotted holes.

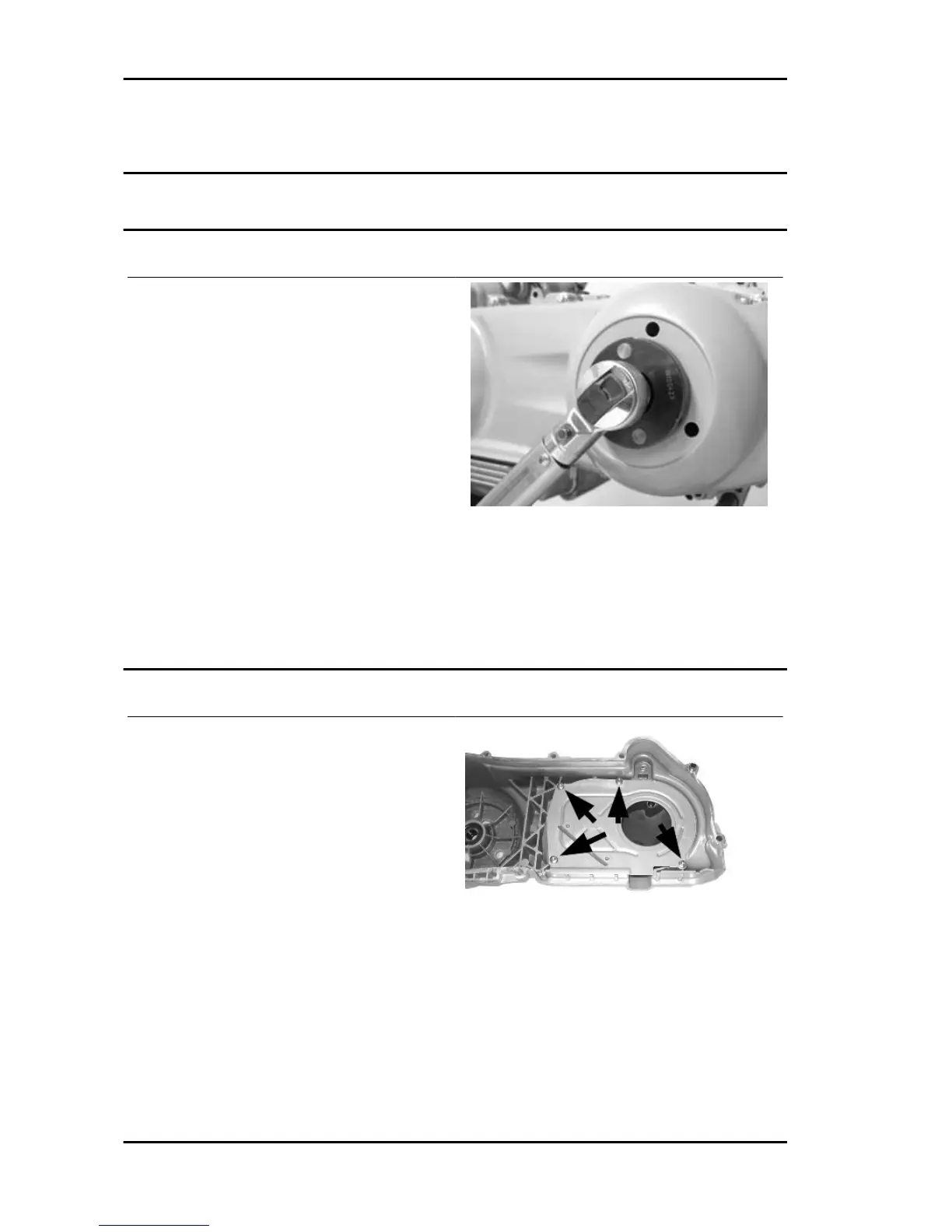

Using the clutch bell lock wrench, remove the driv-
en pulley axle locking nut and recover the washer.
- Remove the cap/dipstick from the engine oil filling
hole.
- Remove the ten screws.
- Remove the transmission cover. If this operation
is performed directly on the vehicle, it is necessary
to remove the cooling air sleeve and the three air
filter housing retainers.
Specific tooling
020423Y Driven pulley lock wrench
Air duct
- Unscrew the Torx screws fixing the air duct bulk-
head and remove the bulkhead.
- Remove the 3 screws, then take out the manifold
as well as the filter.
Engine Vespa LX 125 - 150 i.e.
ENG - 92

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
