Vespa LX Series User Manual

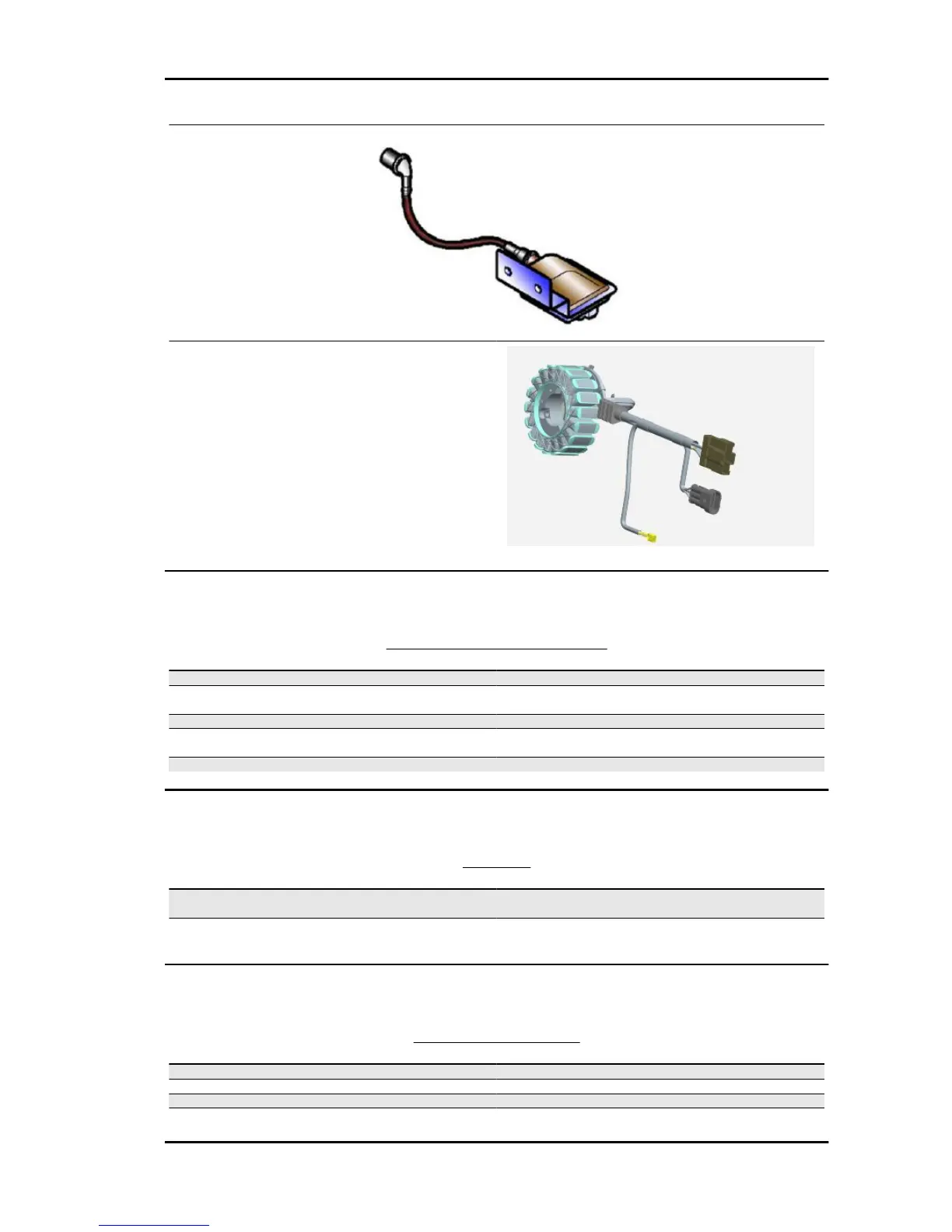

STATOR
Power: 450 W
Resistance between terminals: 0.2 to 1 Ohm
terminal insulation from ground
Frame and suspensions
CHASSIS AND SUSPENSION
Specification
Desc./Quantity
Chassis Stamped plate body with welded structural reinforcements.
Front suspension Single arm with helical spring and single double-acting hy-
draulic shock absorber.
Front suspension travel 70.3 mm
Rear suspension Double-acting shock absorber, adjustable to four positions at
preloading.
Rear suspension travel 83 mm
Brakes
BRAKES
Specification
Desc./Quantity
Front brake Ø 200-mm disc brake with hydraulic control activated by han-
dlebar right-side lever.
Rear brake Ø 110-mm drum brake with mechanical control activated by
handlebar left-side lever.
Wheels and tyres
WHEELS AND TYRES
Specification
Desc./Quantity
Front wheel rim Die-cast aluminium alloy, 2.50x11"
Front tyre Tubeless, 110/70-11'' 45L
Rear wheel rim Die-cast aluminium alloy, 3.00 x 10"
Rear tyre Tubeless, 120/70-10'' 54L
Vespa LX 125 - 150 i.e. Characteristics
CHAR - 13

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
