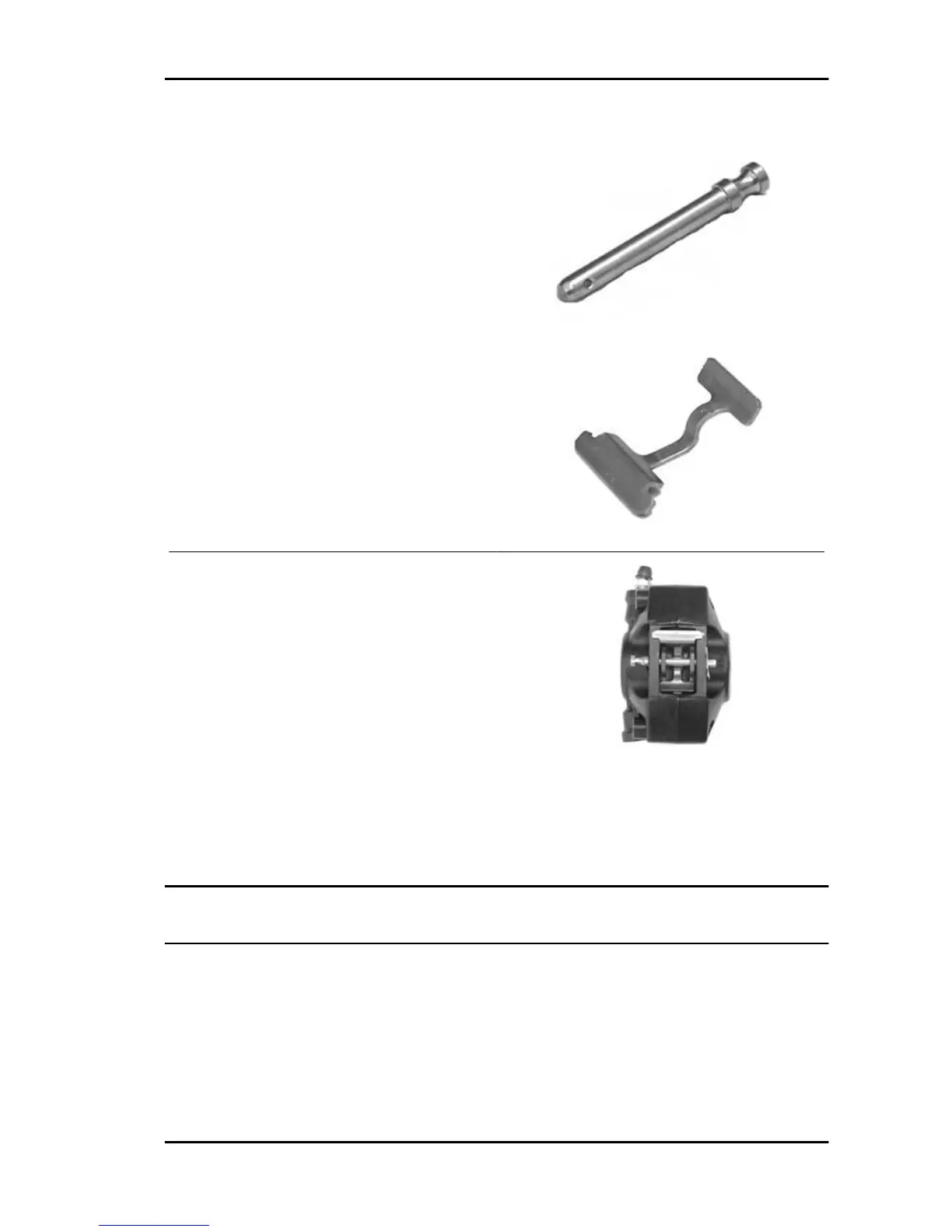

- Keep the brake pads in contact with the pistons
and insert the calliper in the brake disc.
- Fix the calliper to the mounting bracket with the
two screws with spring washer to the prescribed
torque
- If it is disconnected, fasten the brake pipe joint to the calliper and tighten to the prescribed torque
- Purge the circuit and refit the front wheel
Locking torques (N*m)
Brake calliper mounting clamping 20 to 25 Nm Brake pipe connection 20 to 25 N•m
Front brake disc
Vespa LX 125 - 150 i.e. Braking system
BRAK SYS - 207

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
