Vespa LX Series User Manual

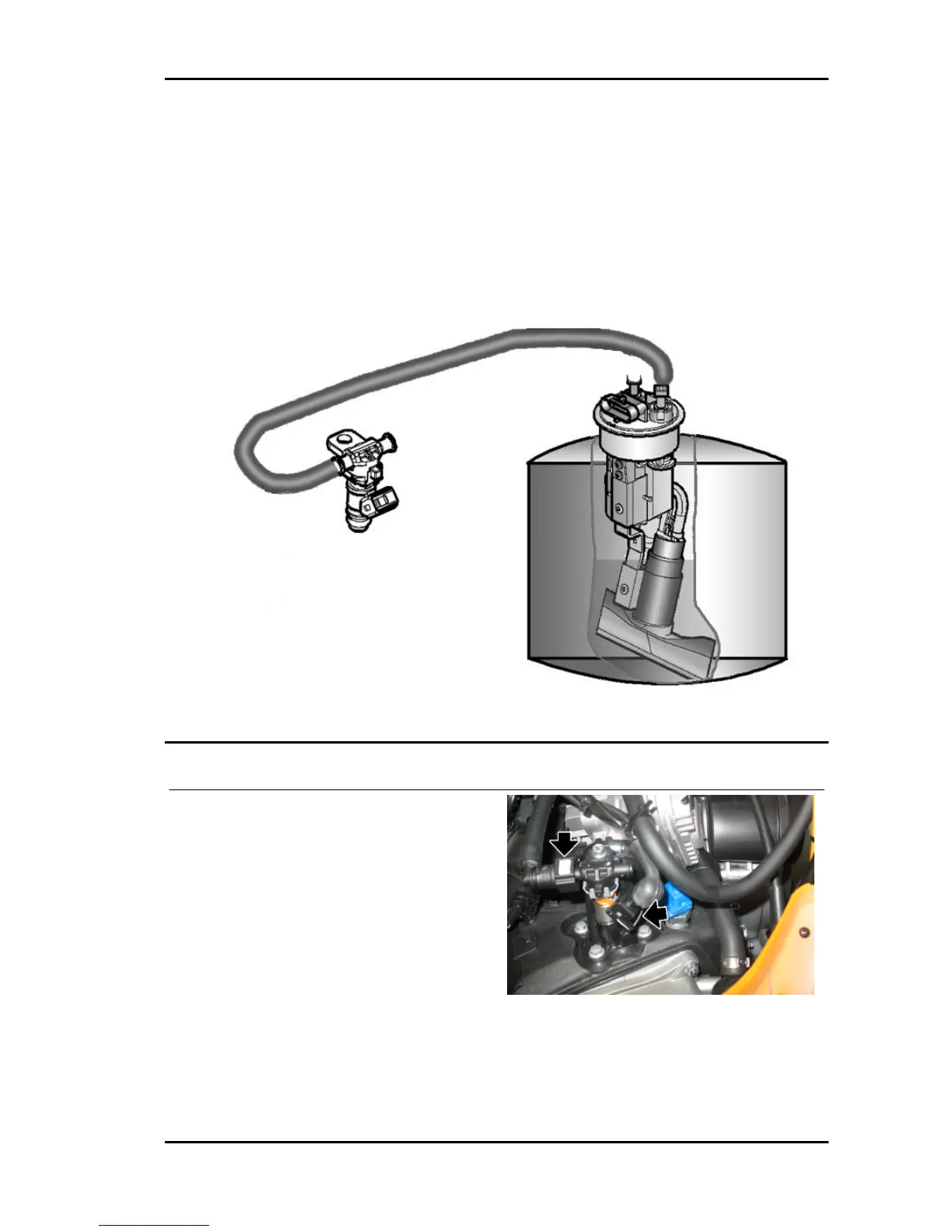

Fuel supply system
The fuel system circuit includes the electric pump, the filter, the pressure regulator, the electro-injector
and the fuel delivery pipes.
The electrical pump is located in the tank from which the fuel is pumped and sent to the injector through
the filter.
The pressure is controlled by the pressure regulator situated in the pump assembly in the tank.
Removing the injector
- Remove the helmet compartment.
- Remove the connector from the injector.
- Remove the quick release of the petrol delivery
pipes.
Vespa LX 125 - 150 i.e. Injection
INJEC - 157
