Vespa LX Series User Manual

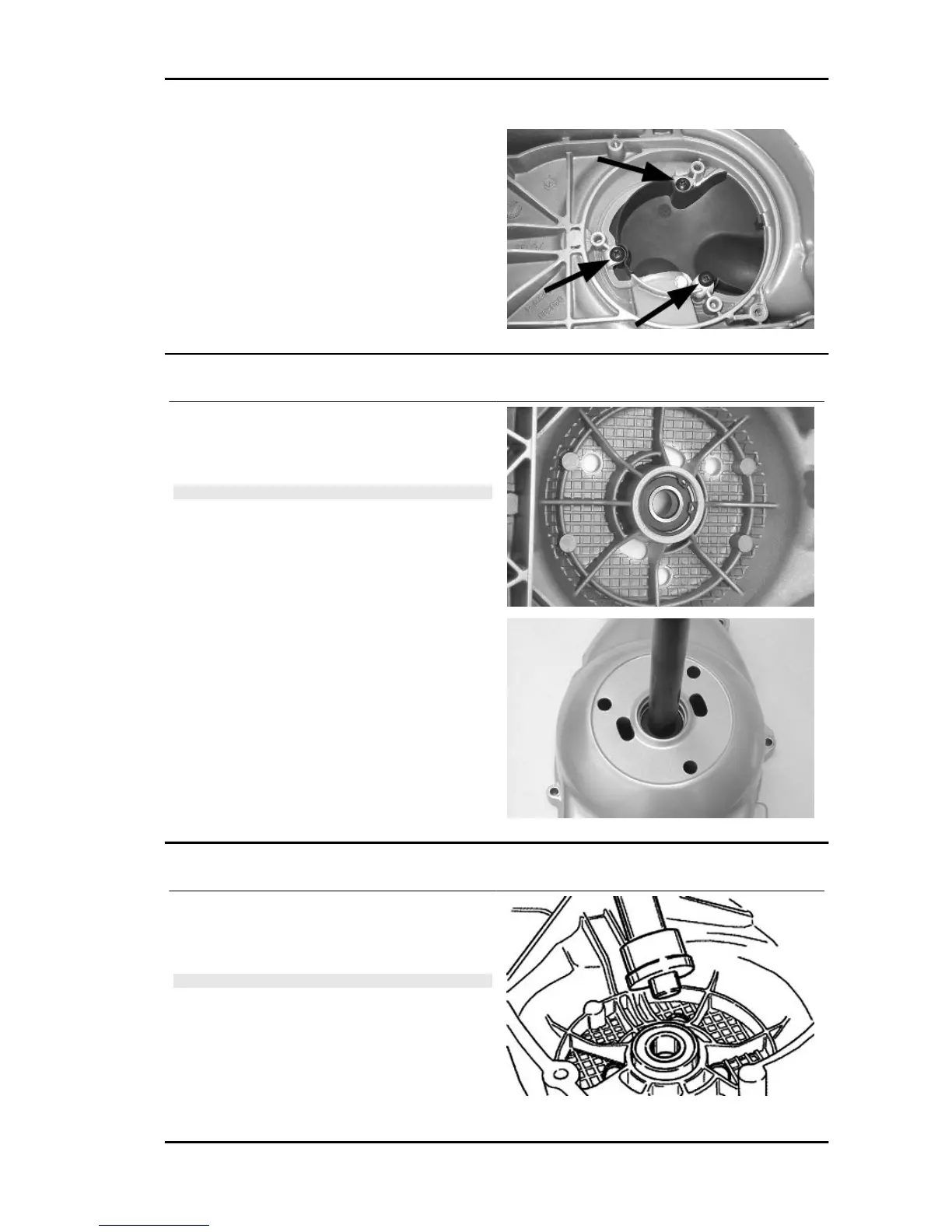

Removing the driven pulley shaft bearing
- Remove the clip from the inside of the cover.
- Use the specific tools to remove the bearing from
the crankcase.
CAUTION
USE AN APPROPRIATE REST SURFACE TO AVOID DAM-
AGING THE COVER PAINT.
Specific tooling
020376Y Adaptor handle
020375Y 28 x 30 mm adaptor
Refitting the driven pulley shaft bearing
- Heat up the crankcase inside with the hot air gun.
- Insert the bearing in its housing, refit the Seeger
ring.
N.B.
ALWAYS REPLACE THE BEARING WITH A NEW ONE
UPON REFITTING.
Specific tooling
020151Y Air heater
020376Y Adaptor handle
Vespa LX 125 - 150 i.e. Engine
ENG - 93

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
