Vespa LX Series User Manual

Maintenance chart

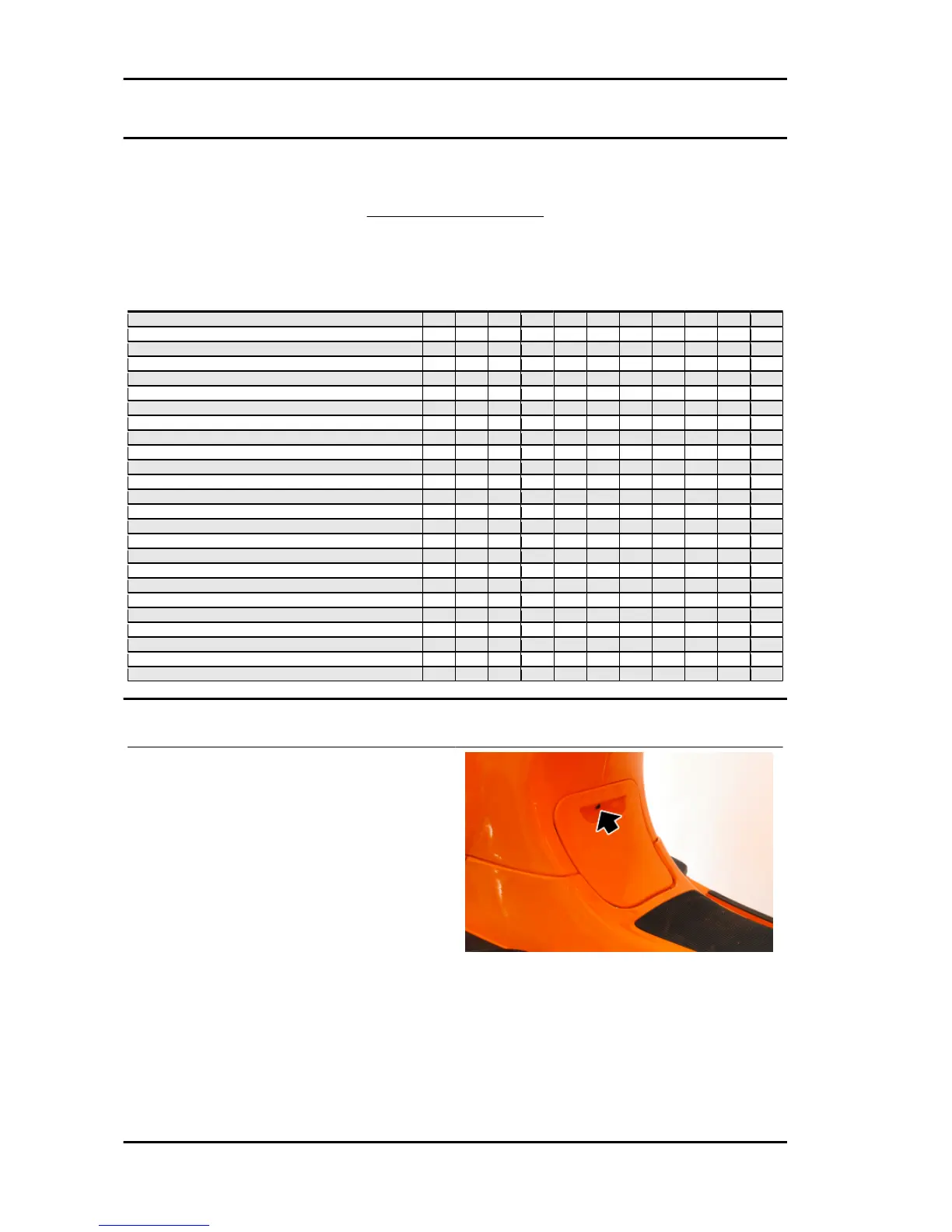

MAINTENANCE TABLE
I: INSPECT AND CLEAN, ADJUST, LUBRICATE OR REPLACE, IF NECESSARY
C: CLEAN, R: REPLACE, A: ADJUST, L: LUBRICATE
* Check level every 3,000 km
** Replace every 2 years
Km x 1,000 1 6 12 18 24 30 36 42 48 54 60
Safety locks I I I I I I
Spark plug I R I R I R I R I R
Centre stand L L L L L L L L L L
Driving belt I R I R I R I R I R
Throttle control A A A A A A
Air filter C C C C C C C C C C
Oil filter R R R R R R R R R R
Mesh oil filter C C C C C C C C C C C
Valve clearance A A A A
Electrical system and battery I I I I I I I I I I I
Cylinder ventilation system C C
Brake control levers L L L L L L
Brake fluid ** I I I I I I I I I I I
Engine oil * R R R R R R R R R R R
Hub oil R I I I R I I I R I I
Headlight aiming adjustment A A A A A
Brake pads I I I I I I I I I I I
Sliding blocks / variable speed rollers I R I R I R I R I R
Tyre pressure and wear I I I I I I I I I I I
Vehicle test ride I I I I I I I I I I I
Odometer gear L L L L L
Suspension I I I I I
Steering A A A A A A
Transmissions L L L L L
Operation time 80' 150' 160' 150' 175' 95' 270' 95' 175' 150' 160'
Spark plug
- Position the vehicle on the stand
- Open the saddle and remove the helmet com-
partment.
- Remove the spark plug external inspection door
by undoing the indicated screw
Maintenance Vespa LX 125 - 150 i.e.
MAIN - 34

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
