Brake pump reservoir screws 15 ÷ 20

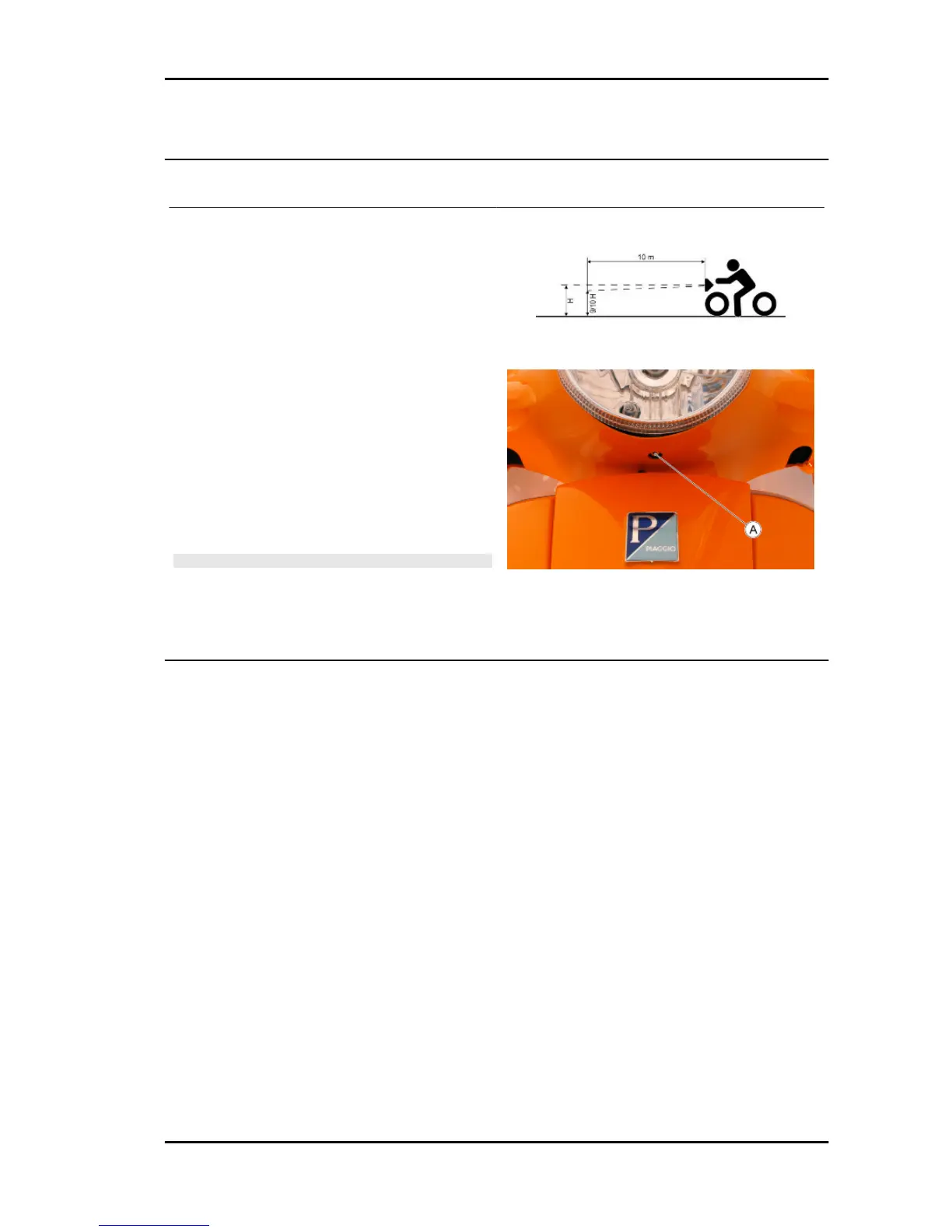

Headlight adjustment
Proceed as follows:
1. Place the vehicle, in running order and with the
tyres inflated to the prescribed pressure, on a flat
surface 10-m away from a white screen situated in
a shaded area, making sure that the longitudinal
axis of the scooter is perpendicular to the screen;
2. Turn on the headlight and check that the bor-
derline of the projected light beam on the screen
is not higher than 9/10 or lower than 7/10 of the
distance from the ground to the centre of vehicle
headlamp;
3. If otherwise, adjust the right headlight with screw
«A».
N.B.
THE ABOVE PROCEDURE COMPLIES WITH THE EURO-
PEAN STANDARDS REGARDING MAXIMUM AND MINI-
MUM HEIGHT OF LIGHT BEAMS. REFER TO THE STATU-
TORY REGULATIONS IN FORCE IN EVERY COUNTRY
WHERE THE VEHICLE IS USED.
Vespa LX 125 - 150 i.e. Maintenance
MAIN - 43

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
