Vespa LX Series User Manual

Front suspension
This section is devoted to operations that can be carried out on the suspension.
Front

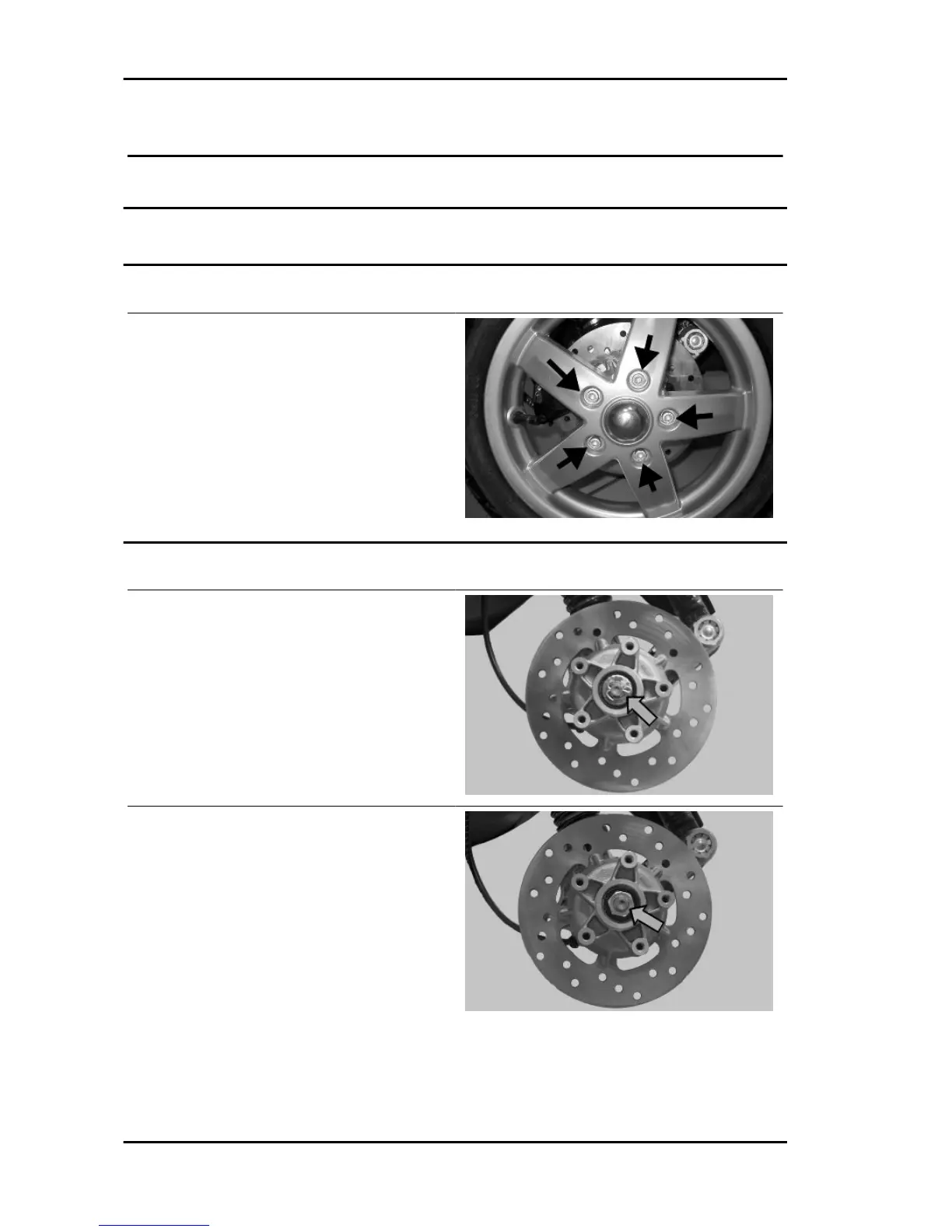

Removing the front wheel
- Support the vehicle adequately.
- Loosen the five screws fixing the wheel to the
hub.
Front wheel hub overhaul
- Support the vehicle adequately.
- Remove the front wheel.
- Remove the front brake calliper.
- Remove the cotter pin and remove the cap.
- Unscrew the nut fixing the front wheel hub.
Suspensions Vespa LX 125 - 150 i.e.
SUSP - 186

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
