Vespa LX Series User Manual

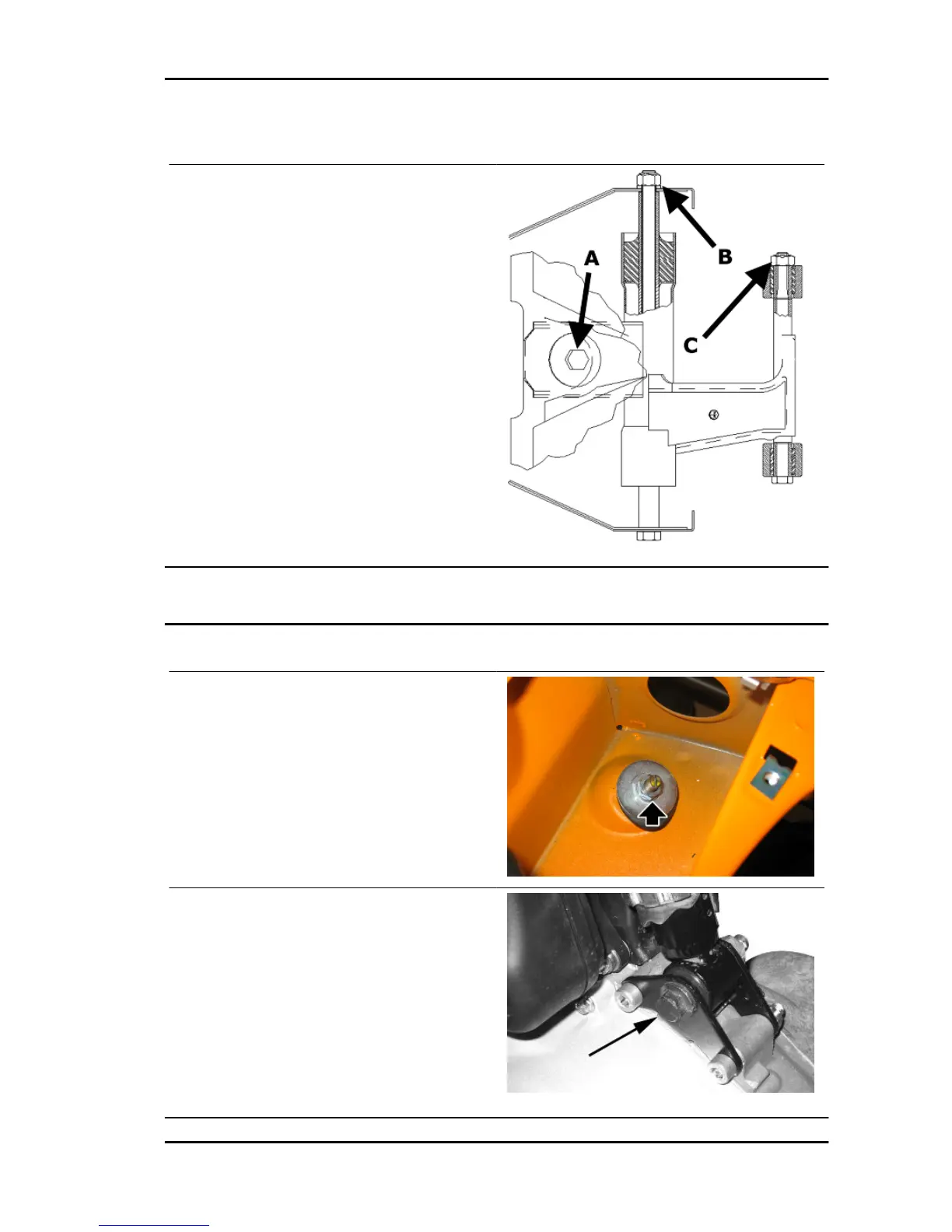

Refitting
- To fit, follow the removal steps but in reverse or-
der; be careful to tighten to the prescribed torques.
Locking torques (N*m)
Part A 33 to 41 Part B 44 to 52 Part C 33 to 41
Shock absorbers
Removal
- Adequately support the rear part of the vehicle.
- Remove the battery.
- Undo the indicated upper fixing screw to the
chassis.
- Unscrew the lower fixing pin to the transmission
crankcase.
Vespa LX 125 - 150 i.e. Suspensions
SUSP - 203

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
