Vespa LX Series User Manual

- Remove the central screw and the tensioner
spring. Check that the one-way mechanism is not
worn.
- Check the condition of the tensioner spring.
- If examples of wear are found, replace the whole
unit.

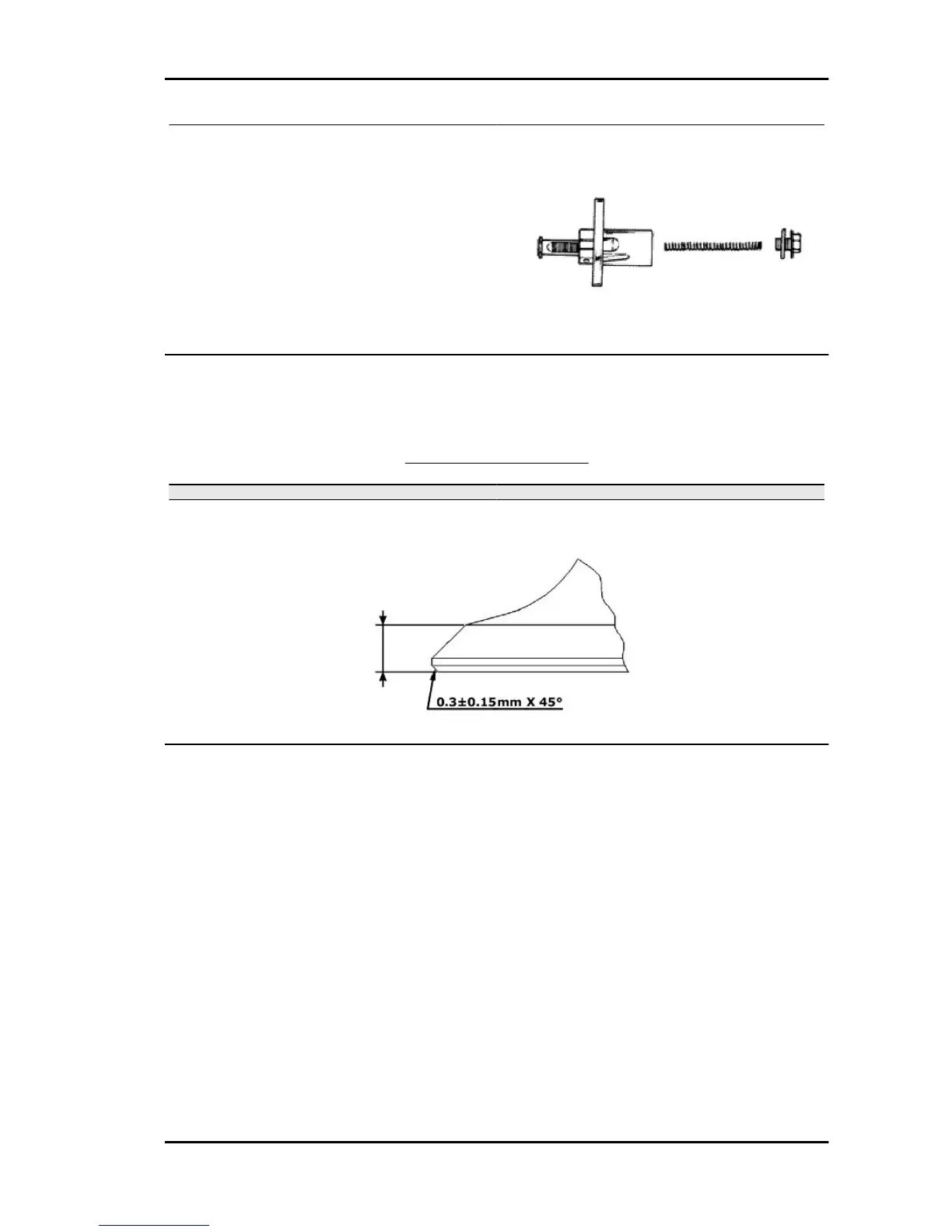

Inspecting the valve sealings
- Measure the width of the sealing surface on the valve seats.
VALVE SEAL SURFACE
Specification Desc./Quantity
Intake valve - seal surface 2.4 to 2.8 mm
Exhaust valve - seal surface 2.2 to 2.6 mm
Inspecting the valve housings
- Remove any carbon formation from the valve guides.
- Measure the inside diameter of each valve guide.
- Take the measurement at three different heights in the rocker arm push direction.
Characteristic
Standard drainage guide diameter
5.012 mm
Standard inlet guide diameter
5.012 mm
Vespa LX 125 - 150 i.e. Engine
ENG - 121

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
