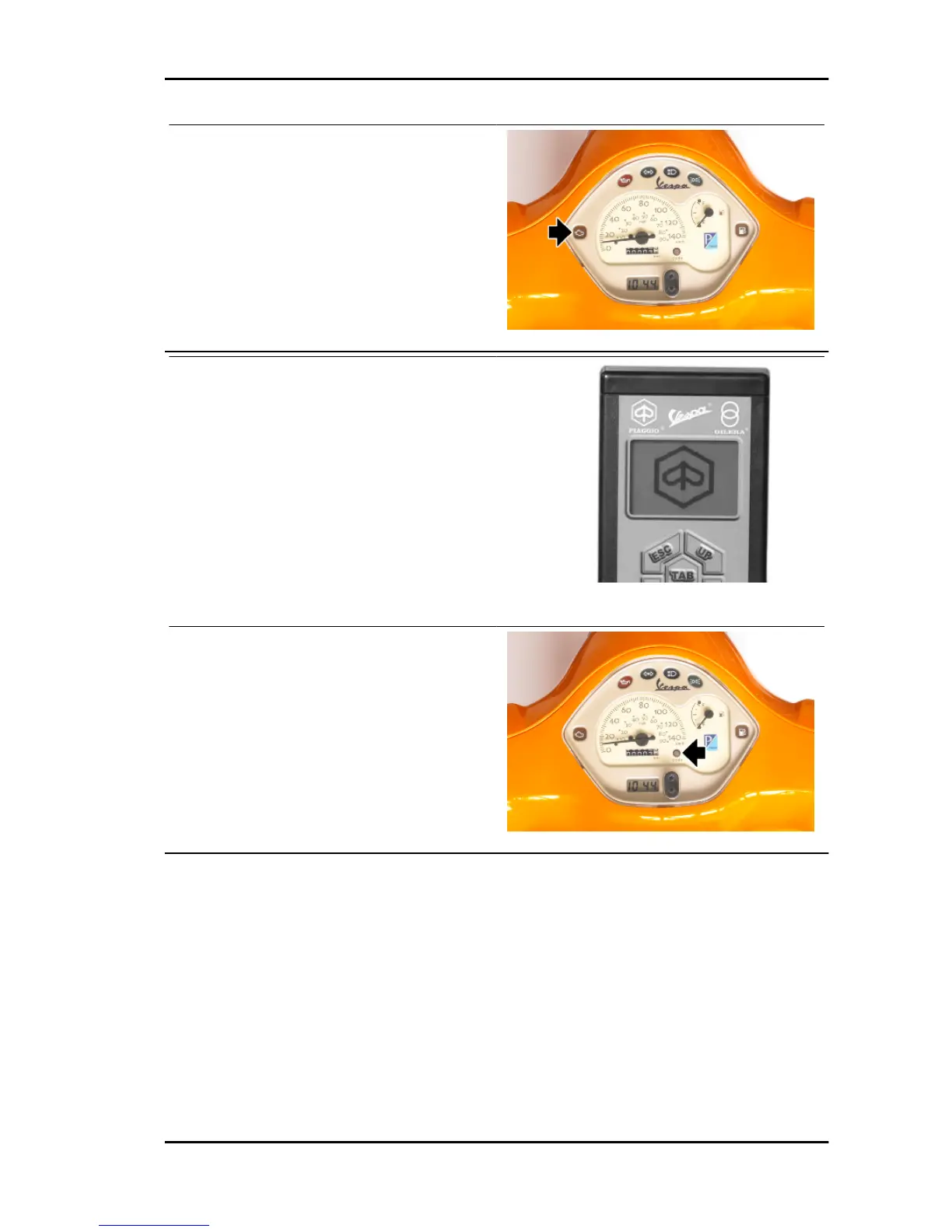

The control unit is provided with a self-diagnosis
system connected to an indicator light in the in-
strument panel.
Failures are detected and restored by the diag-
nostic tester.
In any case, when the fault is no longer present,
the data storage is automatically cleared after 16
cycles of use (cold start, running at regular engine
temperature, stop).
The diagnostic tester is also required to adjust the
idle mixture.
Specific tooling
020680Y Diagnosis Tool
The MIU control unit has a decoder for the anti-
theft immobilizer system.
The MIU control unit is connected to a diagnostic
LED on the instrument panel, that also carries out
the deterrent flashing functions.
Precautions
Troubleshooting hints
1 A MIU failure is more likely to be due to the connections than to the components.
Before troubleshooting the MIU system, carry out the following checks:
A: Electrical power supply
a. Battery voltage
b. Blown fuse
c. Remote controls
d. Connectors
B: Chassis ground
Vespa LX 125 - 150 i.e. Injection
INJEC - 149

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
