Vespa LX Series User Manual

7. When washing the vehicle, be careful with the electric components and wiring.
8. When an ignition problem is detected, start the checks from the battery and the injection system
connections.
9. Before disconnecting the MIU ECU connector, perform the following steps in the order shown:
- Set the switch to «OFF»
- Disconnect the battery
Failure to respect this norm may damage the control unit.
10. Do not invert the poles when fitting the battery.
11. To avoid causing any damage, disconnect and reconnect the MIU system connectors only if re-
quired. Before reconnecting, check that the connectors are dry.
12. When carrying out electric inspections, do not force the tester probes into the connectors. Do not
take measurements not specifically foreseen by the manual.
13. At the end of every check performed with the diagnostic tester, remember to protect the system
connector with its cap. Failure to observe this precaution may damage the MIU control unit.
14. Before reconnecting the quick couplers of the power supply system, check that the terminals are
perfectly clean.

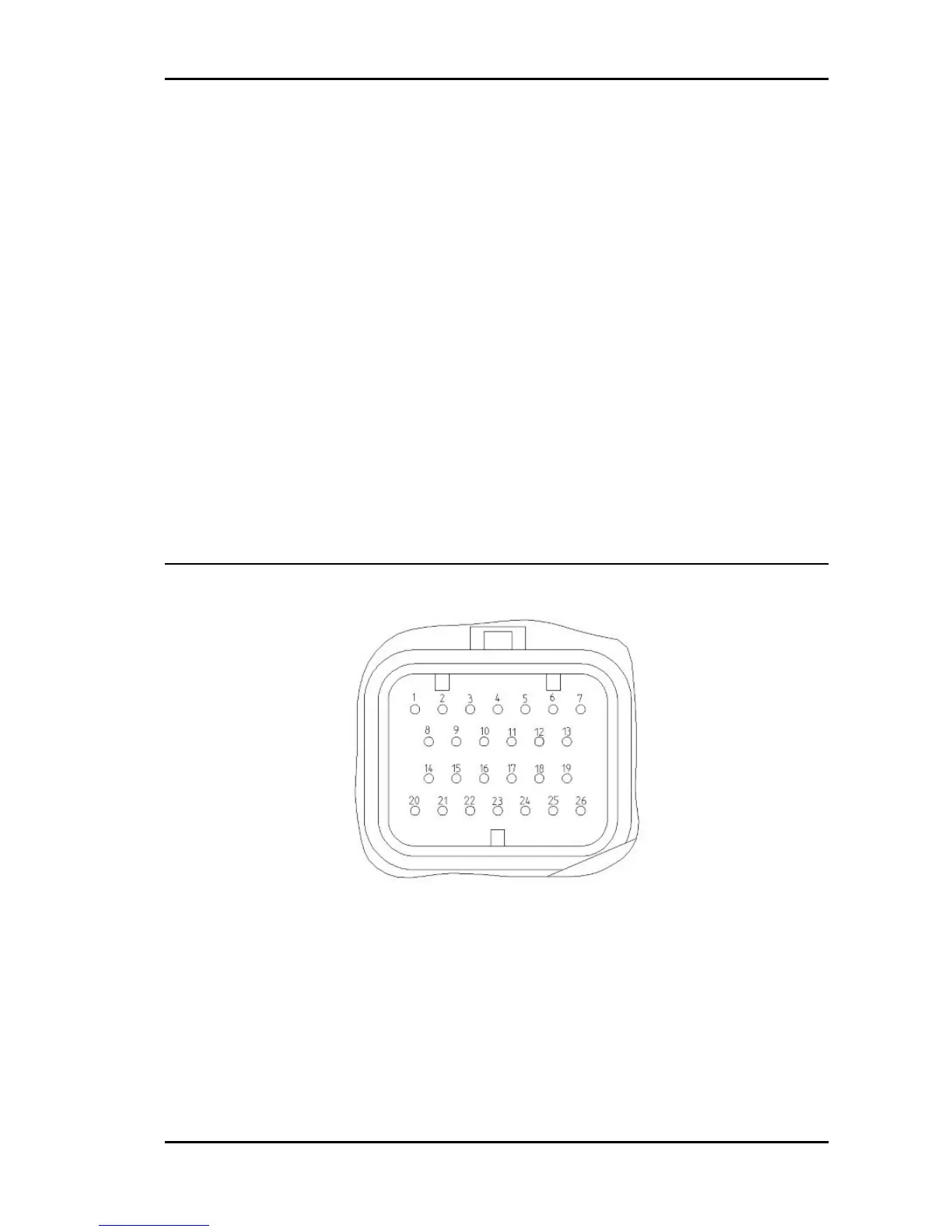

Terminals setup
1. Injection warning light
2. incomplete
3. incomplete
4. (-) lambda probe
5. (+) live battery
6. (+) battery
7. Immobilizer aerial
8. incomplete
Vespa LX 125 - 150 i.e. Injection
INJEC - 151

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
