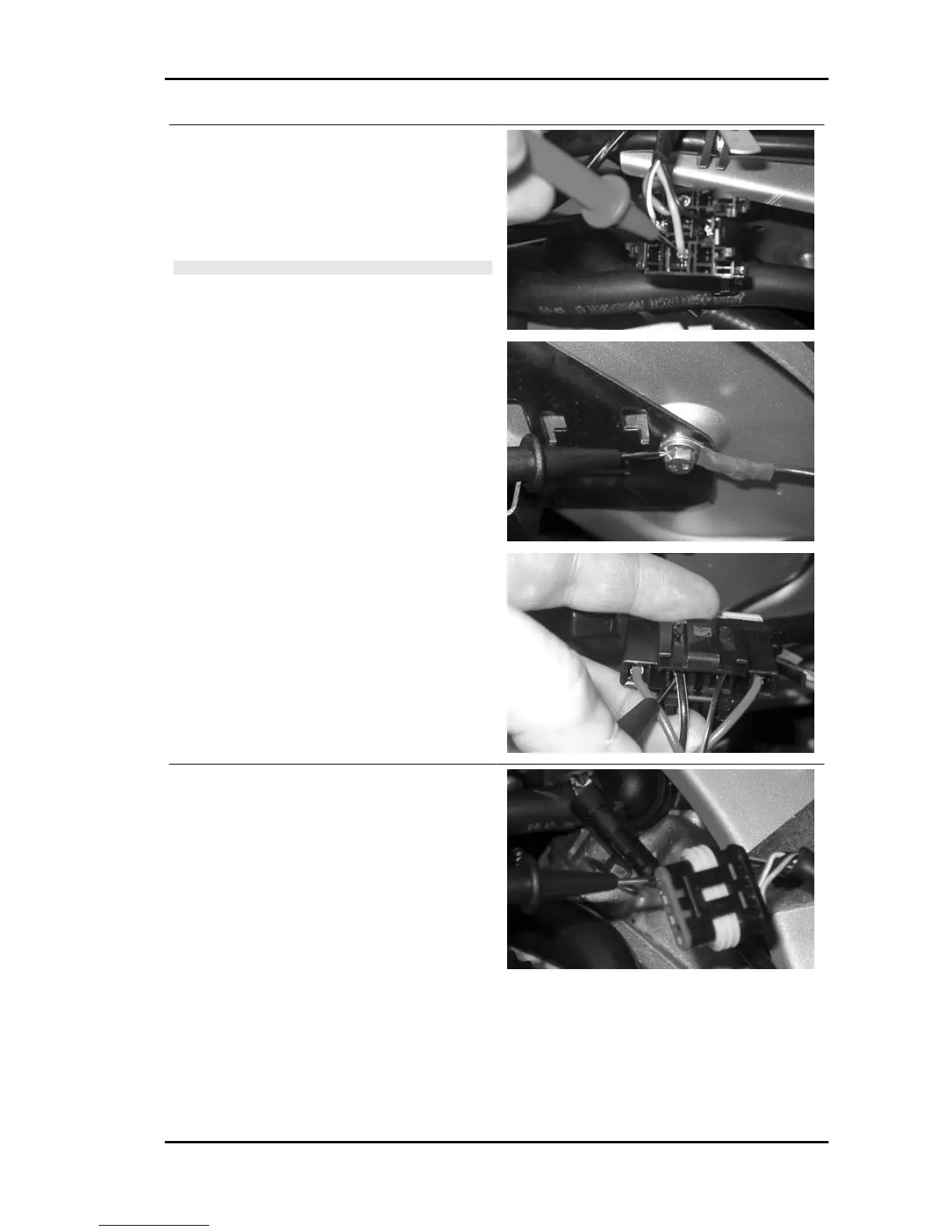

Check the presence of fixed voltage between the
grey/black cable of the remote control base and
ground. If there is not, check the continuity of the
Grey/Black cable between the fuse box (No. 6, 15
A) and the remote control base.
N.B.
CONTINUITY TESTS MUST BE CARRIED OUT WITH THE
COMPONENTS DISCONNECTED. (REMOTE CONTROLS,
CONTROL UNIT, FUSES ETC.).
pump circuit 6
Check, on switching to "ON", that there is battery
voltage, for about two seconds, to the Black-Green
cable of the pump connector and ground with
pump connector disconnected. Otherwise, check
the continuity of the Black-Green cable between
the pump connector and the remote control base.
Check the efficiency of the ground line of the fuel
pump by measuring the continuity between the
pump connector black cable, system side, and the
ground.
If, when switching to "ON", the pump continues to
turn after two seconds of activation, check, with the
control unit disconnected and the injection load re-
Vespa LX 125 - 150 i.e. Injection
INJEC - 165

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
