Vespa LX Series User Manual

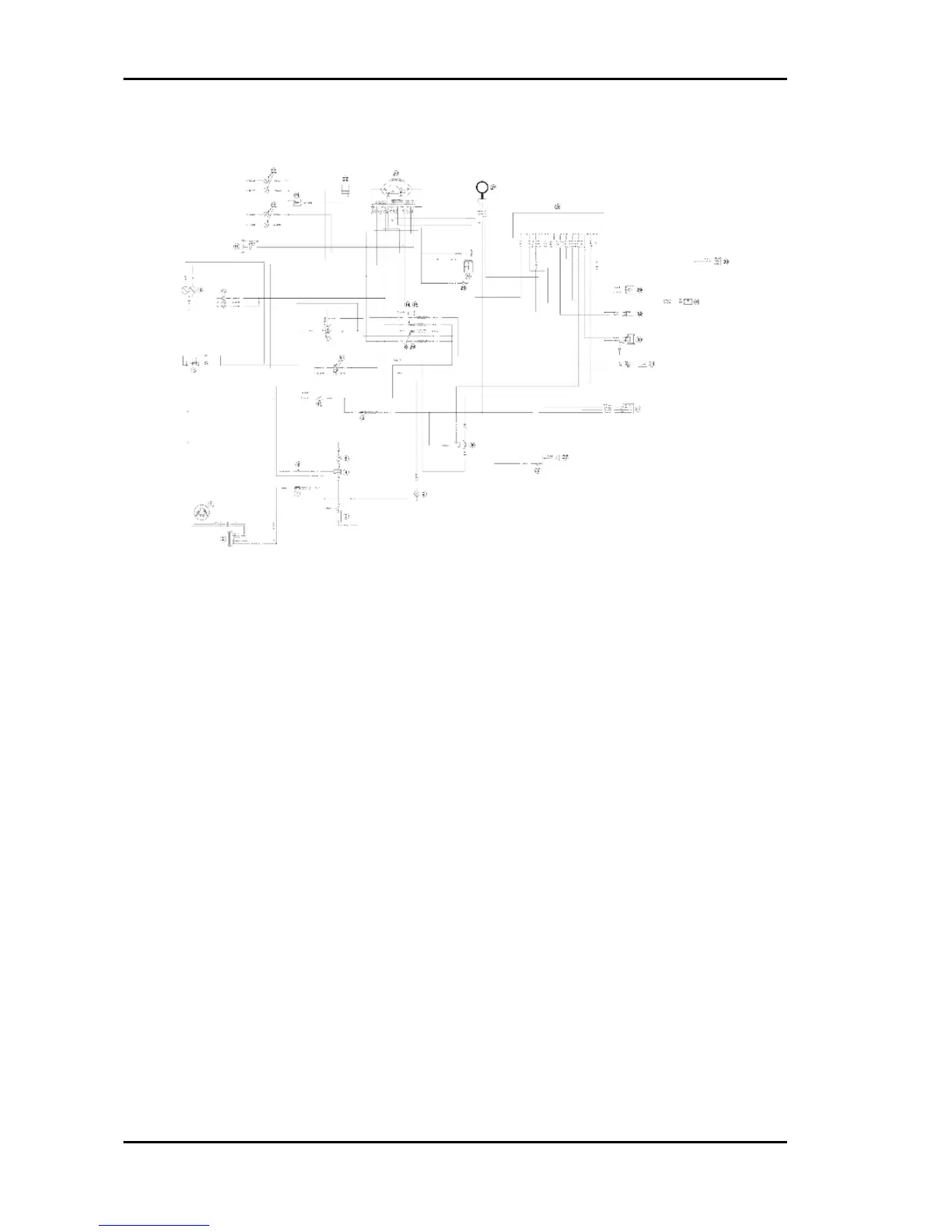

Key:
1. Magneto flywheel
2. Voltage regulator
3. 12V-10Ah Battery
4. Start-up remote control switch
5. Starter motor
6. Starter button
7. Fuse No. 1 - 20A
8. Fuse No. 2 - 7.5A
9. Stop light bulb
10. Key switch contacts
11. Headlight remote control
12. Stop buttons
13. Light switch
14. Fuse No. 5 - 7.5A
15. Fuse No. 6 - 7.5A
16. Fuse No. 4 - 10A
17. Front and rear daylight running lights and license plate light
18. Headlight with twin-filament bulb
19. Pre-installation for anti-theft device
Electrical system Vespa LX 125 - 150 i.e.
ELE SYS - 50

Vespa LX Series Specifications

General

Displacement	124 cc
Cooling System	Air-cooled
Front Tire	110/70 - 11"
Rear Tire	120/70 - 10"
Seat Height	785 mm
Kerb Weight	114 kg
Wheelbase	1, 280 mm
Length	1, 770 mm
Width	705 mm
Height	1, 140 mm
Engine Type	Single-cylinder, 4-stroke
Fuel System	Carburetor
Max Torque	10.4 Nm @ 6, 000 rpm
Transmission	Automatic
Front Suspension	Single-sided trailing arm with hydraulic shock absorber
Rear Suspension	Hydraulic shock absorber
Front Brake	200mm disc brake
Rear Brake	110mm drum brake
