Tighten the bolts securing the oil sump to the crankcase front and
rear covers to the recommended torque using the tool.
Engine oil sump
Side bolts M6 (daNm) 0.9
Fit the tool for rotating the crankshaft (ange).
Position the timing belt toothed drive pulley in its housing and
tighten the bolt (anti-clockwise thread) to the recommended
torque.
Toothed drive pulley
Left hand bolt M16
(daNm)
32.3 ÷ 35.7 (crankshaft side)

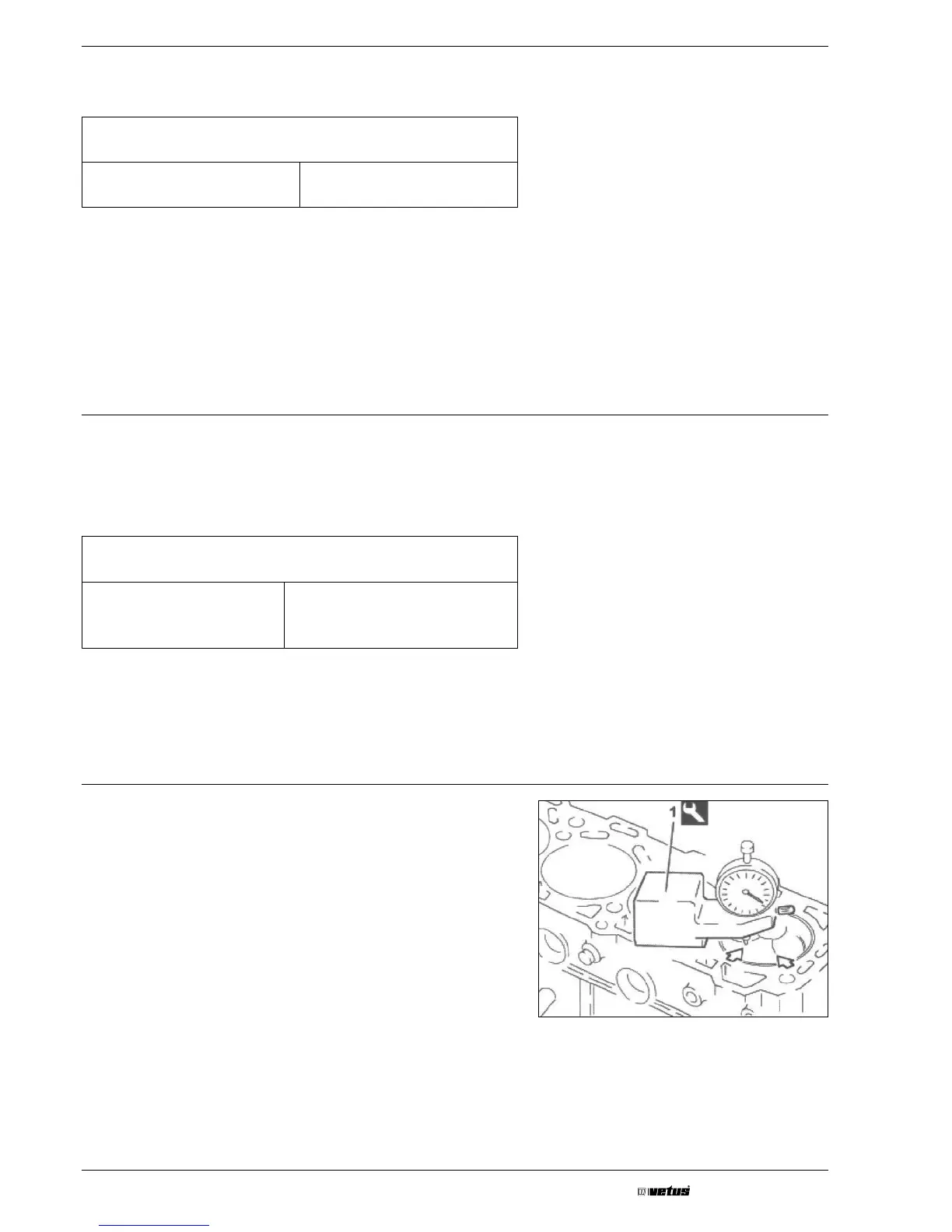

Measure the piston projection in two places at 180° on the gudg-
eon pin axis using the tool and take the average of the two values
measured for each piston. (dial gauge support).
