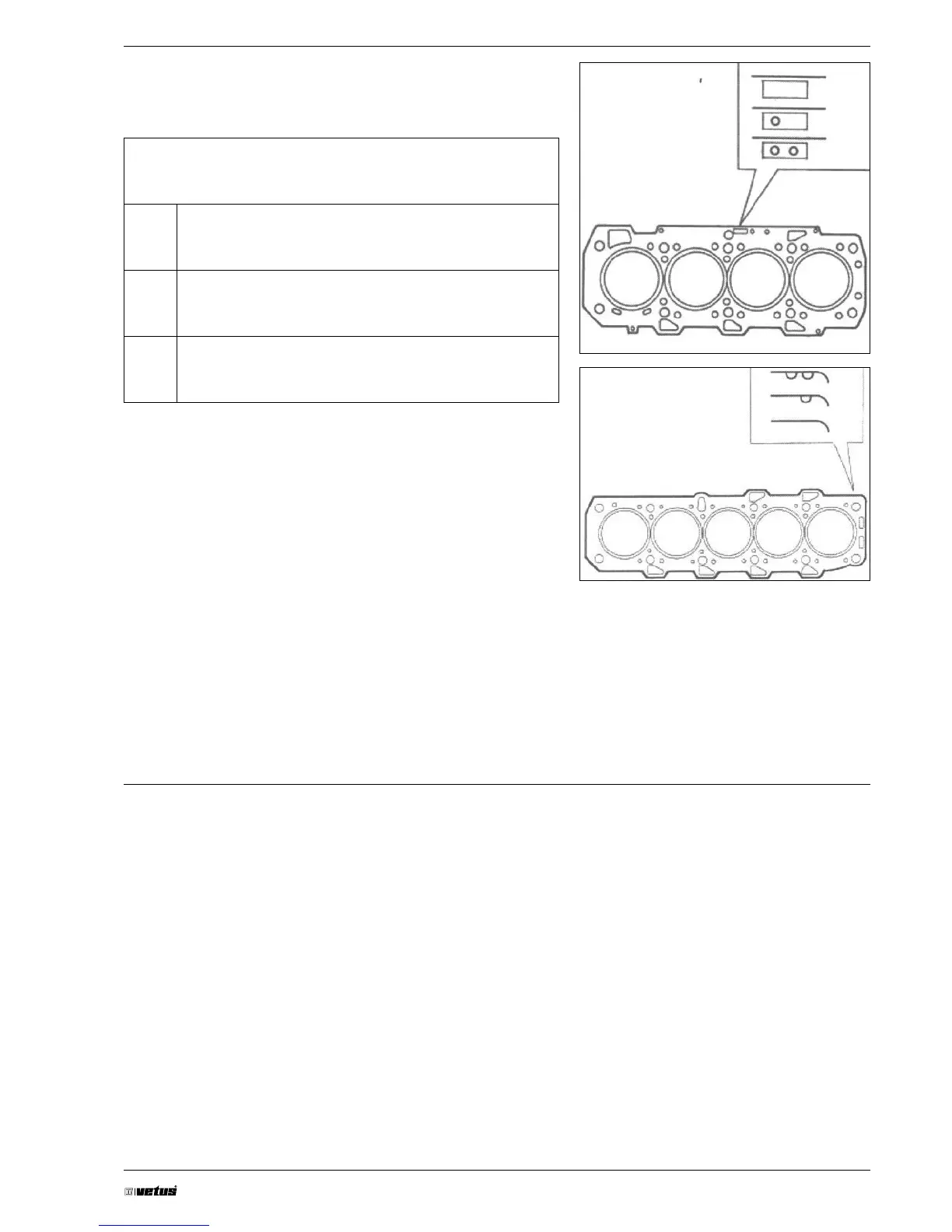

Select the correct size cylinder head gasket depending on the
maximum value out of the averages of the projection for each in-
dividual piston.
Cylinder head gasket size with average maximum piston
projection
0
opening projection -0.020 ÷ +0.100 mm – thickness
0.82 ÷ 0.05 mm
1
opening projection +0.101 ÷ +0.200 mm – thickness
0.92 ÷ 0.05 mm
2
opening projection +0.201 ÷ +0.295 mm – thickness
1.02 ÷ 0.05 mm
VF4
VF5
Place the cylinder head centring bushes on the cylinder block.
Fit the cylinder head basket selected.
Position the cylinder head on the cylinder block/crankcase.
