Tighten the cylinder head bolts to the specied torque.

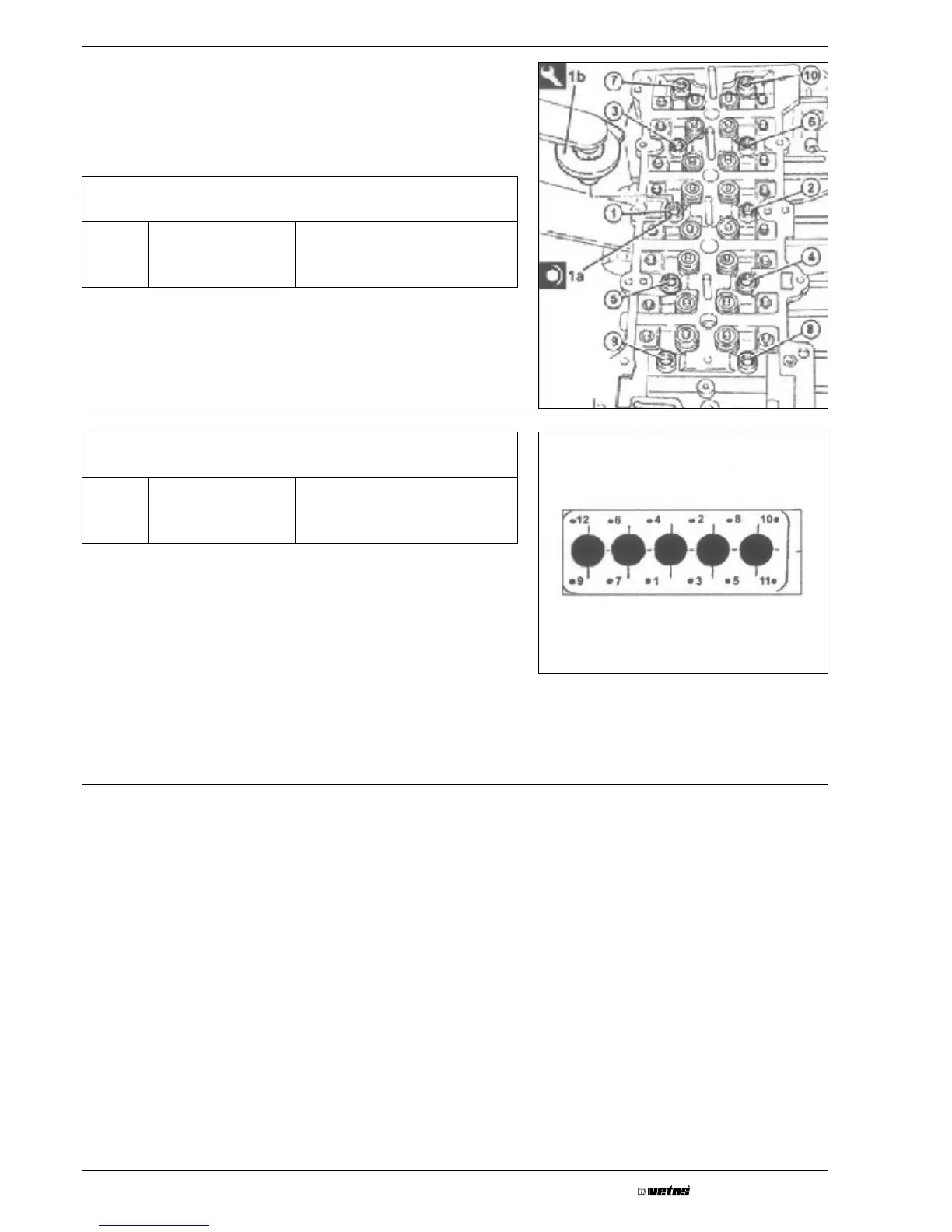

Follow the order shown in the diagram for each tightening se- 
quence.
Camshaft housing
VF4 Bolt M12 (daNm)
6.2 ÷ 6.8 + 4.5+90°+90°+90°
(Crankcase side)
The value of 2 daNm in the table above is a tightening value 
for all the bolts following the order illustrated in the diagram.
Camshaft housing
VF5 Bolt M12 (daNm)
2 + 4.5+90°+90°+90° (Crank-
case side)
The value of 2 daNm in the table above is a tightening value 
for all the bolts following the order illustrated in the diagram.
Position the rpm sensor in its housing and secure it using the
bolt.
Place the timing belt tensioner mount in its housing and secure it
using the bolt.
Place the timing belt xed tensioner in its housing and secure it
using the bolt.
Fit the pressure pump mounting complete with pump and secure
it using the bolts.
Place the timing belt side guard in its housing and secure it using
the bolts.
