Assembly - attachment

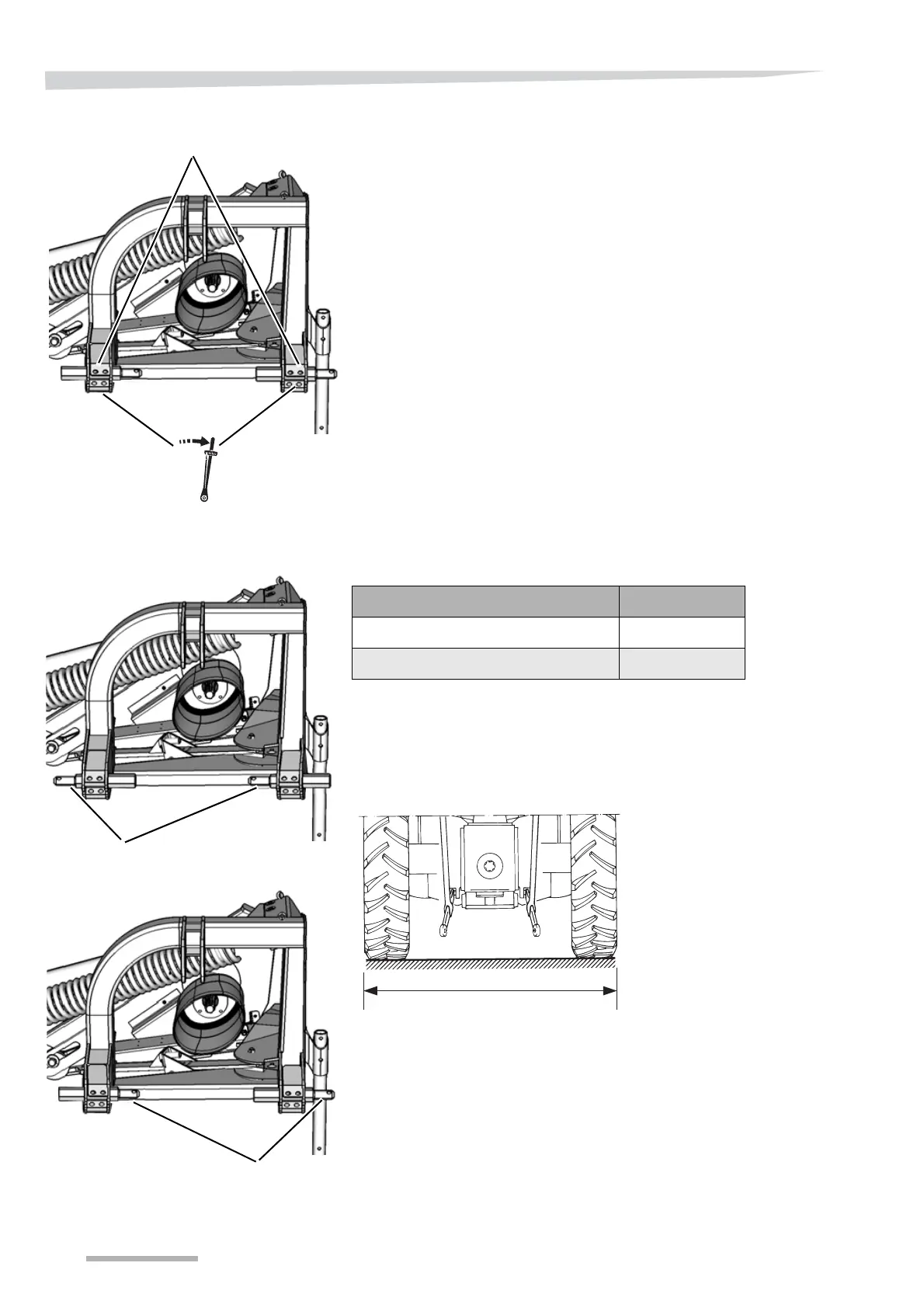

> Fit the bolts and tighten to the torque shown.
The following position of the linkage pins must be used for attachment:
The width of the tractor is measured from the outside edge of the tyres
as shown.
Width of the tractor Pos.
Under 2200 mm (7’ 2½”) A
Over 2200 mm (7’ 2½”) B
Bolts
225 Nm
(165 ft/lb)
A
B
