Assembly - attachment
34

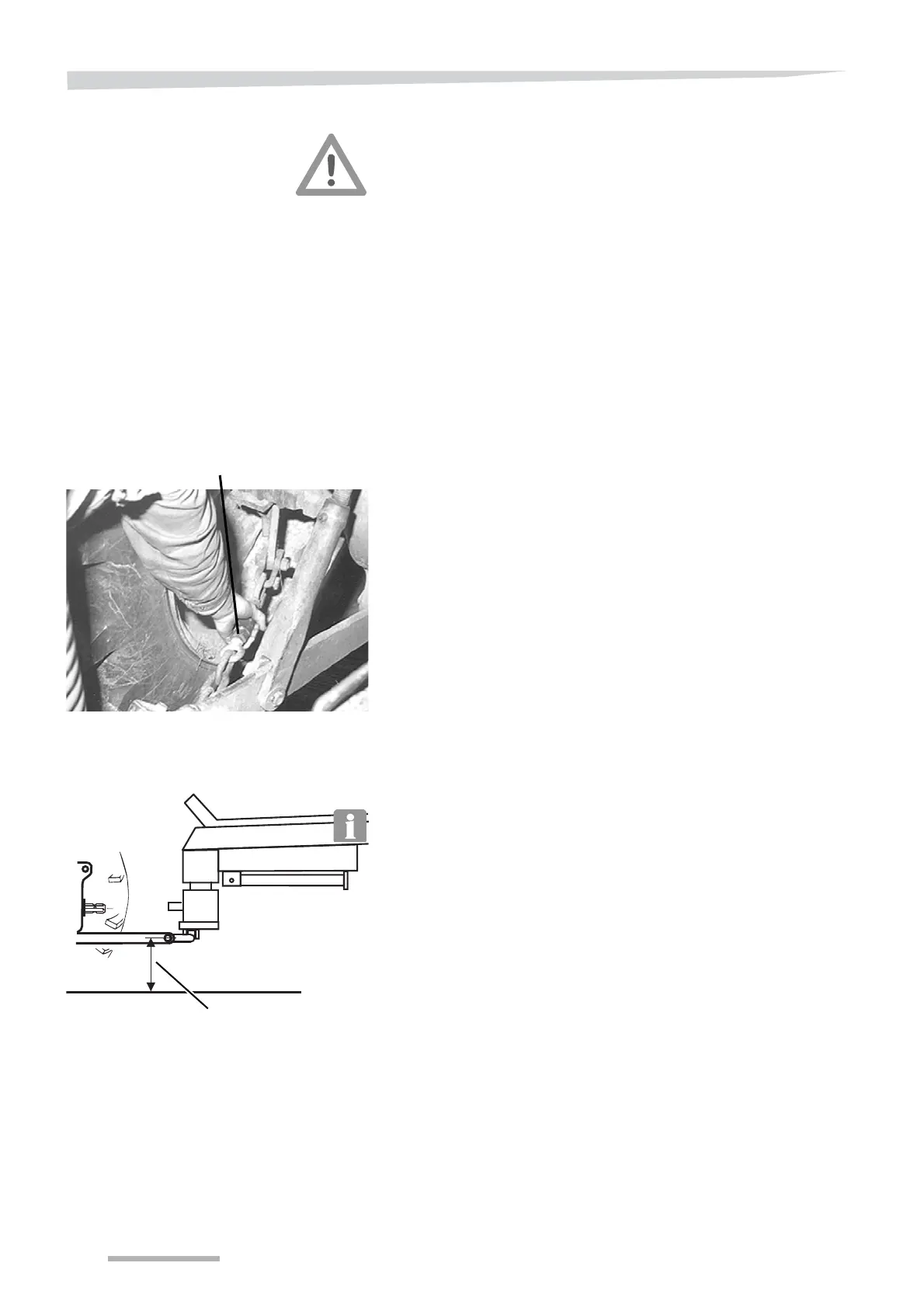

Connecting the machine
When connecting the machine there is an increased risk of injury.
Attention to the task will ensure your safety and that of others.
Failure to follow the safety instructions may result in serious injuries.
Secure the attachment with the locking pin
The attachment must be secured to the machine with the locking pin.
The locking pin secures the machine against becoming detached from
the tractor.
Attachment without the locking pin can result in the machine becoming
detached, leading to serious or fatal injury.
Therefore, when connecting the machine you should be sure that:
• The machine cannot become detached from the tractor.
• The coupling is secured with the locking pin.
• The tractor PTO shaft should be 1 3/8” , with 6 splines and able to
run at 540/1000 rpm.
Tighten the tractor's stabiliser chains.
Adjust the tractor's lift arms to the height shown.
It is important that the PTO shaft between the tractor and machines is
horizontal. If the PTO shaft is not horizontal, the universal joint in the
axle may be damaged.
530 - 600 mm (21’’ - 23 ½’’)
