Routing connecting cables/leads
!
Please note
If closures or diaphragm grommets are dam-
aged, splashproofing is no longer ensured.
Never open or damage closures or unused dia-
phragm grommets on the underside of the appli-
ance. Seal cable entries with fitted diaphragm
grommets.

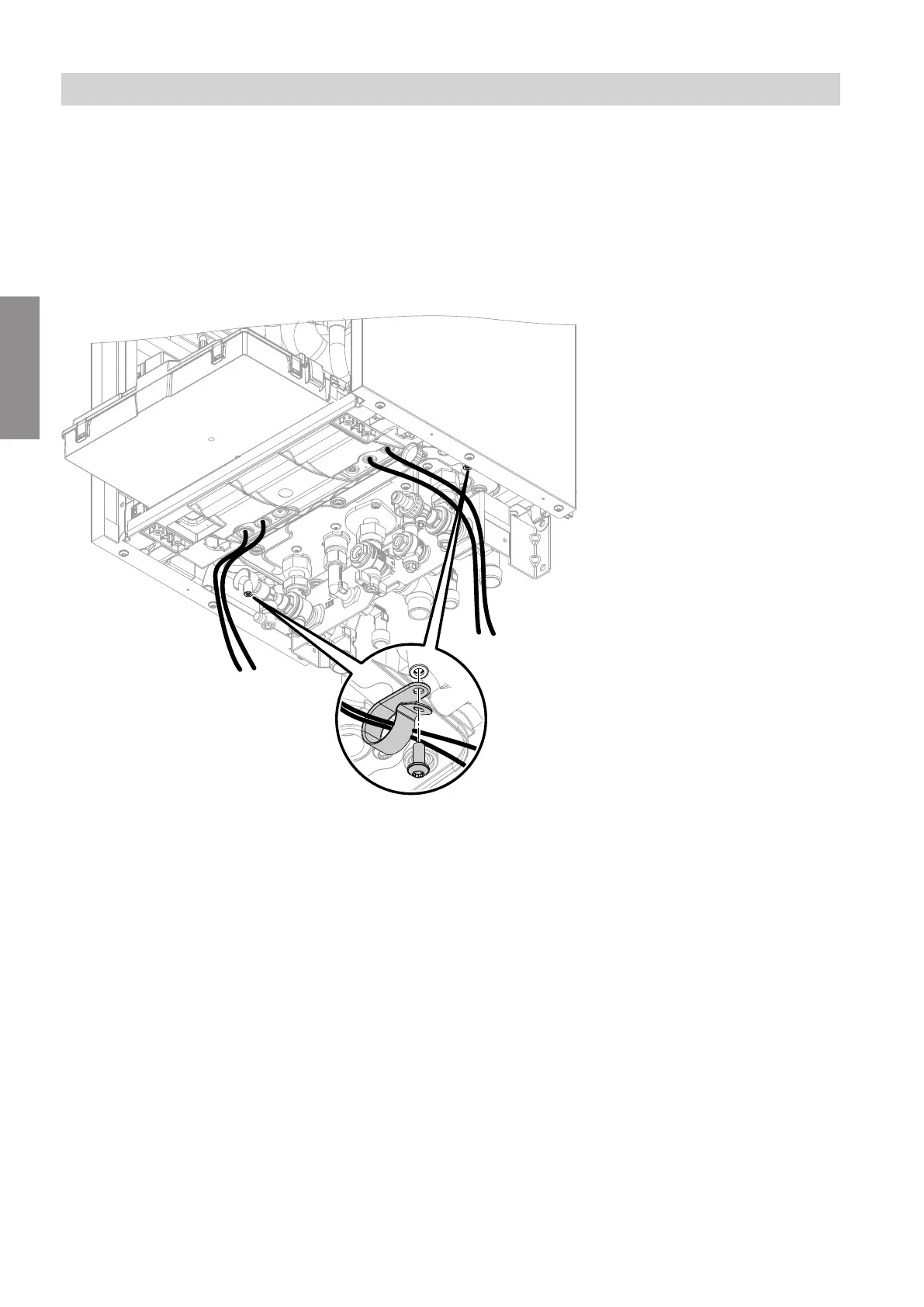

Fig. 23
Bundle cables using the supplied cable clips.
Route extra low voltage (ELV) leads < 42 V separately
from cables > 42 V/230 V~.
Secure the cable clips on the underside using the sup-
plied screws.
Do not route cables over sharp edges.
!
Please note
If connecting cables/leads come into contact
with hot components, they will be damaged.
When routing and securing cables/leads on site,
ensure that the maximum permissible tempera-
tures for these cables/leads are not exceeded.
Installation sequence
Electrical connections (cont.)
5593201
Installation
