Step Figure Description

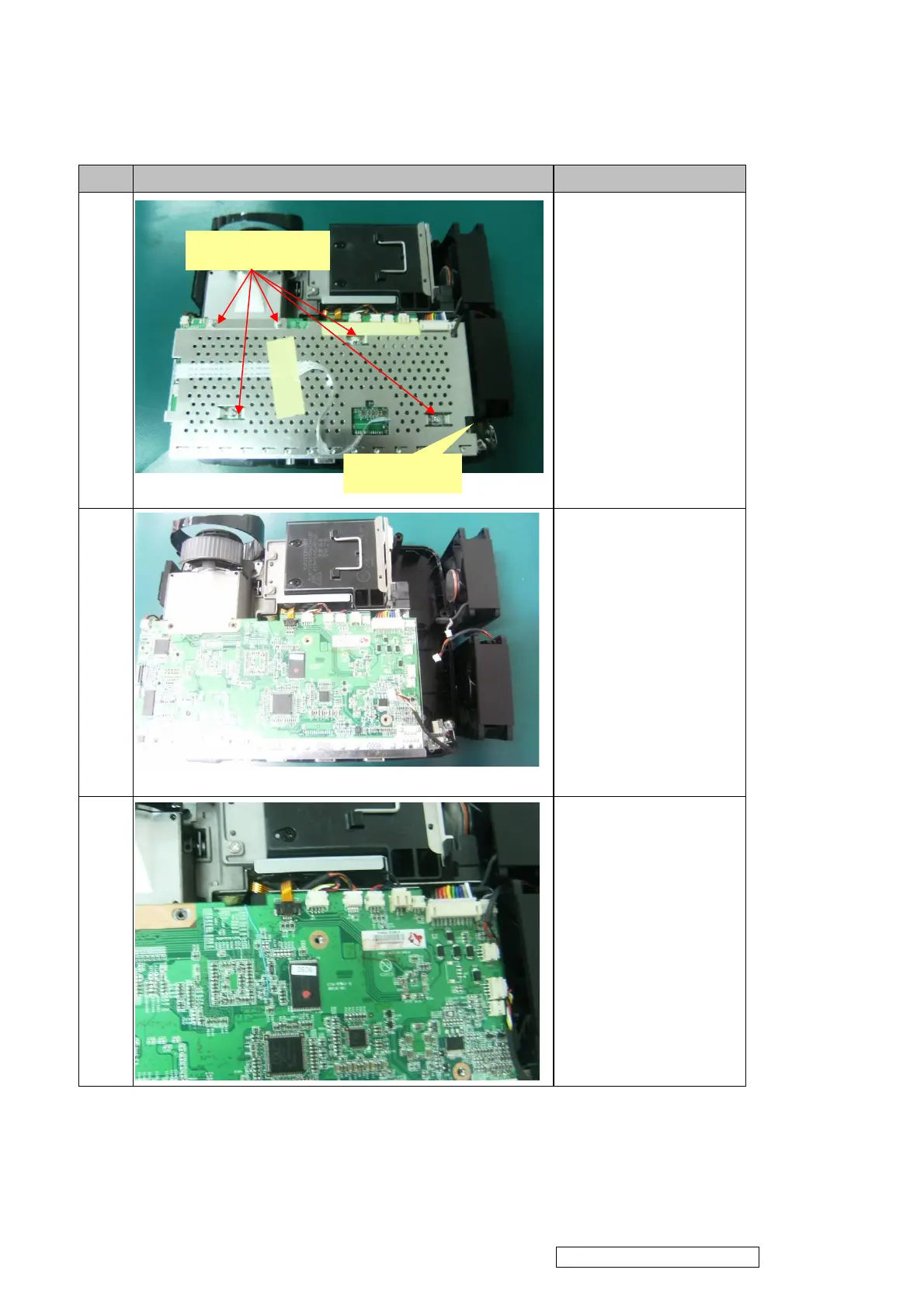

7
1. Remove the five screws
on the Main Board.
2. Remove the metal sheet of
Main Board.
Note: The Back IR wire is
connected to Main Board
through the hole on metal
sheet.
8
Remove the two Fan
Modules.
9
1. Show you what the
connector should be.
2. Remove all wires.
3. Remove the Main Board.
J1635-B853-0A*5
Back IR wire
FAN 1
FAN 2
