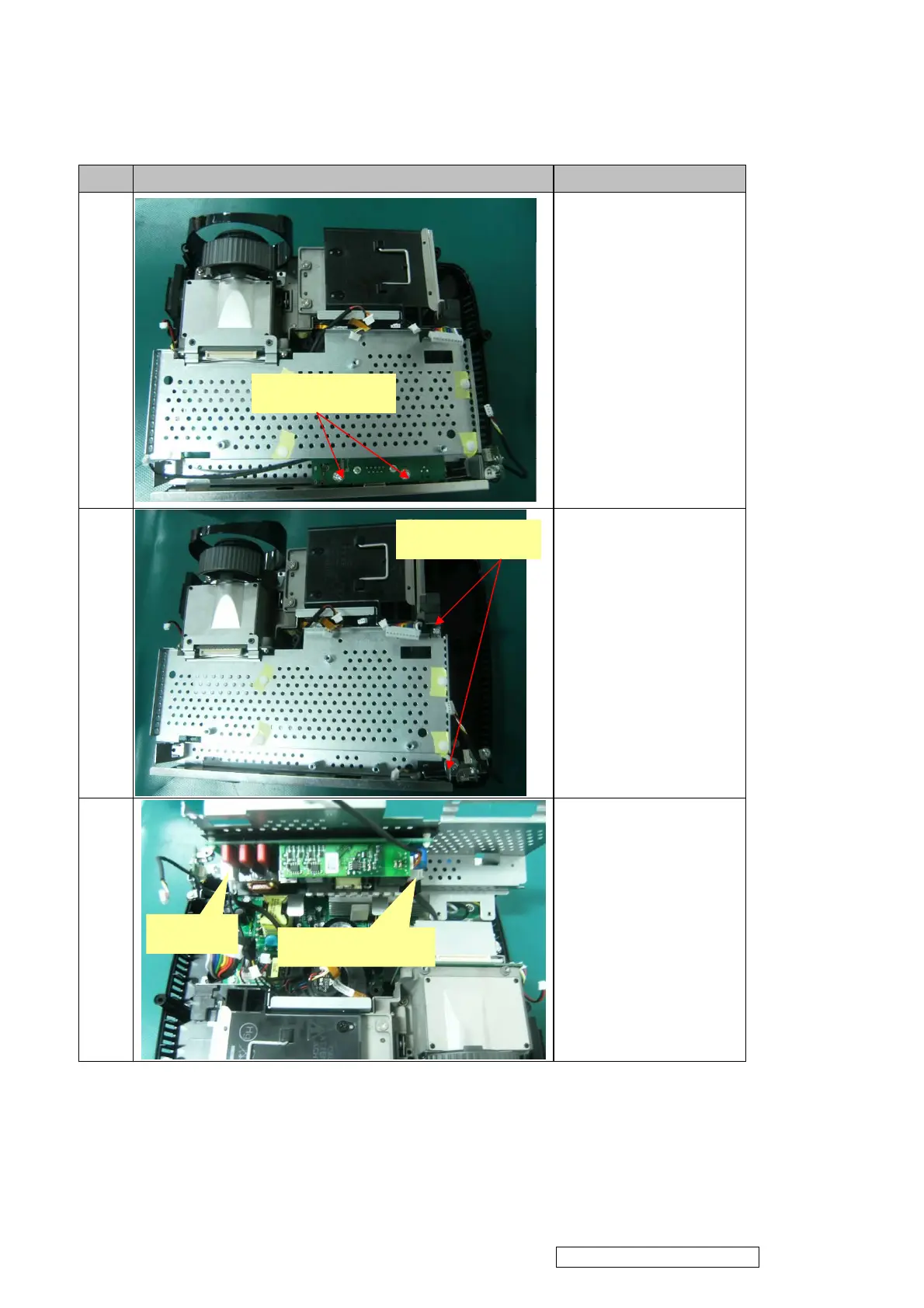

Step Figure Description
10
1. Loosen the two screw s as
shown and remove all wires
on RS232 Board.
2. Remove the RS232
Board.
11
Loosen the two screws as
shown to remove the metal
sheet of Ballast.
Note
Note: 2 wires have been
connected to Ballast.
Disconnect these 2 wires
before remove the metal
sheet.
J1635-B853-0A*2
J1635-B853-0A*2
To Lamp
To Power Board
