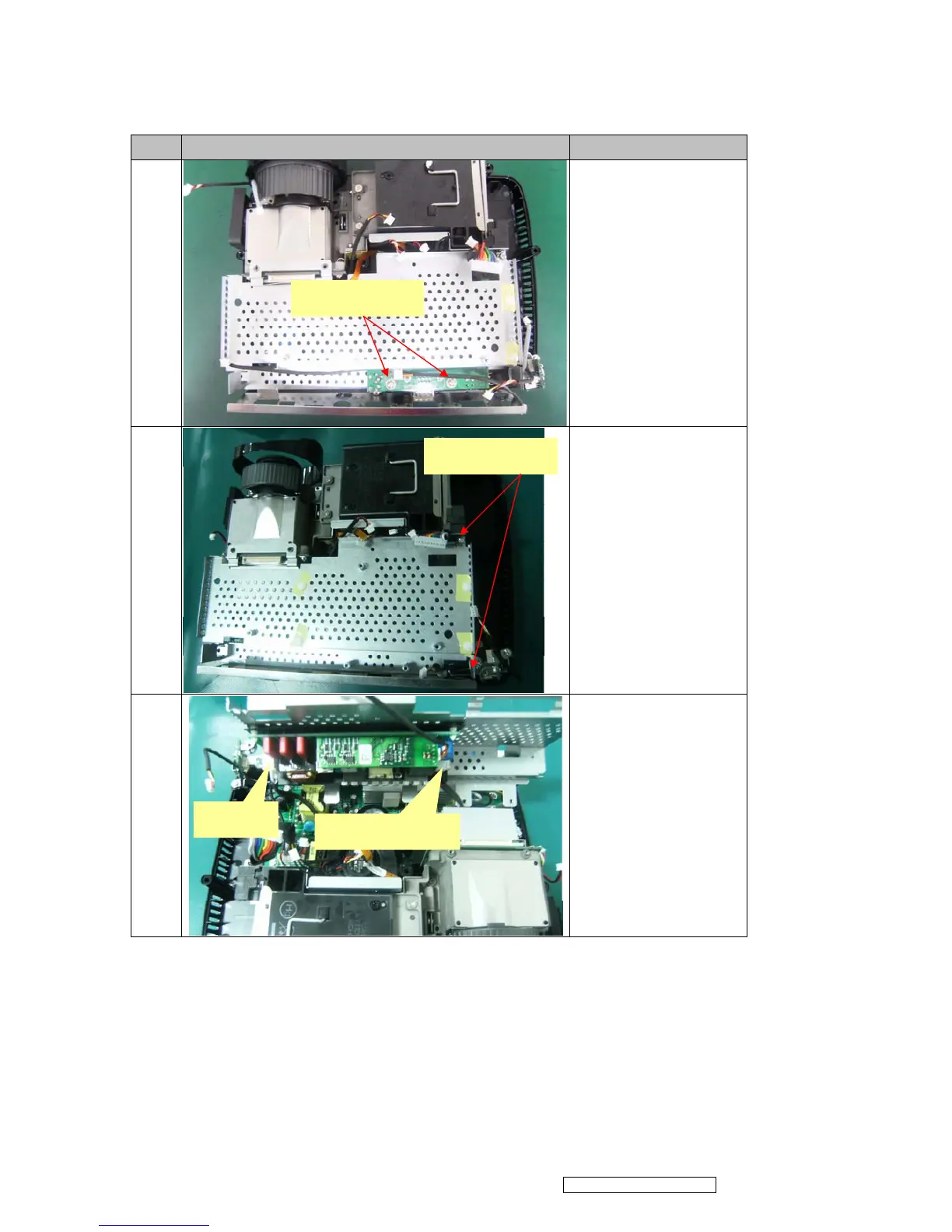

Step Figure Description
10
1. Loosen the two screws as
shown and remove all wires
on RS232 Board.
2. Remove the RS232
Board.
11
Loosen the two screws as
shown to remove the metal
sheet of Ballast.
Note
Note: 2 wires have been
connected to Ballast.
Disconnect these 2 wires
before remove the metal
sheet.
J1635-B853-0A*2
J1635-B853-0A*2
To Lamp
To Power Board
