ViewSonic PJD6531w - Page 25

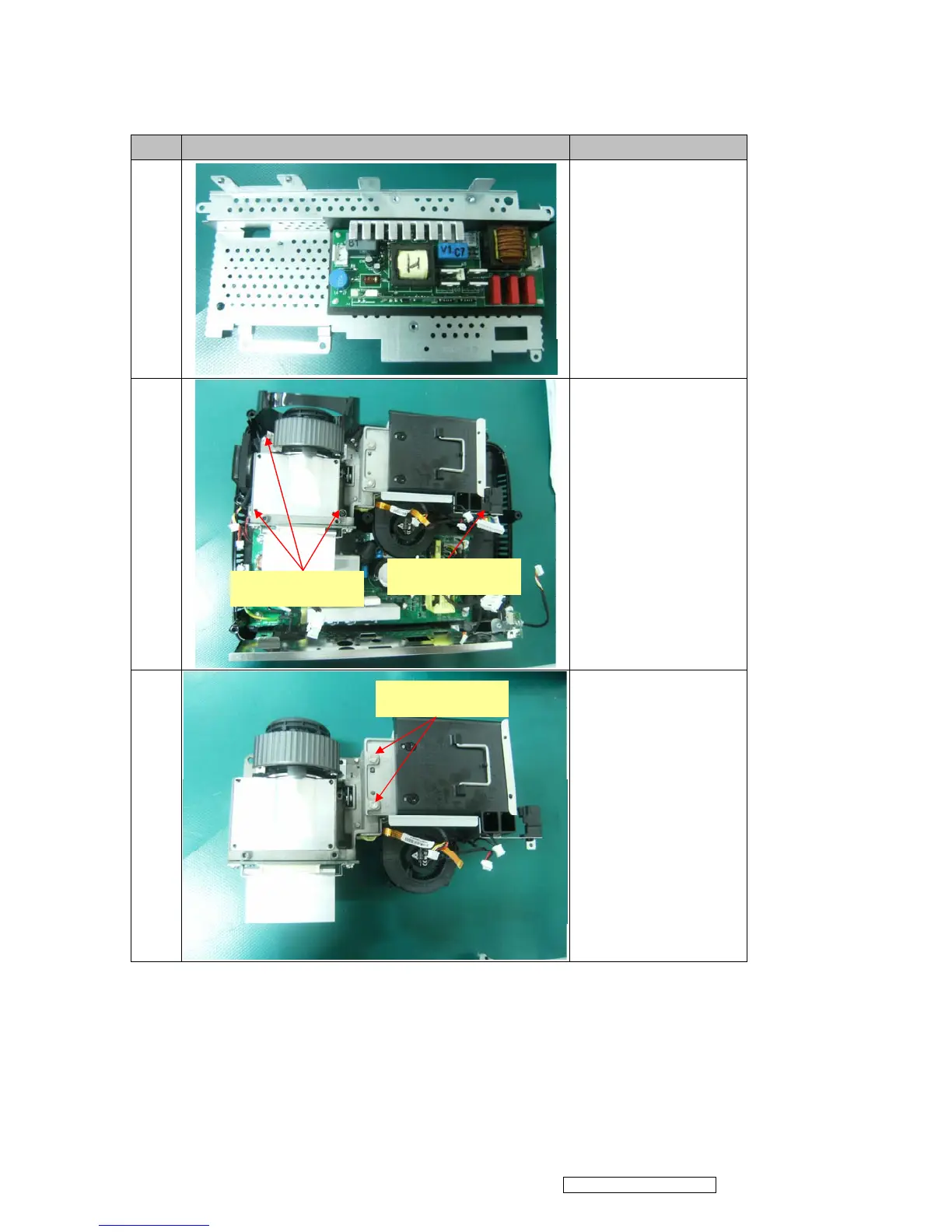

Step Figure Description
12
Release the four pillars by
Long Nose Nipper to remove
the Ballast.
13
1. Remove the screws on the
optical engine.
2. Remove the optical engine
module.
14
Loosen the two screws and
remove the lamp module
from optical engine.
Note: Those screws and
mesh are included in the
Lamp module.
J1635-A491-00*3
J1635-D311-00*2
J1635-3620-0A*1
