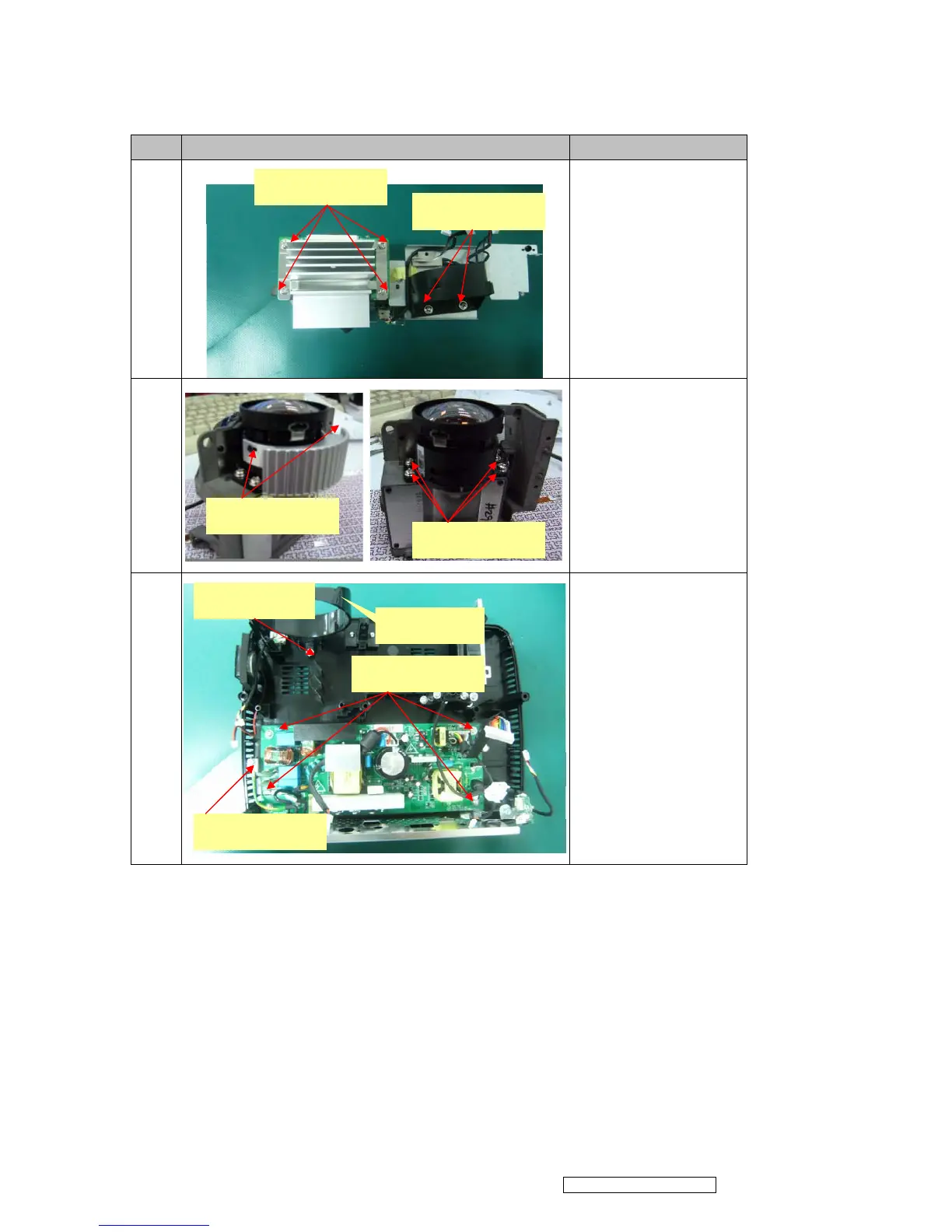

Step Figure Description
15
1. Loosen the two screws
on the OE Fan.
2. Remove the Fan.
3. Loosen the four screws
on DMD Board.
4. Remove the heat sink
and DMD Board.
16
1. Loosen the two screws
on the Zoom Ring.
2. Remove the Zoom Ring.
3. Loosen the four screws
on the Lens.
4. Remove the Lens
carefully.
17
1. Loosen the one screw and
remove the Lens Housing.
2. Loosen the screws on the
Power Board and then
remove the Power module
from Bottom Cover.
J1635-3660-00*2
J1635-3660-00*4
J1635-3620-0A
J1635-3620-0A*4
Lens Housing
J1635-D420-0A*1
J1635-D559-00*2
J1635-B730-0A*4
