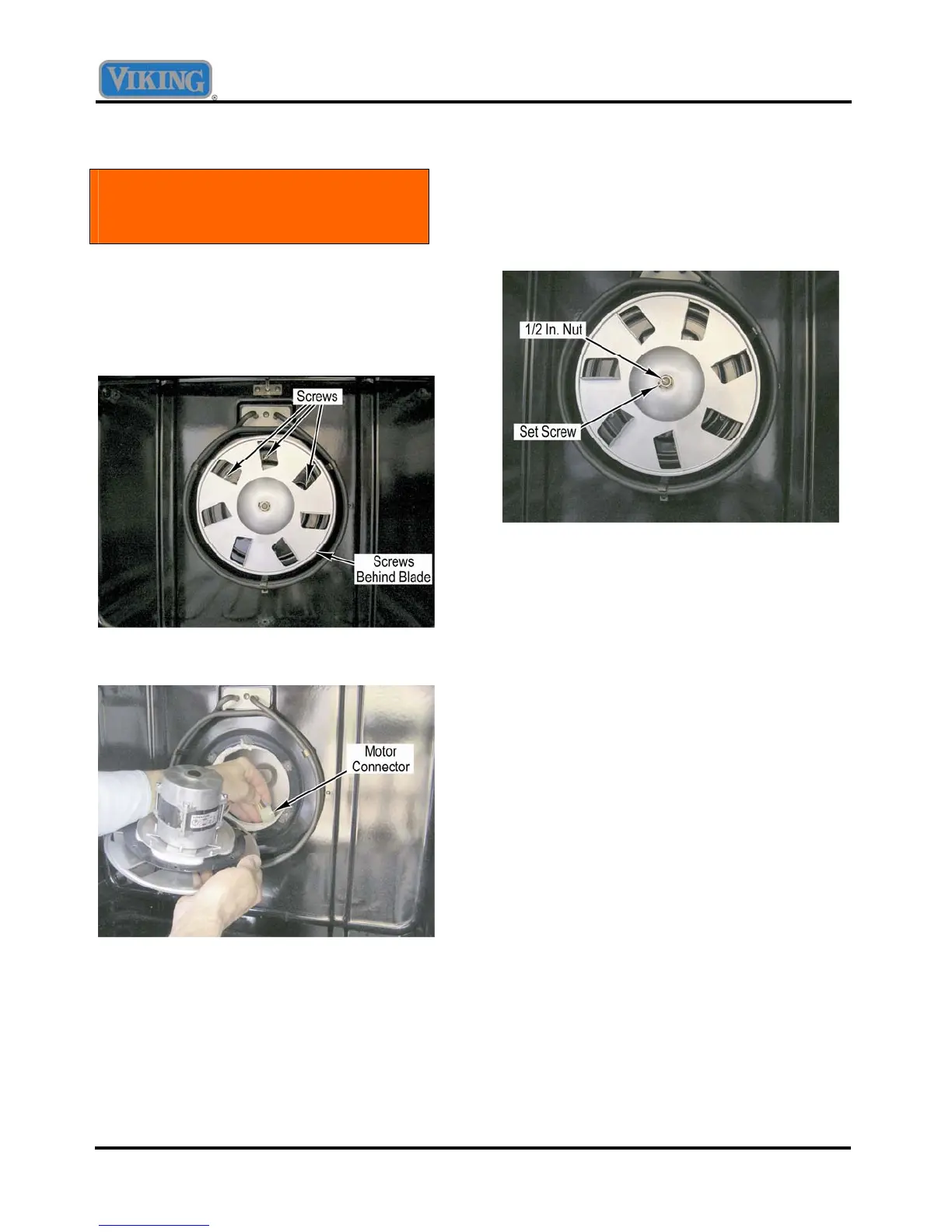

Convection Fan Motor Removal
WARNING: Disconnect power to oven
before servicing. Follow lockout/tagout
procedures.
Condition Requirements:
Convection Baffle Removed
1. Remove the six screws that hold the
convection fan assembly to the rear of the
oven liner.
2. Disconnect the convection fan motor wire
harness.
3. Reverse procedure for installation.
Convection Fan Blade Removal
Condition Requirements:
Convection Baffle Removed
1. Loosen the fan setscrew counterclockwise
two to three turns.
2. Remove the 1/2 inch nut from the fan.
3. Lift the fan blade from the fan motor
shaft.
NOTE
Upon reassembly, tighten the 1/2 inch fan nut
BEFORE tightening setscrew to the flat surface on
the fan motor shaft.
4. Reverse procedure for installation.
