Viking DEDO130SS - Strip Circuits and Schematics

53

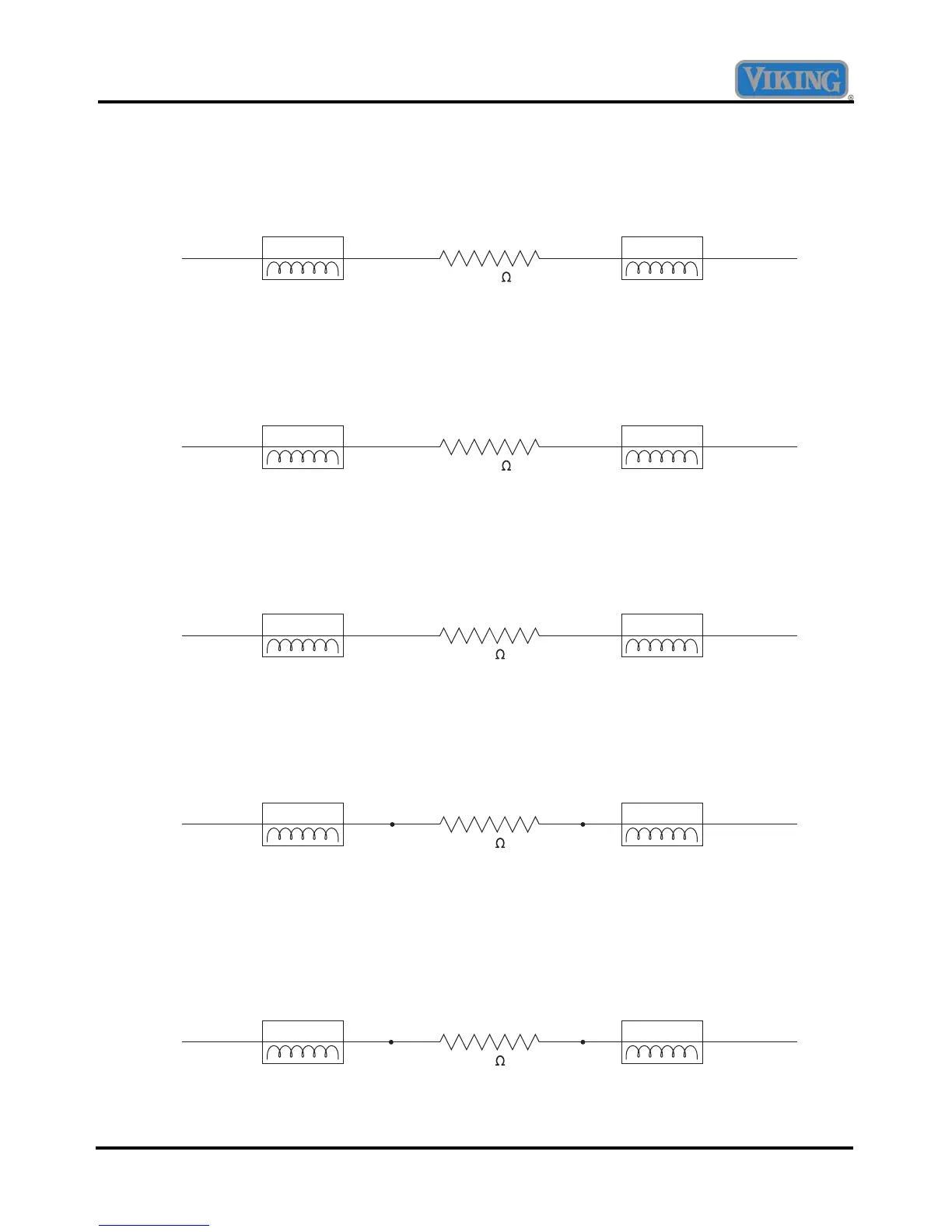

Strip Circuits and Schematics
CONVECTION ELEMENT
18.2
L1 L2
RED WHT
RELAY
K14
RELAY
K17
YEL BLK
Convection Element Strip Circuit
OUTER BROIL ELEMENT
30.2
L1 L2
RED GREY
RELAY
K13
RELAY
K17
YEL BLK
Outer Broil Element Strip Circuit
INNER BROIL ELEMENT
34
L1 L2
RED PURPLE
RELAY
K12
RELAY
K17
YEL BLK
Inner Broil Element Strip Circuit
OUTER BAKE ELEMENT
37.2
L1 L2
RED BLUE
RELAY
K11
RELAY
K17
BLKWHT YELWHT
Outer Bake Element Strip Circuit
INNER BAKE ELEMENT
37.8
L1 L2
RED ORG
RELAY
K10
RELAY
K17
WHT YEL BLKWHT
Inner Bake Element Strip Circuit
