Viking DEDO130SS - Safety Devices and Latch Mechanism Servicing

37

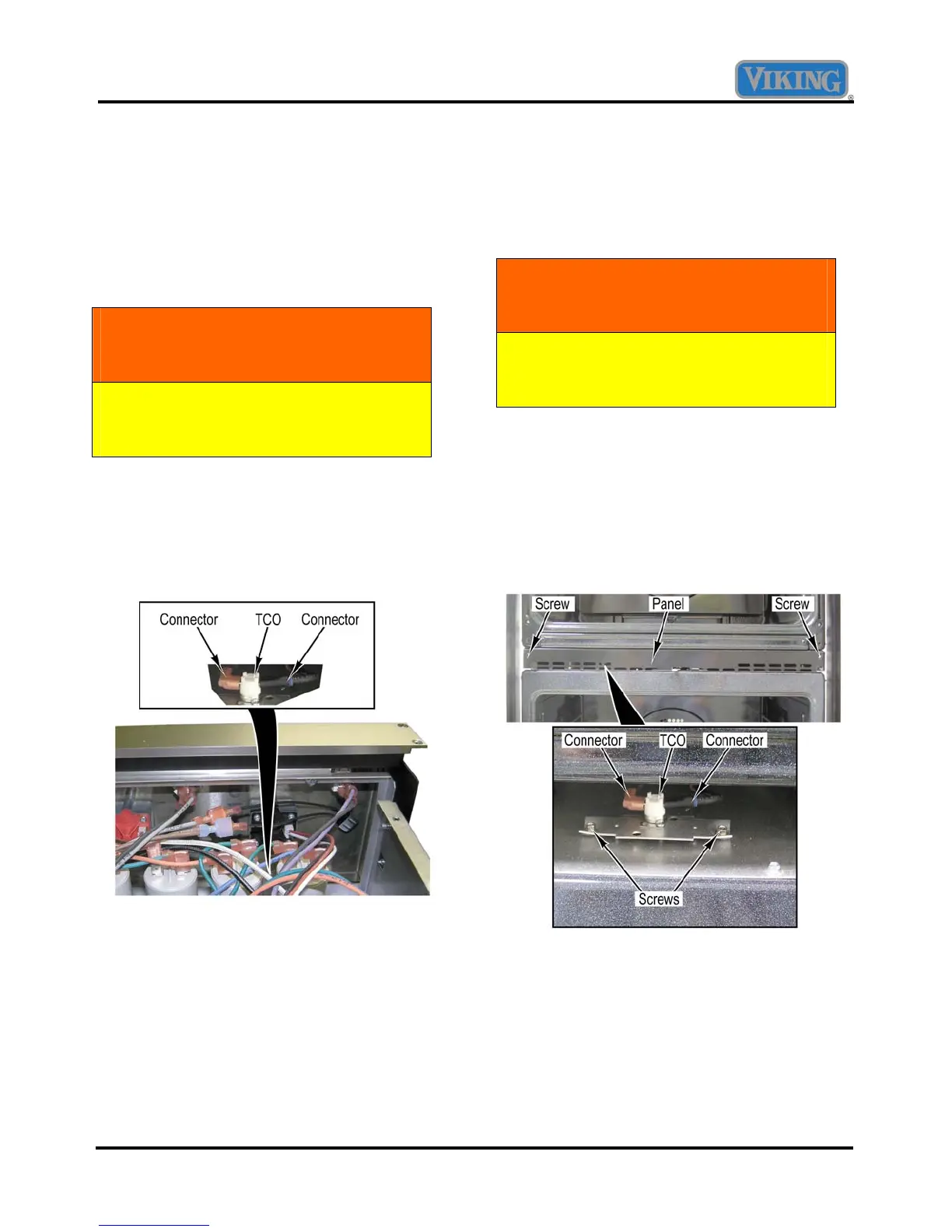

Thermal Cut-Out (TCO) Removal
Single Oven and Upper Double Oven
The Thermal Cut-Out (TCO) for the single oven
and upper double oven is located above the oven
cavity in front of the capacitors. It is used as a
safety device to prevent overheating of electrical
components.
WARNING: Disconnect power to oven
before servicing. Follow lockout/tagout
procedures.
CAUTION: Some areas of the oven
interior are sharp; wear protective gloves to
avoid injury.
Condition Requirements:
Partial Access to Control Components
1. Remove two screws from the upper oven
TCO.
2. Disconnect two connectors from the TCO.
3. Reverse procedure for installation.
Lower Double Oven
The Thermal Cut-Out (TCO) for the lower double
oven is located between the upper and lower oven
cavities. It is used as a safety device to prevent
overheating of electrical components
WARNING: Disconnect power to oven
before servicing. Follow lockout/tagout
procedures.
CAUTION: Some areas of the oven
interior are sharp; wear protective gloves to
avoid injury.
Condition Requirements:
Door Assembly Removed
1. Remove two screws and the lower door
latch access panel.
2. Remove two ¼ hex screws from the lower
oven TCO.
3. Disconnect two connectors from the TCO.
4. Reverse procedure for installation.
