Operation
Door Hinge Adjustment
Removal of the upper grill assembly allows access
to door hinge for adjustment.

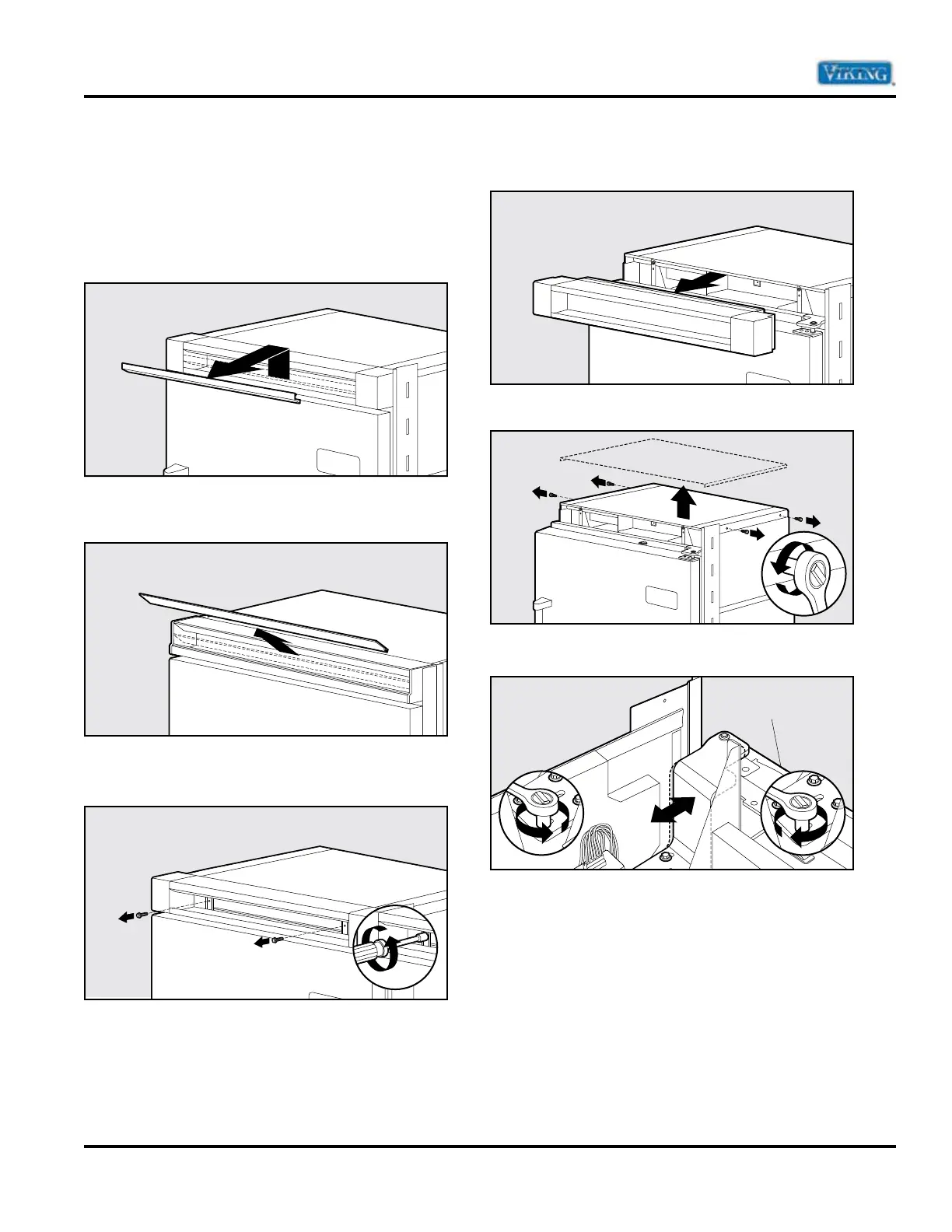

To remove upper grill:
1a. (Professional) Lift center grille louver up and
pull out.
1b. (Designer) Pull the center grille louver up at an
angle and pull out.
2. Using an 8” magnetic nut driver, remove the
two 1/4” screws.
3. Remove grille assembly.
4. Remove four side screws and remove unit top.
5. Loosen the four hinge screws. Adjust door.
6. Reverse procedure for reinstallation.
2
1
Front of unit
2
3
1
