Viking VCBB536 - Wiring and Schematics; High Voltage Board Wiring Details

© 2009 Viking Preferred Service
58
Service Diagnostics and Procedures

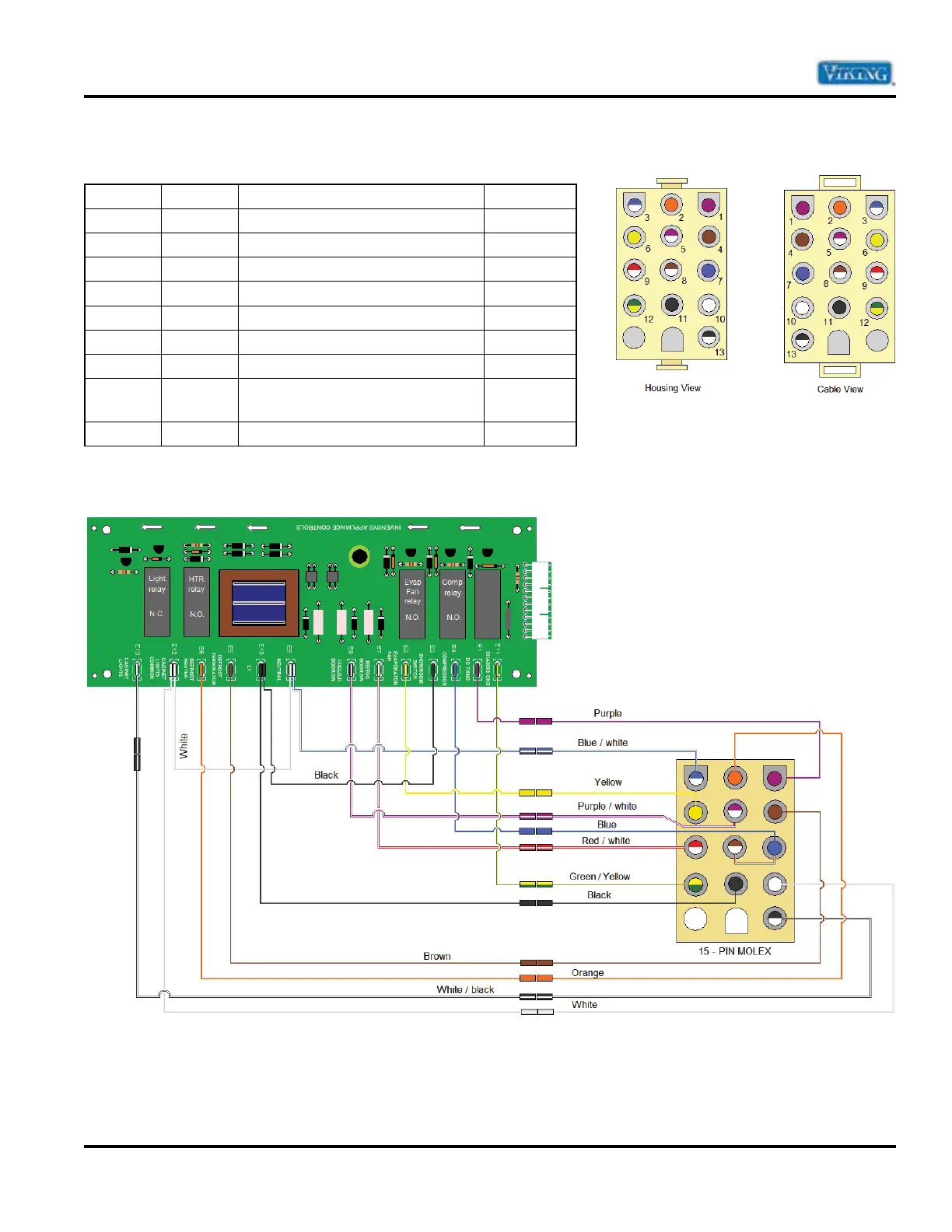

Wiring and Component testing–High Voltage Board
Terminal Terminal Description  - V
1 12 Fresh Food Fan 3.2 m
2 3 Defrost Heater 30.3 
10 8 Freezer Fan -120 VAC 28.0 
4 11 Defrost Bimetal 0 or ∞
5 * Line in from freezer door switch 0 or120 V
7 * Line out to Inverter board 0 or 120 V
8 * Line out to Condenser fan motor 0 or 120 V
9 * Line in from the fresh food
door switch
0 or 120 V
13 * Neutral OUT to cavity lights N/A
Chart for cable view layout
